430450800 Micro-Fit 3.0 by Molex

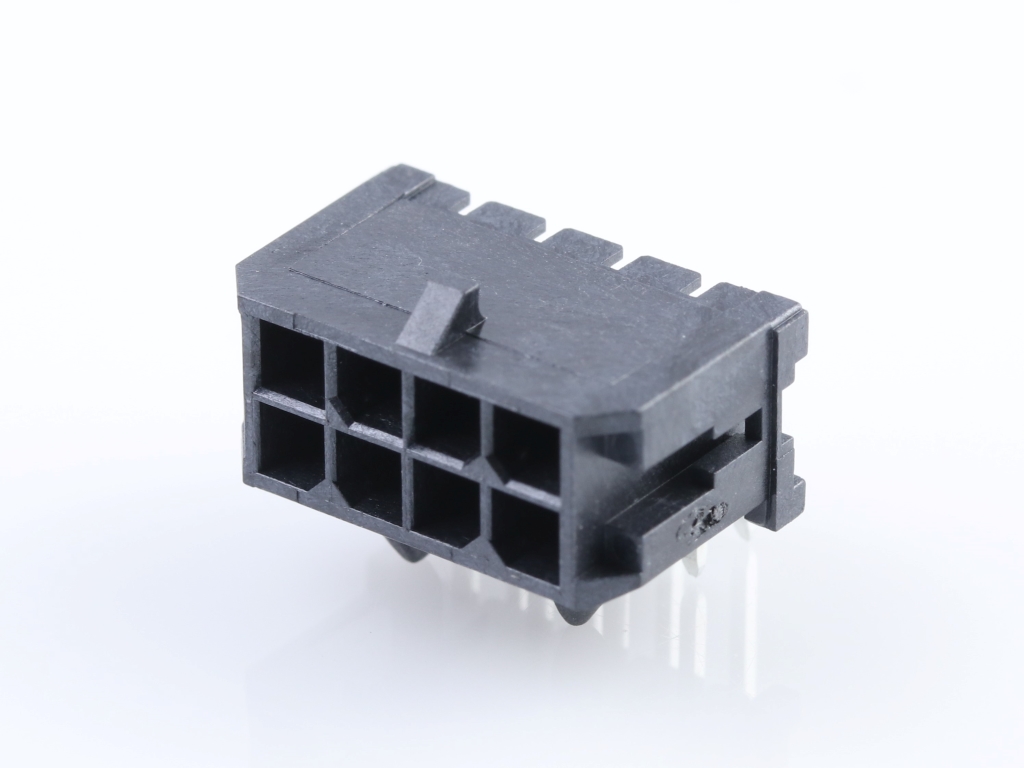

Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 8 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0800,
0430450800 |
Where to Buy
Prices starting from US$0.72
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.19
|
117,882
in stock
|
Buy Now |
|
Avnet America
from US$0.90
|
101,504
in stock
|
Buy Now |
|
TTI Europe
from US$0.90
|
27,840
in stock
|
Buy Now |
|
Rutronik
from US$0.80
|
15,840
in stock
|
Buy Now |
|
Heilind Americas
from US$0.77
|
10,401
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.72
|
10,080
in stock
|
Buy Now |
|
Newark Electronics
from US$1.20
|
8,469
in stock
|
Buy Now |
|
Sager
from US$0.73
|
6,616
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.98
|
2,620
in stock
|
Buy Now |
|
Conrad
from US$0.76
|
983
in stock
|
Buy Now |
|
TME
from US$0.94
|
869
in stock
|
Buy Now |
|
RS
from US$2.02
|
65
in stock
|
Buy Now |
|
Avnet Abacus
-
|
66,960
in stock
|
Buy Now |
|
Tongyida Electronic
-
|
7,200
in stock
|
Buy Now |
|
|
RS Americas
from US$1.58
|
0
in stock
|
Buy Now |
|
Compona
from US$0.72
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.88
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Walker Component Group
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 10.29mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.397/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN, R/A HEADER, 8POS, 2ROW, 3MM, TH | Farnell |
| Pin Header, Wire-to-Board, 3 mm, 2 Rows, 8 Contacts, Through Hole Right Angle | Avnet America |
| MICRO-FIT 3.0 HEADER | TTI Europe |
| 08P Micro-Fit Header 2 ROW 90° | Rutronik |
| MICROFIT 3.0 RA HDR W/TH DR TI | Heilind Americas |
| Connector, Header, 8Pos, 2Row, 3Mm | Newark Electronics |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X04P RA | Sager |
| MICRO-FIT 3.0 HDR 02X04P RA | TTI Americas |
| Molex Stiftgehäuse-Platine 430450800 1 St. | Conrad |
| Connector: wire-board | TME |
| Molex 43045-0800 PCB Header | RS |
| HEADER 2 ROW RIGHT-ANGLE SNAP-IN LOCK 8 PIN TIN PLATE SMT/GLOW WIRE COMPATIBLE | RS Americas |
| MOLEX 43045-0800 Header, Dual Row, 90°, 8p, Tin Plating Snap-in Peg PCB Lock, GW Compatible | Compona |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 430450800?
Additional datasheets, footprints and schematics for 430450800 are listed on our Part Details page. You can also find images and similar parts to 430450800 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 430450800 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 430450800 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 430450800 fall under?
The 430450800 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 430450800 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 430450800 you can contact the distributor directly for product support, shipping queries etc.
Is the 430450800 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 430450800 have stock available?
Authorised distributors including Farnell, Avnet America, TTI Europe, Rutronik and Heilind Americas have stock available or on a lead time for 430450800.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 430450800 often in real-time on the comparison pages.
What if I can't find stock of 430450800?
You can fill out our help required form which you can use to request a quote for 430450800 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
