430450813 Micro-Fit 3.0 by Molex

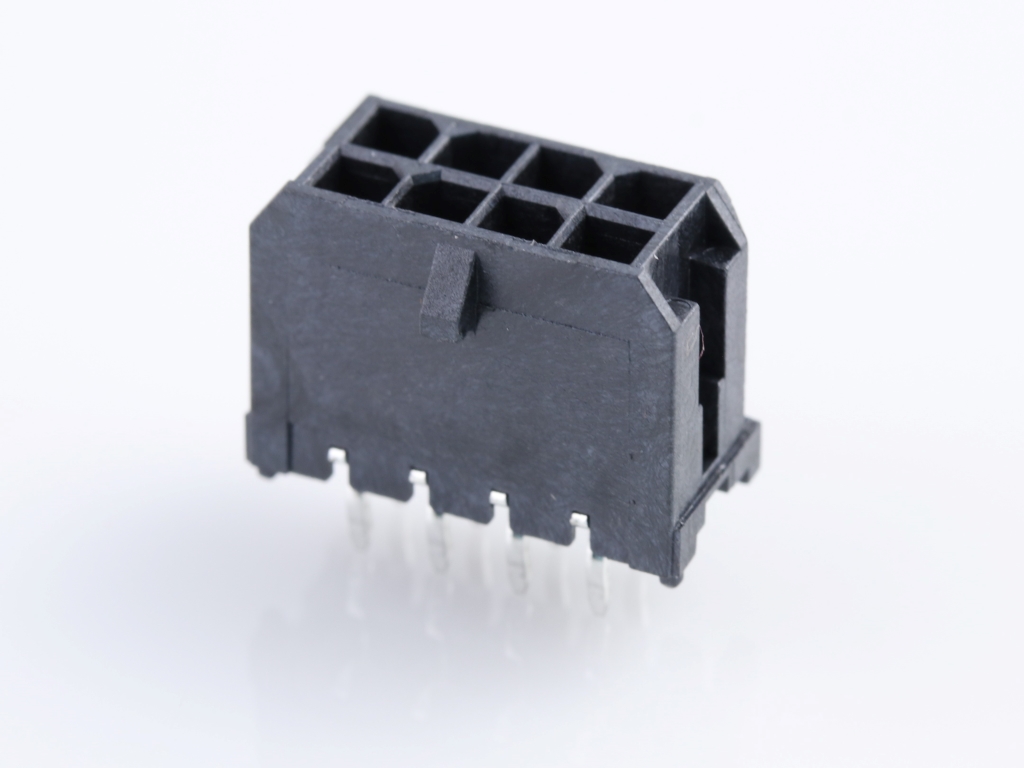

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 8 Circuits, with PCB Polarizing Peg, 0.38µm Gold Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0813,
0430450813 |
Where to Buy
Prices starting from US$0.71
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.71
|
20,774
in stock
|
Buy Now |
|
Conrad
from US$2.26
|
17,163
in stock
|
Buy Now |
|
Farnell
from US$1.26
|
15,448
in stock
|
Buy Now |
|
Newark Electronics
from US$1.14
|
14,428
in stock
|
Buy Now |
|
TTI Europe
from US$0.87
|
11,160
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.24
|
3,700
in stock
|
Buy Now |
|
RS
from US$2.76
|
606
in stock
|
Buy Now |
|
Offical Electronic
-
|
55
in stock
|
Buy Now |
|
Rutronik
from US$1.22
|
0
in stock
|
Buy Now |
|
TME
from US$1.48
|
0
in stock
|
Buy Now |
|
Compona
from US$0.96
|
0
in stock
|
Buy Now |
|
element14
from US$1.40
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.35
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.217/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICROFIT 3.0 VERT THRHOLE DR 1 | Heilind Americas |
| Molex Stiftgehäuse-Platine 430450813 1 St. | Conrad |
| CONN, HEADER, 8POS, 2ROW, 3MM, TH | Farnell |
| Microfit 3.0 Vert Thrhole Dr 15Au 8 Ckt Rohs Compliant: Yes |Molex 43045-0813 | Newark Electronics |
| 3.00MM PITCH MICRO-FIT | TTI Europe |
| Molex 43045-0813 PCB Header | RS |
| 08P Micro-Fit Header STRAIGHT AU | Rutronik |
| Connector: wire-board | TME |
| MOLEX 43045-0813 Header, Dual Row, 180°, PCB Peg, 8p 0.38µm Gold GW Compatible Kinked PC Tail | Compona |
| CONNECTOR, HEADER, 8POS, 2ROW, 3MM | element14 |
| MICRO-FIT 3.0 HDR 02X04P VT | TTI Asia |
