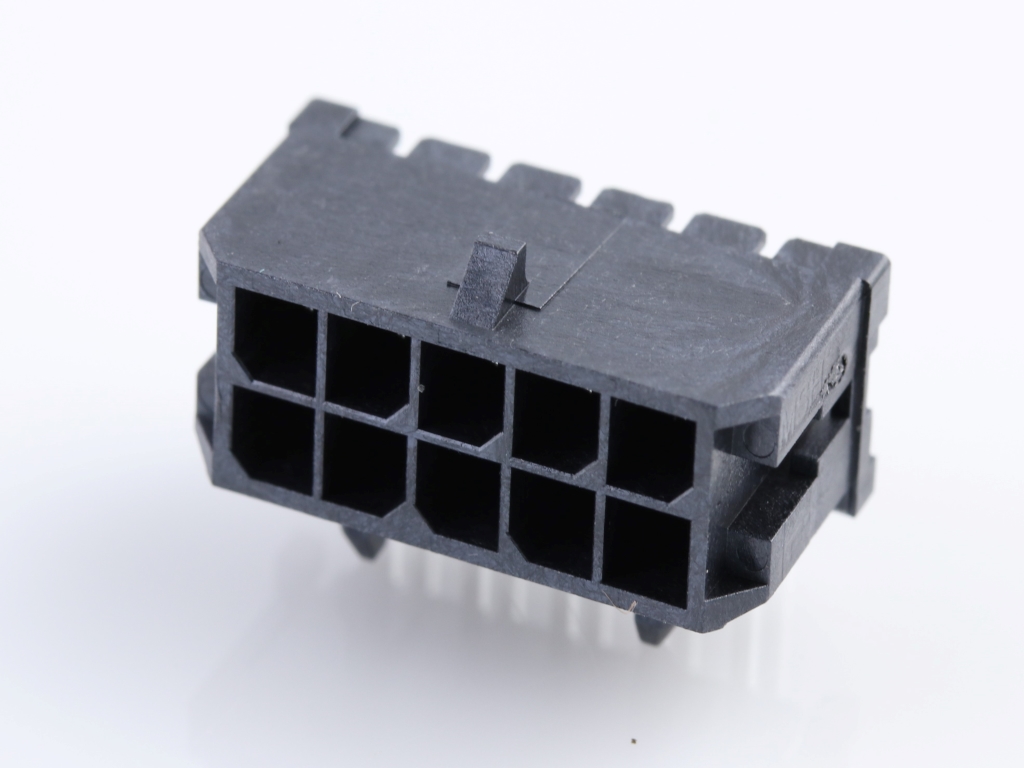

430451000 Micro-Fit 3.0 by Molex
Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 10 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-1000,
0430451000 |
Where to Buy
Prices starting from US$0.75
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.85
|
76,149
in stock
|
Buy Now |
|
Newark Electronics
from US$1.62
|
58,711
in stock
|
Buy Now |
|
Avnet America
from US$0.93
|
13,974
in stock
|
Buy Now |
|
Sager
from US$0.75
|
11,621
in stock
|
Buy Now |
|
Heilind Europe
from US$1.17
|
4,896
in stock
|
Buy Now |
|
TTI Americas
from US$0.88
|
3,196
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.87
|
2,550
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.86
|
1,418
in stock
|
Buy Now |
|
RS
from US$2.48
|
1,260
in stock
|
Buy Now |
|
|
RS Americas
from US$0.91
|
631
in stock
|
Buy Now |
|
TME
from US$1.04
|
565
in stock
|
Buy Now |
|
Conrad
from US$2.67
|
327
in stock
|
Buy Now |
|
Avnet Abacus
-
|
2,448
in stock
|
Buy Now |
|
Tongyida Electronic
-
|
1,224
in stock
|
Buy Now |
|
Rutronik
from US$1.10
|
0
in stock
|
Buy Now |
|
Compona
from US$0.80
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.88
|
0
in stock
|
Buy Now |
|
EME
from US$1.09
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
|
Walker Component Group
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 10.29mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.677/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN, R/A HEADER, 10POS, 2ROW, 3MM, TH | Farnell |
| Connector, Header, 10Pos, 2Row, 3Mm | Newark Electronics |
| Pin Header, Power, Wire-to-Board, 3 mm, 2 Rows, 10 Contacts, Through Hole Right Angle | Avnet America |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X05P RA | Sager |
| MICROFIT 3.0 RA HDR W/TH DR TI | Heilind Europe |
| MICRO-FIT 3.0 HDR 02X05P RA | TTI Americas |
| MICRO-FIT 3.0 HEADER | TTI Europe |
| Molex 43045-1000 PCB Header | RS |
| HEADER 2 ROW RIGHT-ANGLE SNAP-IN LOCK 10 PIN TIN PLATE SMT/GLOW WIRE COMPATIBLE | RS Americas |
| Connector: wire-board | TME |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 10 Rastermaß: 3 mm 430451000 1 St. Tray | Conrad |
| 10P Micro-Fit Header 2 ROW 90° | Rutronik |
| MOLEX 43045-1000 Header, Dual Row, 90°, 10p, Tin Plating Snap-in Peg PCB Lock, GW Compatible | Compona |
