430451206 Micro-Fit 3.0 by Molex

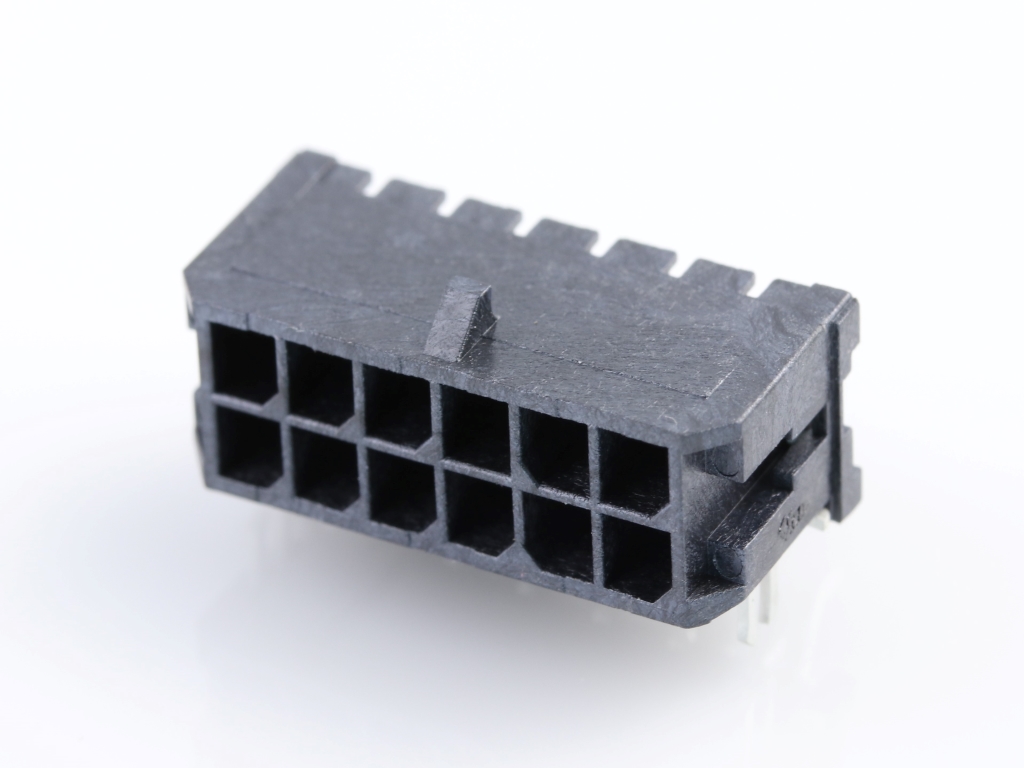

Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 12 Circuits, with PCB Press-fit Metal Retention Clip, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-1206,
0430451206 |
Where to Buy
Prices starting from US$1.83
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.52
|
2,000
in stock
|
Buy Now |
|
Farnell
from US$3.18
|
2,000
in stock
|
Buy Now |
|
Newark Electronics
from US$3.26
|
1,200
in stock
|
Buy Now |
|
TTI Americas
from US$2.52
|
200
in stock
|
Buy Now |
|
TME
from US$2.44
|
188
in stock
|
Buy Now |
|
Avnet Abacus
-
|
1,000
in stock
|
Buy Now |
|
RS
from US$3.33
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.87
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.90
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.99
|
0
in stock
|
Buy Now |
|
Sager
from US$2.64
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.59
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.83
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.99
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 10.29mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.873/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 12 Rastermaß: 3 mm 430451206 1 St. Tape on Full reel | Conrad |
| CONN, R/A HEADER, 12POS, 2ROW, 3MM, SMT | Farnell |
| Wtb Conn, Header, 12Pos, 2Row, 3Mm | Newark Electronics |
| MICRO-FIT 3.0 HDR 02X06P RA | TTI Americas |
| Connector: wire-board | TME |
| Conn Shrouded Header 12 POS 3mm Solder RA Surface Mount | Avnet Abacus |
| Molex 43045-1206 Header | RS |
| MICROFIT 3.0 RA SMT/CLIP DR TIN 12 CKT | RS Americas |
| MICRO-FIT 3.0 HEADER SMT 12CIR | TTI Europe |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X06P RA | Sager |
| MICROFIT 3.0 RA SMT/CLIP DR T N 12 CKT | Heilind Americas |
