430451211 Micro-Fit 3.0 by Molex

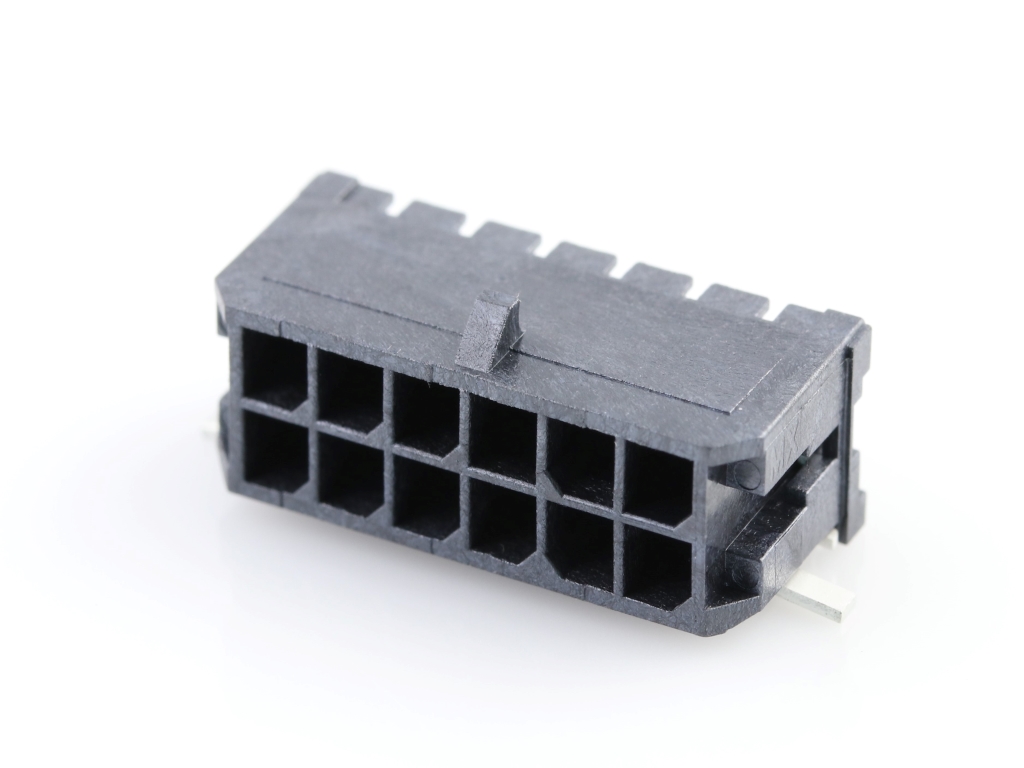

Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 12 Circuits, with Solder Tab, 0.76µm Gold Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-1211,
0430451211 |
Where to Buy
Prices starting from US$2.45
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$7.80
|
11,320
in stock
|
Buy Now |
|
Farnell
from US$3.94
|
10,200
in stock
|
Buy Now |
|
Newark Electronics
from US$4.08
|
5,600
in stock
|
Buy Now |
|
TTI Americas
from US$2.45
|
4,200
in stock
|
Buy Now |
|
Heilind Americas
from US$3.01
|
900
in stock
|
Buy Now |
|
RS
from US$5.52
|
83
in stock
|
Buy Now |
|
Avnet Abacus
-
|
1,400
in stock
|
Buy Now |
|
Avnet America
from US$2.56
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.26
|
0
in stock
|
Buy Now |
|
Compona
from US$3.64
|
0
in stock
|
Buy Now |
|
element14
from US$3.91
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.19
|
0
in stock
|
Buy Now |
|
EME
from US$4.19
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 10.29mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.877/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 12 Rastermaß: 3.00 mm 430451211 1 St. Tape on Full reel | Conrad |
| CONN, R/A HEADER, 12POS, 2ROW, 3MM, SMT | Farnell |
| Microfit 3.0 Ra Smt/Nail Dr 30Au 12 Ckt Rohs Compliant: Yes |Molex 43045-1211 | Newark Electronics |
| MICRO-FIT 3.0 HDR 02X06P RA | TTI Americas |
| MICROFIT 3.0 RA SMT/NAIL DR 3 AU 12 CKT | Heilind Americas |
| Molex 43045-1211 PCB Header | RS |
| Pin Header, Power, Wire-to-Board, 3 mm, 2 Rows, 12 Contacts, Surface Mount Right Angle | Avnet Abacus |
| MICROFIT 3.0 RA SMT/NAIL DR 30AU 12 CKT | RS Americas |
| MOLEX 43045-1211 Header SMT Dual Row 90° 12p 0.76µm Gold Solder Tab, GW Compatible | Compona |
| CONNECTOR, HEADER, 12POS, 2ROW, 3MM | element14 |
