430451212 Micro-Fit 3.0 by Molex

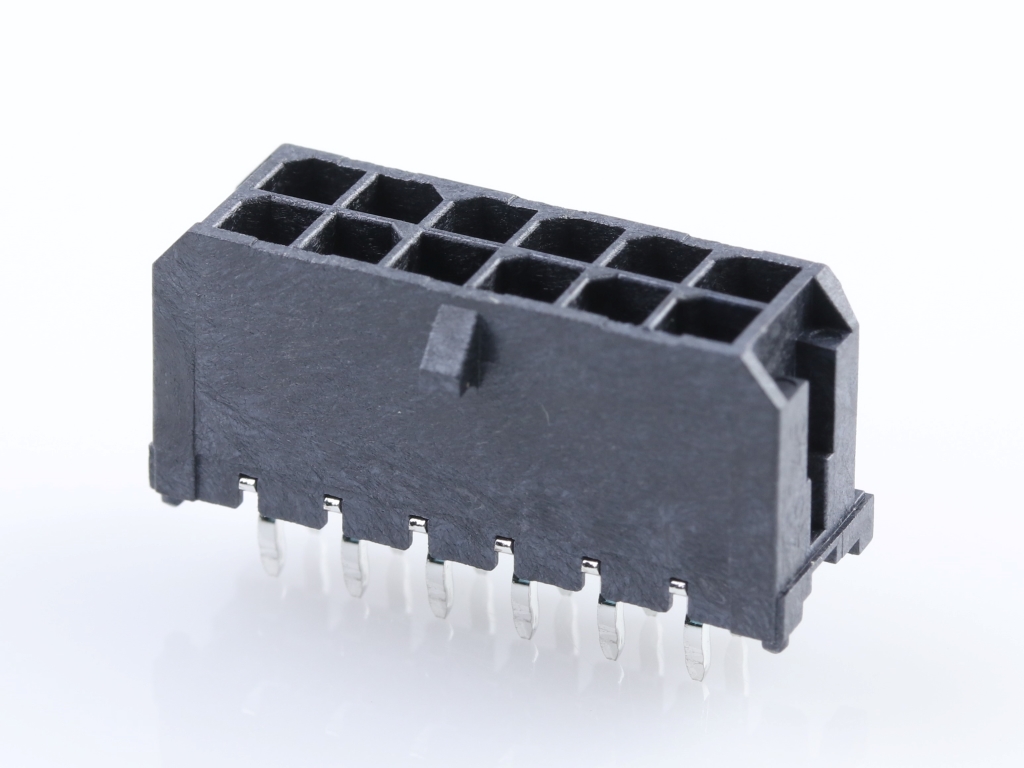

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 12 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-1212,
0430451212 |
Where to Buy
Prices starting from US$0.80
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.43
|
223,259
in stock
|
Buy Now |
|
TTI Europe
from US$1.01
|
14,280
in stock
|
Buy Now |
|
element14
from US$1.15
|
6,856
in stock
|
Buy Now |
|
Newark Electronics
from US$1.42
|
6,179
in stock
|
Buy Now |
|
Heilind Americas
from US$0.89
|
2,184
in stock
|
Buy Now |
|
RS
from US$2.07
|
1,937
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.14
|
1,680
in stock
|
Buy Now |
|
TME
from US$0.95
|
1,506
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.91
|
1,008
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.92
|
220
in stock
|
Buy Now |
|
Conrad
from US$1.13
|
220
in stock
|
Buy Now |
|
EME
from US$1.07
|
10
in stock
|
Buy Now |
|
Rutronik
-
|
11,952
in stock
|
Buy Now |
|
Compona
from US$0.80
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Through Hole |
| Net Weight | 1.698/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Pitch Termination Interface | 3.00mm |
| Plating Min Mating | 0.254µm |
| Plating Min Termination | 1.520µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN, HEADER, 12POS, 2ROW, 3MM, TH | Farnell |
| MICRO-FIT 3.0 HEADER 12CT | TTI Europe |
| CONNECTOR, HEADER, 12POS, 2ROW, 3MM | element14 |
| Conn, Header, 12Pos, 2Row, 3Mm | Newark Electronics |
| MICROFIT 3.0 VERT THRHOLE DR H | Heilind Americas |
| Molex 43045-1212 PCB Header | RS |
| Connector: wire-board | TME |
| MICRO-FIT 3.0 HDR 02X06P VT | TTI Asia |
| Molex 430451212 Micro-fit 3.0 Header 3mm Pitch 12 Pin Dual Row Black | Rapid Electronics |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 12 Rastermaß: 3 mm 430451212 1 St. Tray | Conrad |
| 12P Micro-Fit Header 2 ROW TIN 90° | Rutronik |
| MOLEX 43045-1212 Header, Dual Row, 180°, PCB Peg, 12p Tin Plating GW Compatible Kinked PC Tail | Compona |
