430451220 Micro-Fit 3.0 by Molex

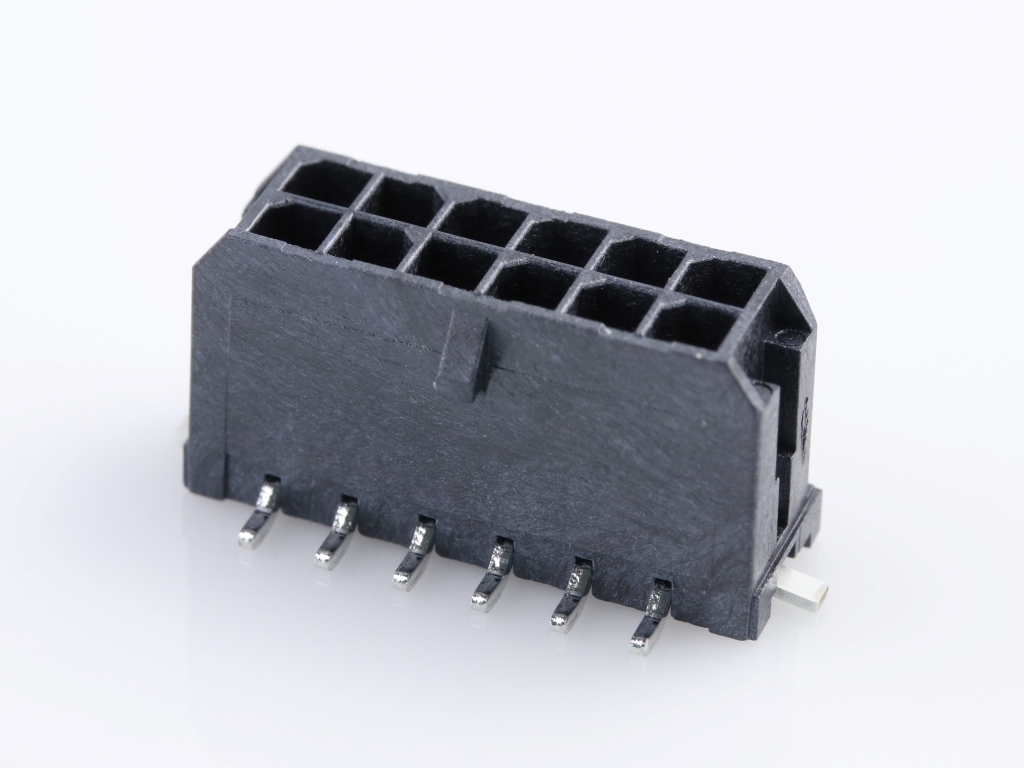

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 12 Circuits, with Solder Tab, 0.76µm Gold Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-1220,
0430451220 |
Where to Buy
Prices starting from US$1.98
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.82
|
54,200
in stock
|
Buy Now |
|
Farnell
from US$5.09
|
48,780
in stock
|
Buy Now |
|
Newark Electronics
from US$3.53
|
2,800
in stock
|
Buy Now |
|
Avnet America
from US$2.95
|
2,800
in stock
|
Buy Now |
|
Rutronik
from US$2.13
|
1,000
in stock
|
Buy Now |
|
TTI Europe
from US$3.32
|
400
in stock
|
Buy Now |
|
RS
from US$3.90
|
0
in stock
|
Buy Now |
|
TME
from US$2.35
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$6.42
|
0
in stock
|
Buy Now |
|
Compona
from US$2.26
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$3.72
|
0
in stock
|
Buy Now |
|
Sager
from US$4.26
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.98
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$3.85
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.922/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 12 Rastermaß: 3 mm 430451220 1 St. Tape on Full reel | Conrad |
| CONN, HEADER, 12POS, 2ROW, 3MM, SMT | Farnell |
| Connector, Header, 12 Position, 3Mm | Newark Electronics |
| Conn Wire to Board HDR 12 POS 3mm Solder ST SMD T/R | Avnet America |
| 12P Micro-Fit Header W SOLDERTAB | Rutronik |
| MICROFIT 3.0 HEADER 12CIRCUITS | TTI Europe |
| Molex 43045-1220 PCB Header | RS |
| Connector: wire-board | TME |
| HEADER 3.00MM, SMT, DUAL ROW, VERT, 12W | RS Americas |
| MOLEX 43045-1220 Header SMT Dual Row 180° 12p 0.76µm Gold Solder Tab, GW Compatible | Compona |
| MICRO-FIT 3.0 HDR 02X06P VT | TTI Americas |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X06P VT | Sager |
| MICROFIT 3.0 V HDR /NAIL DR 3 AU 12CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 430451220?
Additional datasheets, footprints and schematics for 430451220 are listed on our Part Details page. You can also find images and similar parts to 430451220 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 430451220 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 430451220 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 430451220 fall under?
The 430451220 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 430451220 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 430451220 you can contact the distributor directly for product support, shipping queries etc.
Is the 430451220 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 430451220 have stock available?
Authorised distributors including Conrad, Farnell, Newark Electronics, Avnet America and Rutronik have stock available or on a lead time for 430451220.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 430451220 often in real-time on the comparison pages.
What if I can't find stock of 430451220?
You can fill out our help required form which you can use to request a quote for 430451220 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
