430451402 Micro-Fit 3.0 by Molex

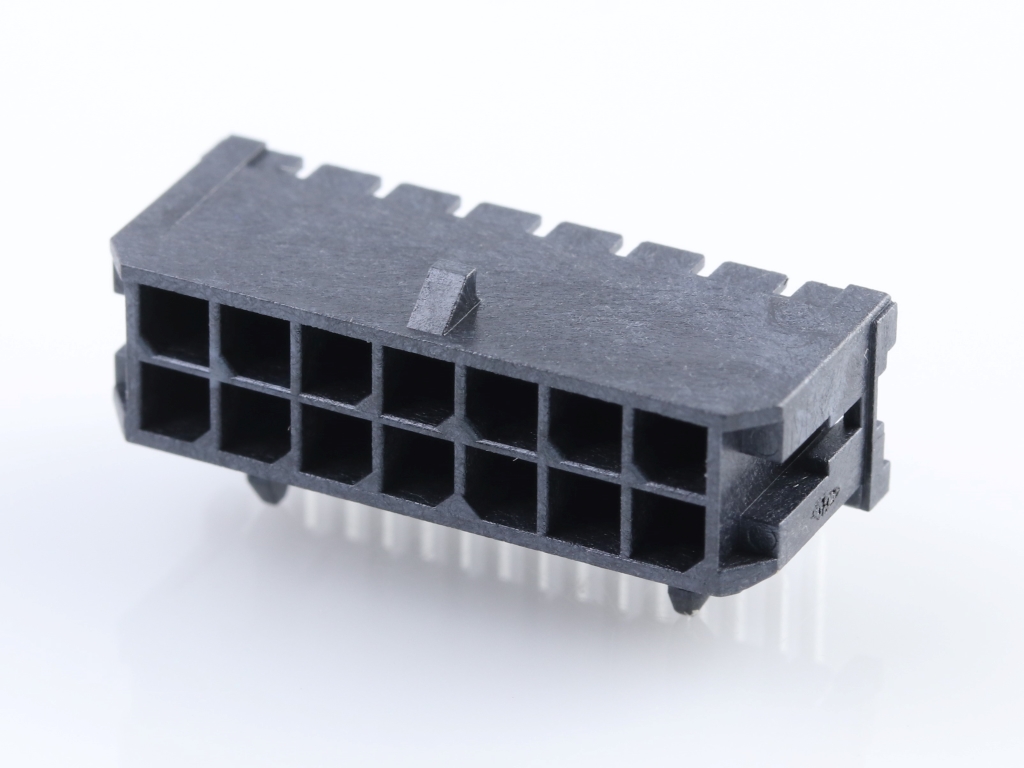

Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 14 Circuits, with Snap-in Plastic Peg PCB Lock, 0.76µm Gold Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-1402,
0430451402 |
Where to Buy
Prices starting from US$1.77
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$2.08
|
4,134
in stock
|
Buy Now |
|
Heilind Americas
from US$1.77
|
2,573
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.78
|
2,158
in stock
|
Buy Now |
|
Newark Electronics
from US$4.19
|
936
in stock
|
Buy Now |
|
TME
from US$2.85
|
936
in stock
|
Buy Now |
|
Farnell
from US$3.16
|
876
in stock
|
Buy Now |
|
Rutronik
from US$2.46
|
0
in stock
|
Buy Now |
|
RS
from US$9.66
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.21
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.23
|
0
in stock
|
Buy Now |
|
Compona
from US$2.31
|
0
in stock
|
Buy Now |
|
element14
from US$2.84
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.25
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 14 |
| Circuits Maximum | 14 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 10.29mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.231/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HEADER SMT | TTI Europe |
| MICROFIT 3.0 RA HDR W/TH DR 3 AU 14CKT | Heilind Americas |
| MICRO-FIT 3.0 HDR 02X07P RA | TTI Americas |
| Plug & Socket Connector, Header, 14 Position, 3Mm | Newark Electronics |
| Connector: wire-board | TME |
| CONN, R/A HEADER, 14POS, 2ROW, 3MM, TH | Farnell |
| 02P Micro-Fit Header 3.00MM | Rutronik |
| Molex 43045-1402 PCB Header | RS |
| Pin Header, Power, Wire-to-Board, 3 mm, 2 Rows, 14 Contacts, Through Hole Right Angle | Avnet America |
| HEADER,2 ROW, RIGHT-ANGLE, SNAP-IN LOCK,14 PIN, SMT/GLOW WIRE COMPATIBLE, GOLD PLATE | RS Americas |
| MOLEX 43045-1402 Header, Dual Row, 90°, 14p, 0.76µm Gold Snap-in Peg PCB Lock, GW Compatible | Compona |
| CONNECTOR, HEADER, 14POS, 2ROW, 3MM | element14 |
