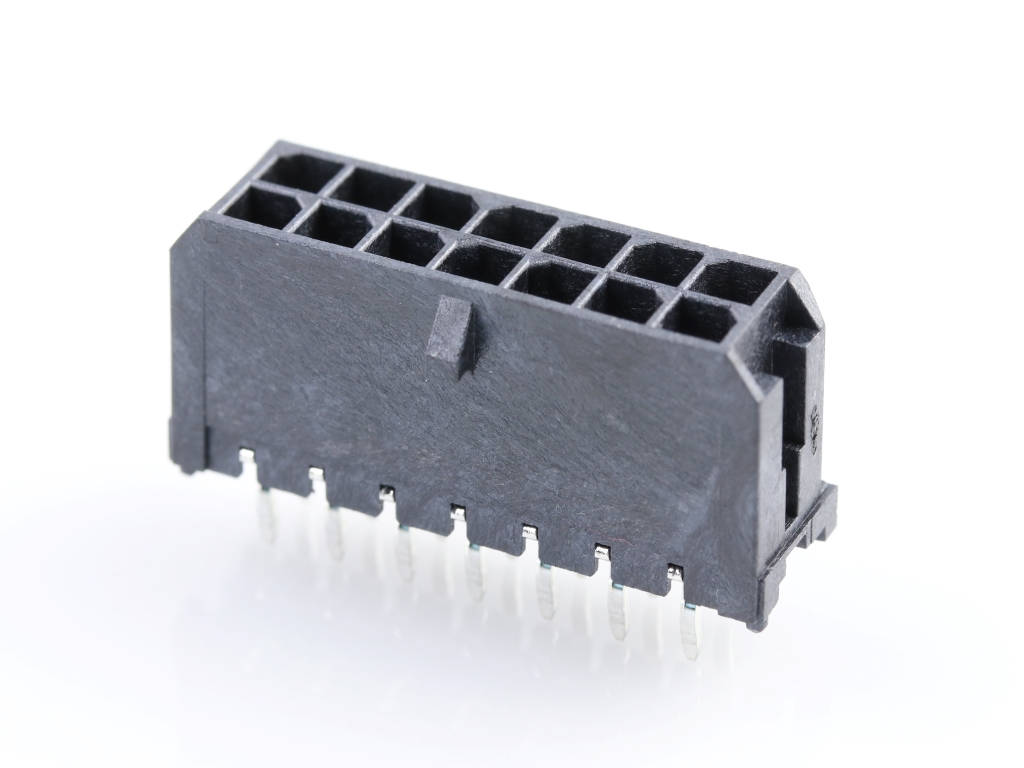

430451413 Micro-Fit 3.0 by Molex
Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 14 Circuits, with PCB Polarizing Peg, 0.38µm Gold Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-1413,
0430451413 |
Where to Buy
Prices starting from US$1.53
| Distributor | Stock | ||
|---|---|---|---|
|
Avnet America
from US$1.99
|
2,608
in stock
|
Buy Now |
|
Heilind Americas
from US$2.21
|
1,314
in stock
|
Buy Now |
|
TTI Europe
from US$1.97
|
546
in stock
|
Buy Now |
|
Conrad
from US$3.32
|
429
in stock
|
Buy Now |
|
Newark Electronics
from US$3.07
|
404
in stock
|
Buy Now |
|
Farnell
from US$3.36
|
387
in stock
|
Buy Now |
|
element14
from US$2.80
|
304
in stock
|
Buy Now |
|
TME
from US$2.15
|
73
in stock
|
Buy Now |
|
RS
from US$5.27
|
1
in stock
|
Buy Now |
|
|
RS Americas
from US$3.66
|
0
in stock
|
Buy Now |
|
Compona
from US$1.80
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$2.39
|
0
in stock
|
Buy Now |
|
Sager
from US$2.15
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.53
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.37
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 14 |
| Circuits Maximum | 14 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.930/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Pin Header, Power, Wire-to-Board, 3 mm, 2 Rows, 14 Contacts, Through Hole Straight | Avnet America |
| MICROFIT 3.0 VERT THRHOLE DR 5AU 14 CKT | Heilind Americas |
| MICRO-FIT 3.0 HEADER 14CKT | TTI Europe |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 14 Rastermaß: 3 mm 430451413 1 St. Tray | Conrad |
| Connector, Header, 14Pos, 2Row, 3Mm | Newark Electronics |
| CONN, HEADER, 14POS, 2ROW, 3MM, TH | Farnell |
| CONNECTOR, HEADER, 14POS, 2ROW, 3MM | element14 |
| Connector: wire-board | TME |
| Molex 43045-1413 PCB Header | RS |
| HEADER 3.00MM, WTB, DUAL ROW, VERT,14W | RS Americas |
| MOLEX 43045-1413 Header, Dual Row, 180°, PCB Peg, 14p 0.38µm Gold GW Compatible Kinked PC Tail | Compona |
| MICRO-FIT 3.0 HDR 02X07P VT | TTI Americas |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X07P VT | Sager |
