430451612 Micro-Fit 3.0 by Molex

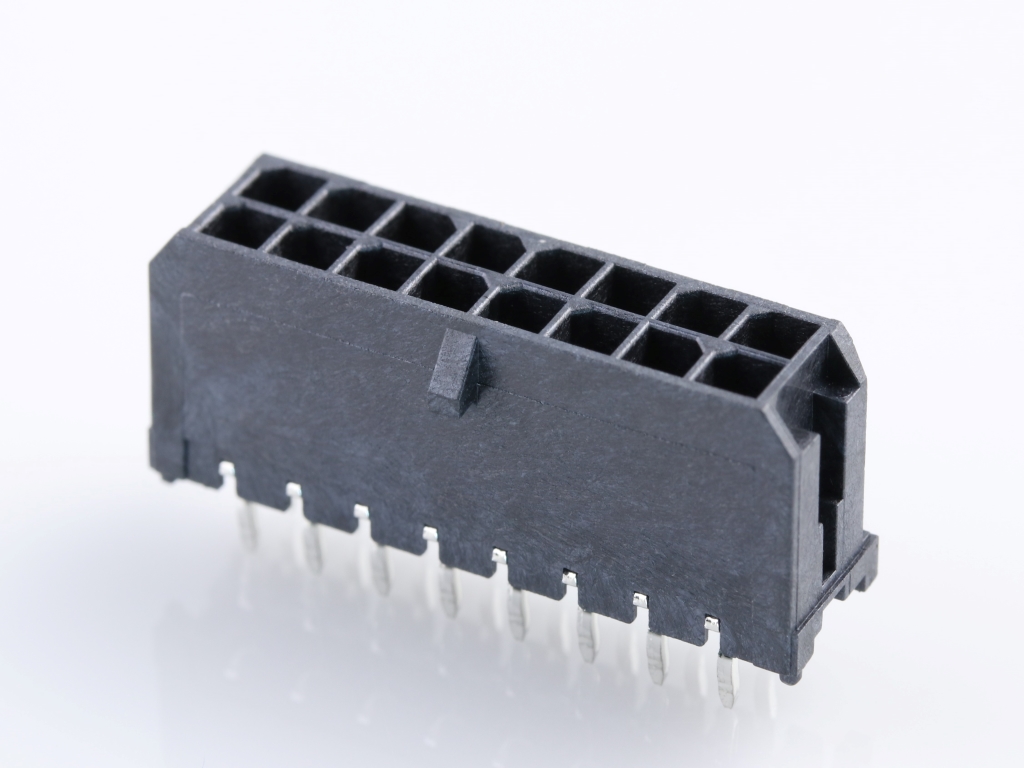

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 16 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-1612,
0430451612 |
Where to Buy
Prices starting from US$1.04
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.32
|
7,788
in stock
|
Buy Now |
|
Newark Electronics
from US$1.65
|
5,221
in stock
|
Buy Now |
|
Farnell
from US$1.84
|
2,504
in stock
|
Buy Now |
|
RS
from US$2.60
|
1,084
in stock
|
Buy Now |
|
Heilind Americas
from US$1.11
|
1,047
in stock
|
Buy Now |
|
element14
from US$1.47
|
767
in stock
|
Buy Now |
|
Rapid Electronics
from US$2.10
|
303
in stock
|
Buy Now |
|
Conrad
from US$3.20
|
303
in stock
|
Buy Now |
|
Rutronik
from US$1.38
|
0
in stock
|
Buy Now |
|
TME
from US$1.34
|
0
in stock
|
Buy Now |
|
Compona
from US$1.14
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.04
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.15
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 16 |
| Circuits Maximum | 16 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.196/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HEADER | TTI Europe |
| Microfit 3.0 Vert Thrhole Dr Hdrtin16Ckt Rohs Compliant: Yes |Molex 43045-1612 | Newark Electronics |
| CONN, HEADER, 16POS, 2ROW, 3MM, TH | Farnell |
| Molex 43045-1612 PCB Header | RS |
| MICROFIT 3.0 VERT THRHOLE DR H | Heilind Americas |
| CONNECTOR, HEADER, 16POS, 2ROW, 3MM | element14 |
| Molex 430451612 Micro-fit 3.0 Header 16-pin 3mm Dual Row Black | Rapid Electronics |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 16 Rastermaß: 3 mm 430451612 1 St. Tray | Conrad |
| 16P Micro-Fit Header 2 ROW | Rutronik |
| Connector: wire-board | TME |
| MOLEX 43045-1612 Header, Dual Row, 180°, PCB Peg, 16p Tin Plating GW Compatible Kinked PC Tail | Compona |
| MICRO-FIT 3.0 HDR 02X08P VT | TTI Asia |
