430452012 Micro-Fit 3.0 by Molex

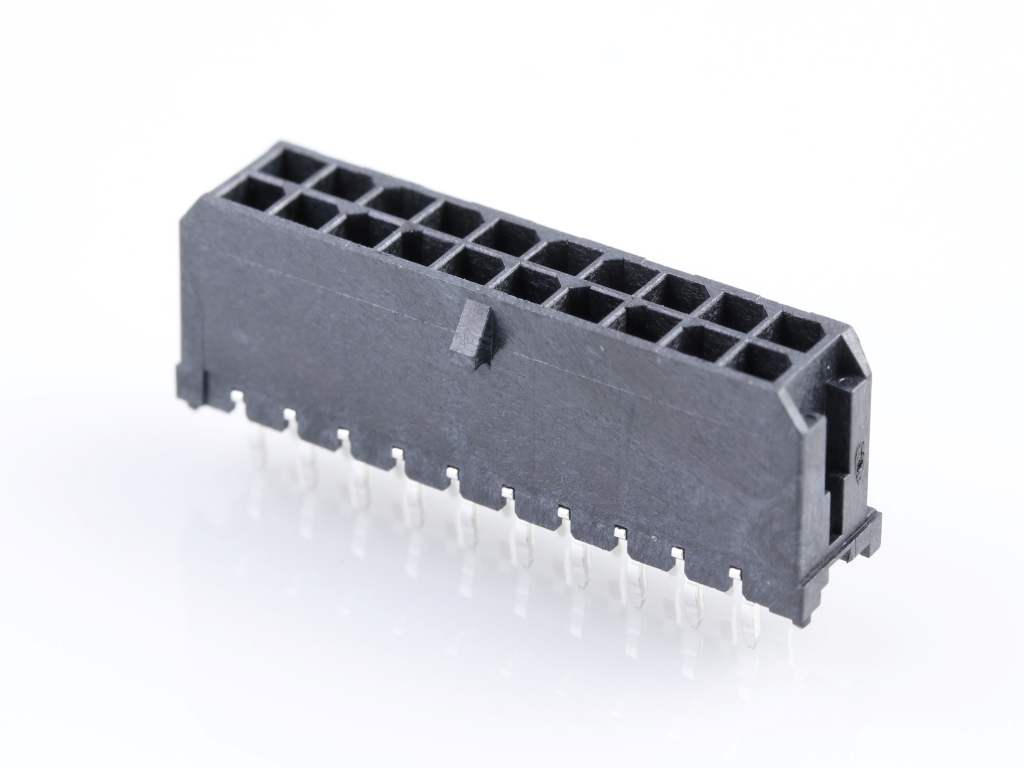

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 20 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-2012,
0430452012 |
Where to Buy
Prices starting from US$1.24
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.24
|
8,244
in stock
|
Buy Now |
|
Heilind Americas
from US$1.26
|
2,749
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.45
|
1,242
in stock
|
Buy Now |
|
element14
from US$1.81
|
722
in stock
|
Buy Now |
|
Farnell
from US$2.16
|
722
in stock
|
Buy Now |
|
RS
from US$3.58
|
90
in stock
|
Buy Now |
|
EME
from US$1.80
|
50
in stock
|
Buy Now |
|
Conrad
from US$3.15
|
33
in stock
|
Buy Now |
|
TME
from US$2.36
|
12
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.00
|
4
in stock
|
Buy Now |
|
Offical Electronic
-
|
344
in stock
|
Buy Now |
|
Rutronik
from US$1.63
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$2.36
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.34
|
0
in stock
|
Buy Now |
|
Compona
from US$1.33
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.96
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Through Hole |
| Net Weight | 2.697/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Pitch Termination Interface | 3.00mm |
| Plating Min Mating | 0.254µm |
| Plating Min Termination | 1.520µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HDR 02X10P VT | TTI Americas |
| MICROFIT 3.0 VERT THRHOLE DR H | Heilind Americas |
| MICRO-FIT 3.0 HEADER | TTI Europe |
| CONNECTOR, HEADER, 20POS, 2ROW, 3MM | element14 |
| Molex 43045-2012 PCB Header | RS |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 20 Rastermaß: 3 mm 430452012 1 St. Tray | Conrad |
| Connector: wire-board | TME |
| 20P Micro-Fit Header 2 ROW TIN 90° | Rutronik |
| Connector, Header, 20Pos, 2Row, 3Mm | Newark Electronics |
| HEADER 2 ROW VERTICAL POLARIZING PEG 20 PIN SMT/GLOW WIRE TIN PLATE KINKED LEADS | RS Americas |
| MOLEX 43045-2012 Header, Dual Row, 180°, PCB Peg, 20p Tin Plating GW Compatible Kinked PC Tail | Compona |
