430452400 Micro-Fit 3.0 by Molex

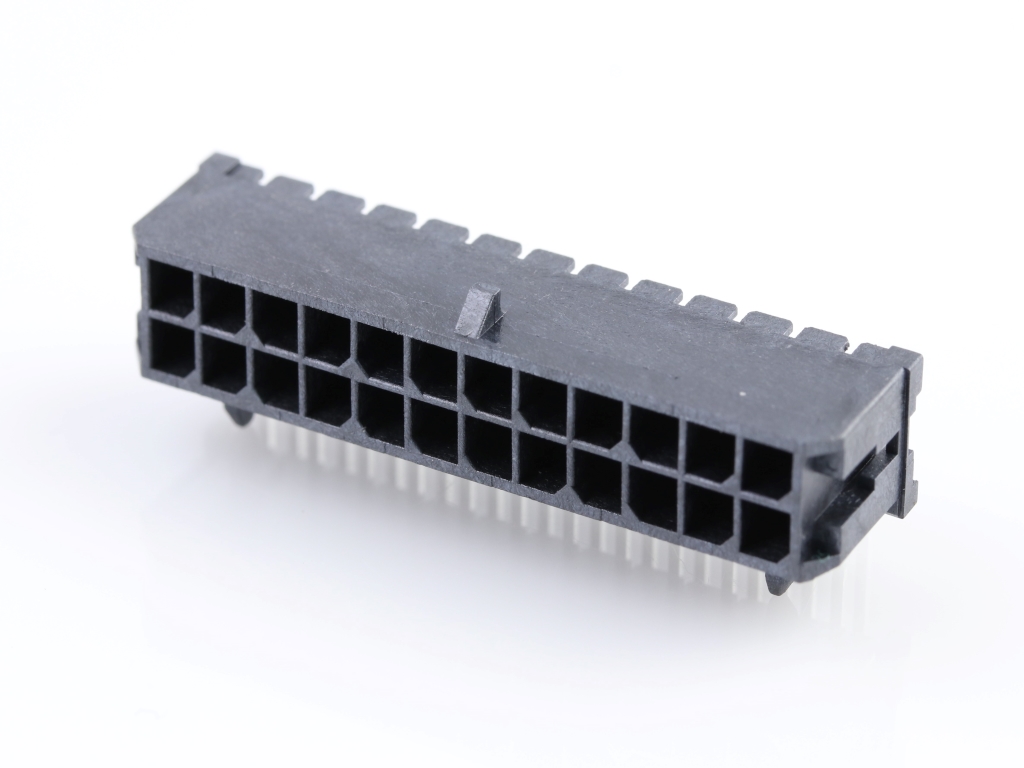

Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 24 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-2400,
0430452400 |
Where to Buy
Prices starting from US$1.84
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$5.30
|
8,371
in stock
|
Buy Now |
|
TTI Europe
from US$1.84
|
6,480
in stock
|
Buy Now |
|
element14
from US$4.36
|
992
in stock
|
Buy Now |
|
TME
from US$3.42
|
649
in stock
|
Buy Now |
|
RS
from US$8.13
|
565
in stock
|
Buy Now |
|
Heilind Americas
from US$2.33
|
305
in stock
|
Buy Now |
|
Offical Electronic
-
|
100
in stock
|
Buy Now |
|
Compona
from US$1.86
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.94
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.74
|
0
in stock
|
Buy Now |
|
EME
from US$2.77
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 24 |
| Circuits Maximum | 24 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 10.29mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 3.643/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
