430452409 Micro-Fit 3.0 by Molex

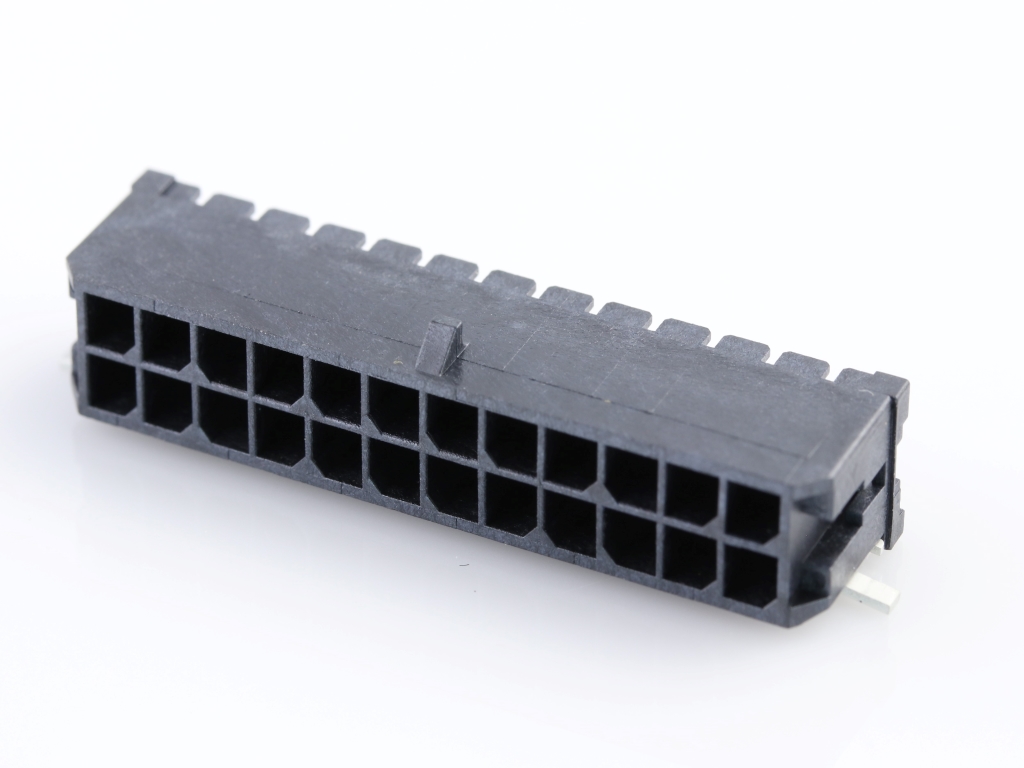

Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 24 Circuits, with Solder Tab, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-2409,
0430452409 |
Where to Buy
Prices starting from US$2.88
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$3.71
|
400
in stock
|
Buy Now |
|
Newark Electronics
from US$6.22
|
230
in stock
|
Buy Now |
|
element14
from US$5.36
|
230
in stock
|
Buy Now |
|
Farnell
from US$5.88
|
230
in stock
|
Buy Now |
|
RS
from US$5.90
|
0
in stock
|
Buy Now |
|
TME
from US$4.45
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$6.35
|
0
in stock
|
Buy Now |
|
Compona
from US$3.24
|
0
in stock
|
Buy Now |
|
Conrad
from US$9.29
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$4.71
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.55
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.88
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$4.21
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 24 |
| Circuits Maximum | 24 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 10.29mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 3.429/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HEADER 24CT | TTI Europe |
| Connector, Header, 24Pos, 2Row, 3Mm | Newark Electronics |
| CONNECTOR, HEADER, 24POS, 2ROW, 3MM | element14 |
| Molex 43045-2409 PCB Header | RS |
| Connector: wire-board | TME |
| HEADER 3.00MM, SMT, DUAL ROW, RA, 24W | RS Americas |
| MOLEX 43045-2409 Header SMT Dual Row 90° 24p Tin Plating Solder Tab, GW Compatible | Compona |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 24 Rastermaß: 3 mm 430452409 1 St. Tape on Full reel | Conrad |
| MICRO-FIT 3.0 HDR 02X12P RA | TTI Americas |
| MICROFIT 3.0 RA SMT/NAIL DR T N 24 CKT | Heilind Americas |
