430452412 Micro-Fit 3.0 by Molex

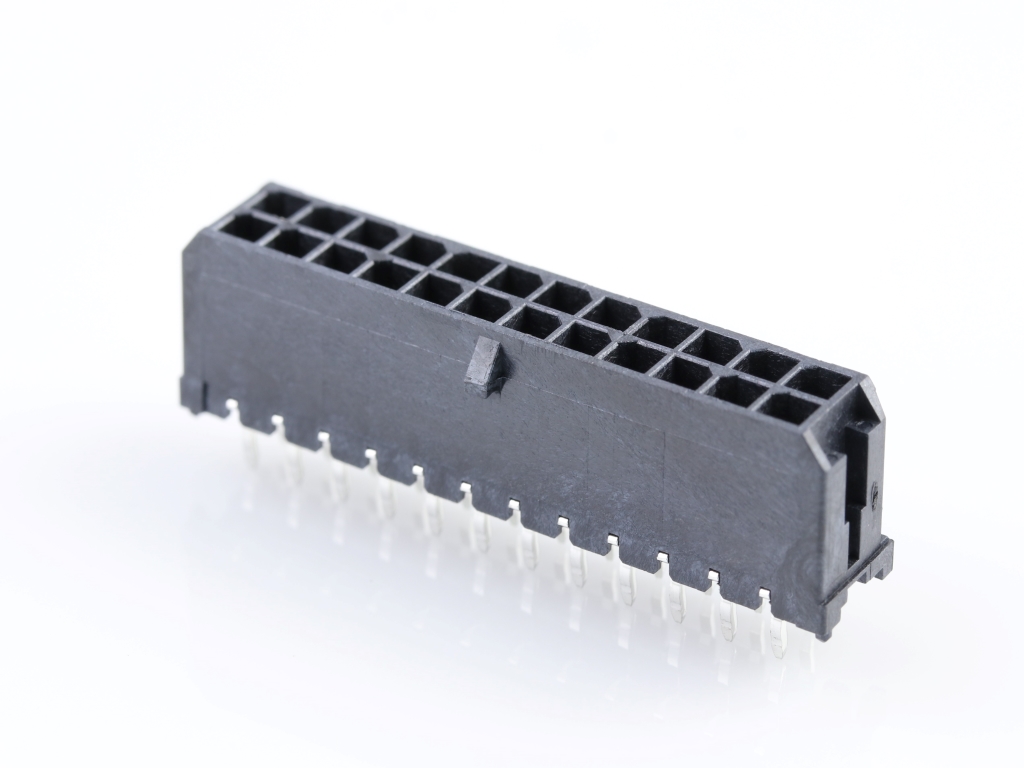

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 24 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-2412,
0430452412 |
Where to Buy
Prices starting from US$1.14
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$1.27
|
4,371
in stock
|
Buy Now |
|
TTI Europe
from US$1.70
|
3,552
in stock
|
Buy Now |
|
Farnell
from US$2.30
|
3,298
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.89
|
2,316
in stock
|
Buy Now |
|
Avnet America
from US$1.16
|
1,133
in stock
|
Buy Now |
|
Sager
from US$1.41
|
448
in stock
|
Buy Now |
|
element14
from US$2.43
|
356
in stock
|
Buy Now |
|
EME
from US$2.48
|
276
in stock
|
Buy Now |
|
TME
from US$2.84
|
265
in stock
|
Buy Now |
|
RS Americas
from US$1.14
|
32
in stock
|
Buy Now |
|
|
RS
from US$3.96
|
19
in stock
|
Buy Now |
|
Avnet Abacus
-
|
6,266
in stock
|
Buy Now |
|
Offical Electronic
-
|
2
in stock
|
Buy Now |
|
Rutronik
from US$2.53
|
0
in stock
|
Buy Now |
|
Compona
from US$1.68
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.29
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.26
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 24 |
| Circuits Maximum | 24 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Through Hole |
| Net Weight | 3.126/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Pitch Termination Interface | 3.00mm |
| Plating Min Mating | 0.254µm |
| Plating Min Termination | 1.520µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICROFIT 3.0 VERT THRHOLE DR H | Heilind Americas |
| MICRO-FIT 3.0 HEADER | TTI Europe |
| PIN HEADERS | Farnell |
| Pin Header, Wire-to-Board, 3 mm, 2 Rows, 24 Contacts, Through Hole Straight, Micro-Fit 3.0 43045 | Avnet America |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X12P VT | Sager |
| CONNECTOR, HEADER, 24POS, 2ROW, 3MM | element14 |
| Connector: wire-board | TME |
| MICRO FIT 3.0 VERTICAL HEADER, 3MM PITCH, DUAL ROW, 24 CIRCUITS, PCB | RS Americas |
| Molex 43045-2412 PCB Header | RS |
| 24P Micro-Fit Header 2 ROW | Rutronik |
| MOLEX 43045-2412 Header, Dual Row, 180°, PCB Peg, 24p Tin Plating GW Compatible Kinked PC Tail | Compona |
| MICRO-FIT 3.0 HDR 02X12P VT | TTI Americas |
