431601106 Sabre by Molex

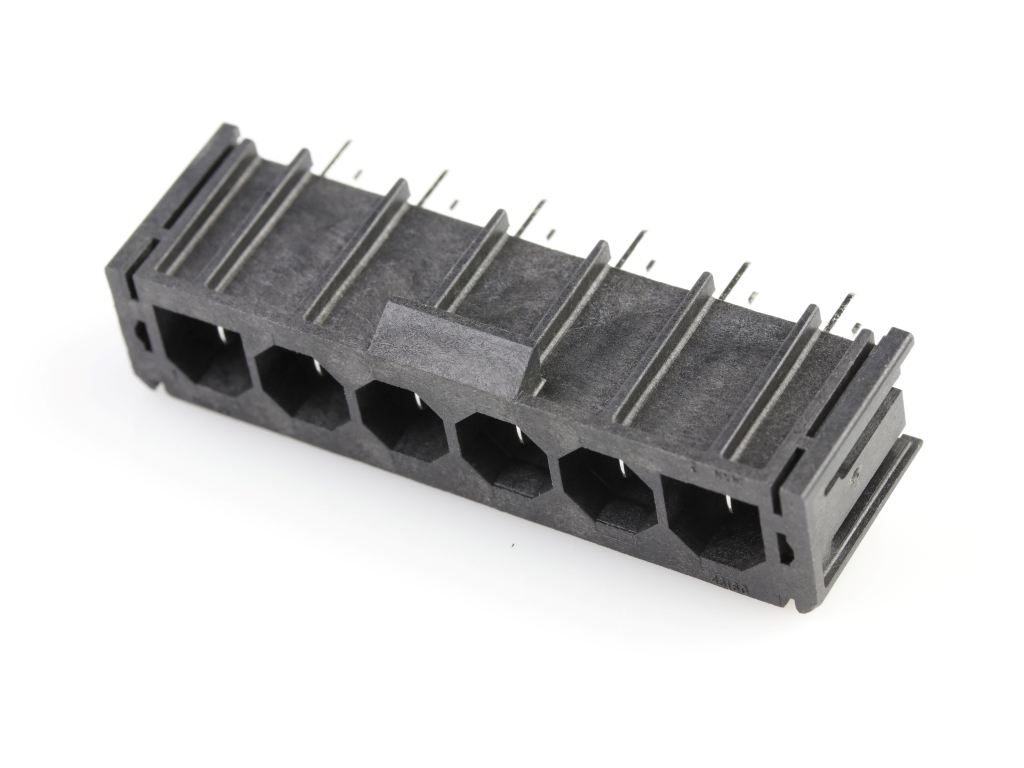

Sabre Right-Angle Header, 7.50mm Pitch, 6 Circuits, Glow-Wire Capable, 3.81mm Tail Length, for 1.60mm PCB, without Board Lock
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43160-1106,
0431601106 |
Where to Buy
Prices starting from US$0.45
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$2.66
|
6,863
in stock
|
Buy Now |
|
Newark Electronics
from US$0.45
|
48
in stock
|
Buy Now |
|
RS
from US$3.31
|
0
in stock
|
Buy Now |
|
element14
from US$3.38
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.87
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.50
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.58
|
0
in stock
|
Buy Now |
|
EME
from US$2.20
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Sabre |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 18.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 7.726/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.81mm |
| Pitch Mating Interface | 7.50mm |
| Pitch Termination Interface | 7.50mm |
| Plating Min Mating | 1.520µm |
| Plating Min Termination | 1.520µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN, R/A HEADER, 6POS, 1ROW, 7.5MM | Farnell |
| Wtb Conn, Header, 6Pos, 1Row, 7.5Mm | Newark Electronics |
| Molex 43160-1106 PCB Header | RS |
| CONNECTOR, HEADER, 6POS, 1ROW, 7.5MM | element14 |
| SABRE RIGHT ANGLE HEADER 6CIRC | TTI Europe |
| SABRE 6CKT RA V0 HDR W/OLK SH TAIL | Heilind Americas |
