431603102 Sabre by Molex

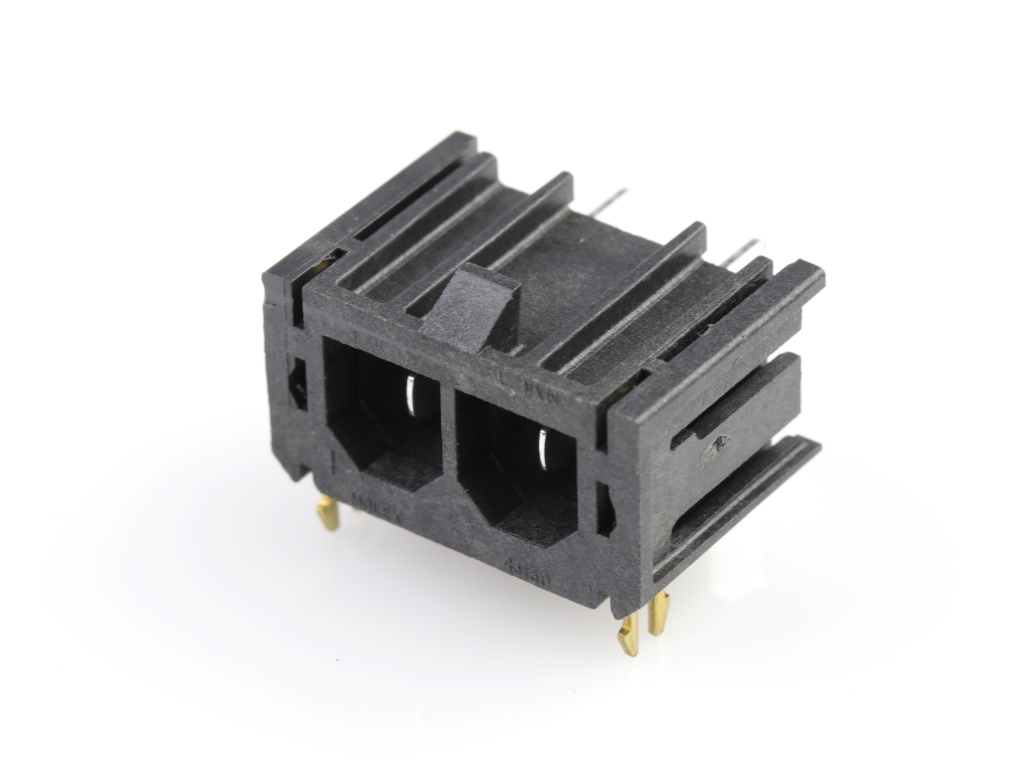

Sabre Right-Angle Header, 7.50mm Pitch, 2 Circuits, Glow-Wire Capable, 3.81mm Tail Length, for 1.60mm PCB, with Board Lock
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43160-3102,
0431603102 |
Where to Buy
Prices starting from US$0.73
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.62
|
6,001
in stock
|
Buy Now |
|
Farnell
from US$1.36
|
5,401
in stock
|
Buy Now |
|
Heilind Americas
from US$0.76
|
2,369
in stock
|
Buy Now |
|
TTI Europe
from US$1.19
|
900
in stock
|
Buy Now |
|
Newark Electronics
from US$1.55
|
100
in stock
|
Buy Now |
|
element14
from US$1.23
|
100
in stock
|
Buy Now |
|
TME
from US$1.48
|
55
in stock
|
Buy Now |
|
RS
from US$1.78
|
41
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.01
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.73
|
0
in stock
|
Buy Now |
|
EME
from US$1.31
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Sabre |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 18.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 3.331/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.81mm |
| Pitch Mating Interface | 7.50mm |
| Pitch Termination Interface | 7.50mm |
| Plating Min Mating | 1.520µm |
| Plating Min Termination | 1.520µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
