431603104 Sabre by Molex

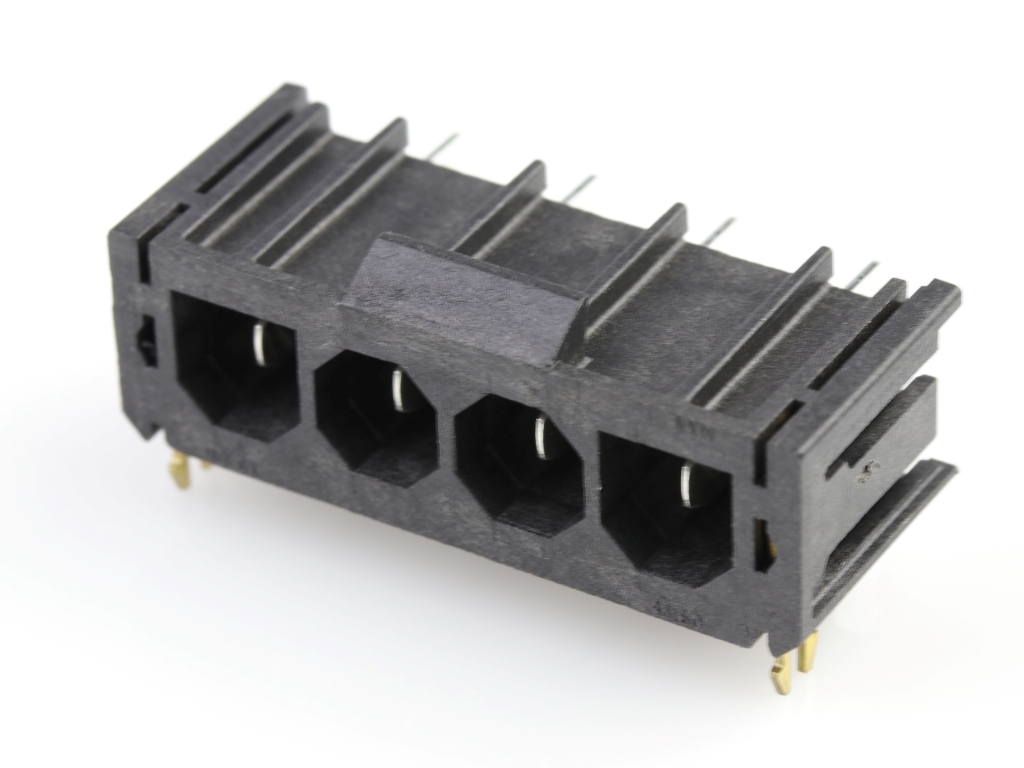

Sabre Right-Angle Header, 7.50mm Pitch, 4 Circuits, Glow-Wire Capable, 3.81mm Tail Length, for 1.60mm PCB, with Board Lock
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43160-3104,
0431603104 |
Where to Buy
Prices starting from US$1.02
| Distributor | Stock | ||
|---|---|---|---|
|
Avnet America
from US$1.02
|
4,800
in stock
|
Buy Now |
|
Heilind Americas
from US$1.05
|
3,126
in stock
|
Buy Now |
|
Farnell
from US$2.11
|
2,091
in stock
|
Buy Now |
|
Newark Electronics
from US$2.43
|
573
in stock
|
Buy Now |
|
element14
from US$2.12
|
573
in stock
|
Buy Now |
|
RS
from US$2.22
|
83
in stock
|
Buy Now |
|
TTI Europe
from US$1.87
|
80
in stock
|
Buy Now |
|
TME
from US$2.52
|
3
in stock
|
Buy Now |
|
|
RS Americas
from US$2.21
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.02
|
0
in stock
|
Buy Now |
|
Sager
from US$1.17
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.58
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.78
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Sabre |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 18.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 5.697/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.81mm |
| Pitch Mating Interface | 7.50mm |
| Pitch Termination Interface | 7.50mm |
| Plating Min Mating | 1.520µm |
| Plating Min Termination | 1.520µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Pin Header, Power, 7.5 mm, 1 Rows, 4 Contacts, Through Hole Right Angle, Sabre 43160 | Avnet America |
| SABRE 4CKT RA V0 HDR 062LK SH TAIL | Heilind Americas |
| RECT PWR CON, R/A HDR, 4POS, 1ROW, 7.5MM | Farnell |
| Connector, Header, 4Pos, 1Row, 7.5Mm | Newark Electronics |
| CONNECTOR, HEADER, 4POS, 1ROW, 7.5MM | element14 |
| Molex 43160-3104 PCB Header | RS |
| SABRE WIRE-TO-BOARD HEADER | TTI Europe |
| Connector: wire-board | TME |
| 4 WAY PCB HEADER R/A SOCKET,14-18 AWG | RS Americas |
| SABRE .295 HDR 04P RA 94V-0 | TTI Americas |
| Headers & Wire Housings Sabre 4Ckt RA V0 Hdr 062Lk ShtTail | Sager |
