431781002 Sabre by Molex

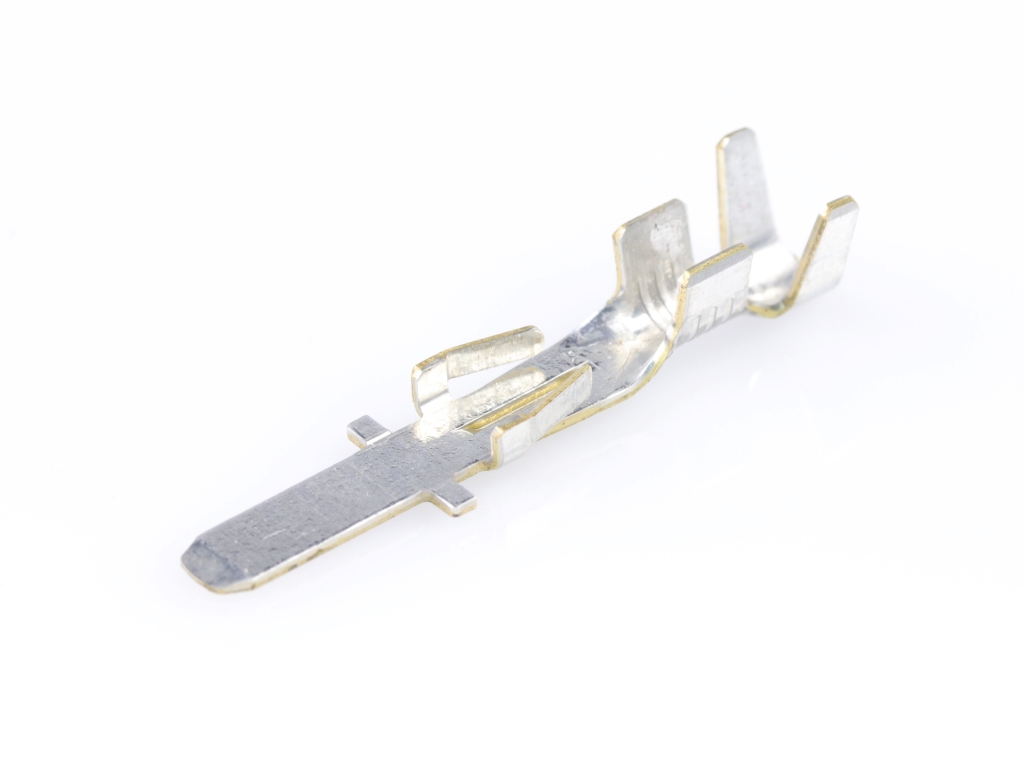

Sabre Crimp Terminal, Male, 18 AWG, 3.30mm Max. Insulation Diameter, Reel Packaged, Tin (Sn) Plated Brass Contact
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43178-1002,
0431781002 |
Where to Buy
Prices starting from US$0.0480
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.16
|
36,000
in stock
|
Buy Now |
|
Farnell
from US$0.16
|
36,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.09
|
1,687
in stock
|
Buy Now |
|
Newark Electronics
from US$0.12
|
482
in stock
|
Buy Now |
|
RS
from US$0.16
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.06
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.06
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.0480
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.13
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.10
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Sabre |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 18.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 25 |
| Gender | Male |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.565/g |
| Plating Min Mating | 0.508µm |
| Plating Min Termination | 0.508µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.30mm max. |
| Wire Size Awg | 18 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Contact | TME |
| PIN & SOCKET CONTACTS | Farnell |
| CUT STRIP SABRE TERM WTW M TIN 14-1 | Heilind Americas |
| Contact, Pin, 18Awg, Crimp | Newark Electronics |
| Molex 43178-1002 Crimp Terminal | RS |
| Contact PIN Crimp ST Cable Mount Reel | Avnet America |
| HEADERS, SABRE TERM 14-18G M REEL OF 6000 | RS Americas |
| SABRE CRMP MALE 18AWG | TTI Americas |
| SABRE TERM WTW M TIN 14-18 | Heilind Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 431781002?
Additional datasheets, footprints and schematics for 431781002 are listed on our Part Details page. You can also find images and similar parts to 431781002 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 431781002 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 431781002 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 431781002 fall under?
The 431781002 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 431781002 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 431781002 you can contact the distributor directly for product support, shipping queries etc.
Is the 431781002 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 431781002 have stock available?
Authorised distributors including TME, Farnell, Heilind Americas, Newark Electronics and RS have stock available or on a lead time for 431781002.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 431781002 often in real-time on the comparison pages.
What if I can't find stock of 431781002?
You can fill out our help required form which you can use to request a quote for 431781002 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
