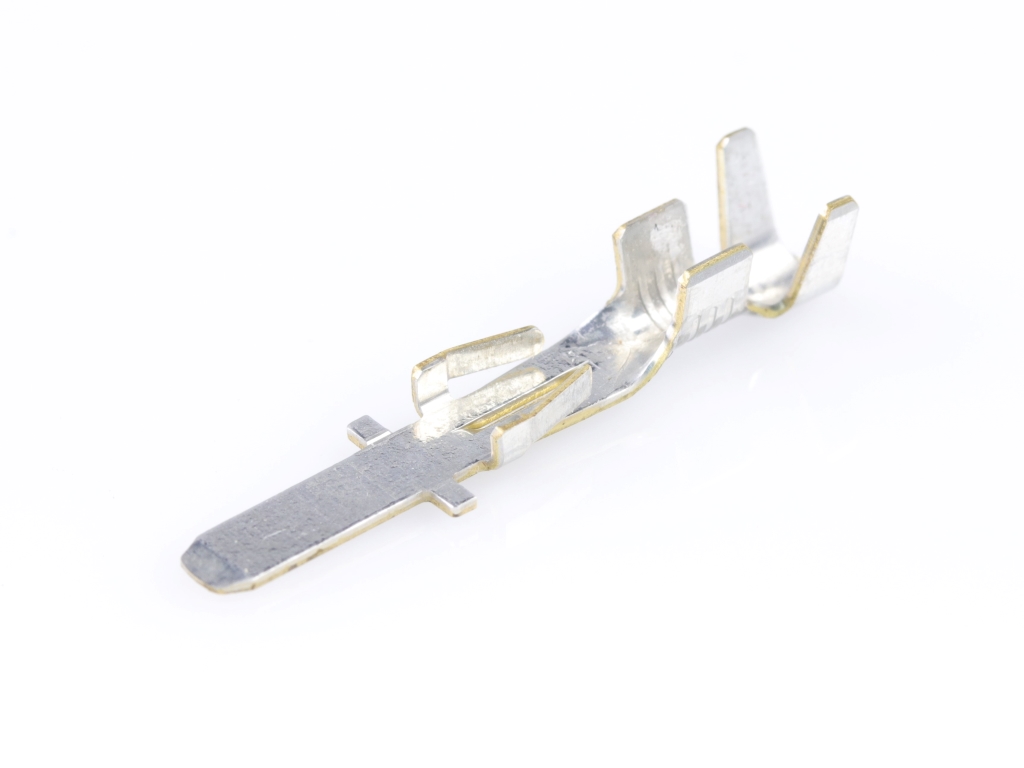

431782002 Sabre by Molex
Sabre Crimp Terminal, Male, Double 20+18 or Single 16-14 AWG, 3.60mm Max. Insulation Diameter, Reel Packaged, Tin (Sn) Plated Brass Contact
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43178-2002,
0431782002 |
Where to Buy
Prices starting from US$0.05
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.06
|
130,000
in stock
|
Buy Now |
|
Conrad
from US$0.16
|
115,000
in stock
|
Buy Now |
|
Farnell
from US$0.14
|
110,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.06
|
93,750
in stock
|
Buy Now |
|
element14
from US$0.17
|
53,679
in stock
|
Buy Now |
|
Newark Electronics
from US$0.05
|
31,418
in stock
|
Buy Now |
|
RS Americas
from US$0.07
|
2,166
in stock
|
Buy Now |
|
|
RS
from US$0.21
|
1,950
in stock
|
Buy Now |
|
Avnet America
from US$0.06
|
0
in stock
|
Buy Now |
|
TME
from US$0.14
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.14
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.13
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.05
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Sabre |
|---|---|
| Application | Power, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 18.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 25 |
| Gender | Male |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.565/g |
| Plating Min Mating | 0.508µm |
| Plating Min Termination | 0.508µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.60mm max. |
| Wire Size Awg | 14, 16, 20+18 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SABRE .295 CRMP 14-18AWG MA | TTI Americas |
| SuperSabre 431782002 Molex Inhalt: 1 St. | Conrad |
| CONTACT, PIN, 14AWG, CRIMP | Farnell |
| SABRE TERM WTW M TIN 14-18AWG | Heilind Americas |
| Contact, Pin, 14Awg, Crimp | Newark Electronics |
| SABRE TERM WTW M TIN 14-18 | RS Americas |
| Molex 43178-2002 Crimp Terminal | RS |
| Contact, Sabre 43178 Series, Pin, Crimp, 14 AWG, Tin Plated Contacts | Avnet America |
| Contact | TME |
| SABRE CRIMP TERMINAL 14-16AWG | TTI Europe |
