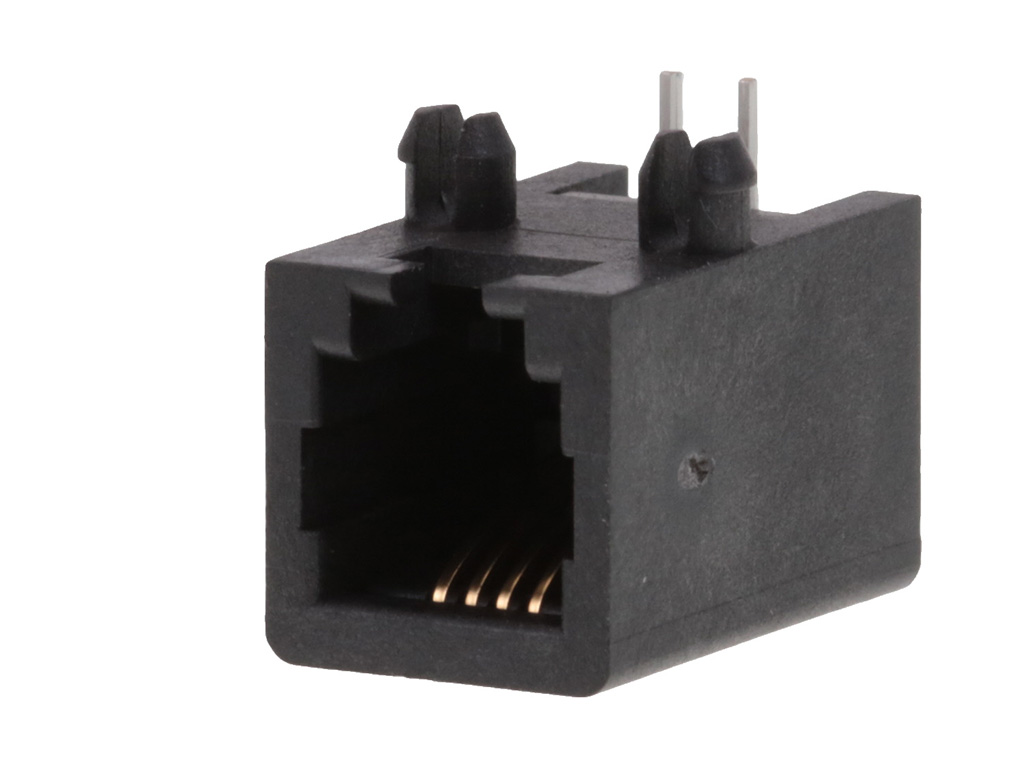

432024101 Modular Jack 4/4 by Molex
Modular Jack, Right-Angle, Low Profile, 4/4
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43202-4101,
0432024101, A432024101 |
Where to Buy
Prices starting from US$0.55
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.73
|
4,860
in stock
|
Buy Now |
|
TME
from US$1.33
|
4,724
in stock
|
Buy Now |
|
Conrad
from US$1.78
|
4,724
in stock
|
Buy Now |
|
Farnell
from US$1.29
|
4,252
in stock
|
Buy Now |
|
Heilind Americas
from US$0.56
|
3,347
in stock
|
Buy Now |
|
Avnet America
from US$0.55
|
590
in stock
|
Buy Now |
|
Newark Electronics
from US$1.63
|
404
in stock
|
Buy Now |
|
RS
from US$1.88
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.03
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.25
|
0
in stock
|
Buy Now |
|
Sager
from US$0.64
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.12
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.58
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 4/4 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.58mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.100/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 4/4 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MDJCK 4/4 RA LOPRO UNSHLD | TTI Americas |
| Connector: RJ45 | TME |
| Molex Cat 3 Mod Jack/Plug 432024101 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, R/A JACK, 4P4C, 1PORT, TH | Farnell |
| MODJACK RA LOPRO FLGLS 50 SAU | Heilind Americas |
| Conn Modular Jack F 4 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Cat 3/Cat 4 | Avnet America |
| Modular Connector, Jack, 4P4C, 1Port, Th | Newark Electronics |
| Molex 43202-4101 Modular Connector | RS |
| MODJACK RA LOPRO FLGLS 50SAU 4/4 | RS Americas |
| MODULAR JACK, RIGHT ANGLE, | TTI Europe |
| Modular Connectors / Ethernet Connectors MDJCK 4/4 RA LOPRO UNSHLD | Sager |
