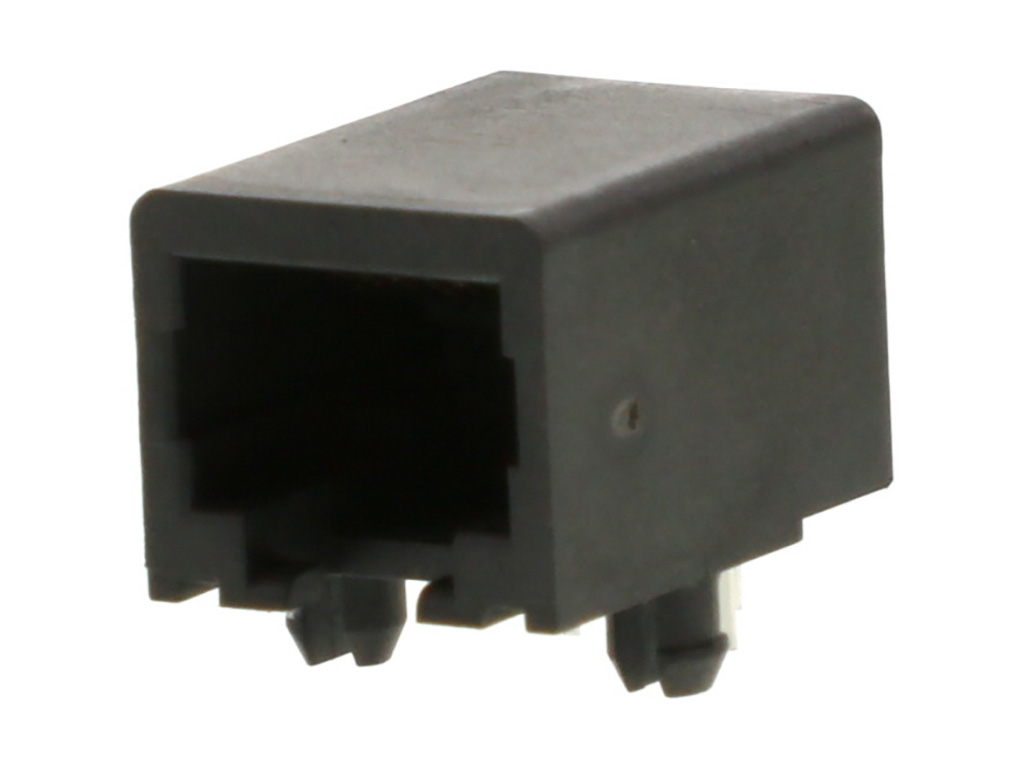

432026101 Modular Jack 6/6 by Molex
Modular Jack, Right-Angle, Low Profile, 6/6
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43202-6101,
0432026101 |
Where to Buy
Prices starting from US$1.15
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.61
|
9,722
in stock
|
Buy Now |
|
Farnell
from US$1.69
|
8,750
in stock
|
Buy Now |
|
Newark Electronics
from US$1.20
|
4,251
in stock
|
Buy Now |
|
element14
from US$1.44
|
2,000
in stock
|
Buy Now |
|
Heilind Americas
from US$1.25
|
913
in stock
|
Buy Now |
|
RS
from US$1.38
|
0
in stock
|
Buy Now |
|
TME
from US$1.53
|
0
in stock
|
Buy Now |
|
Compona
from US$1.33
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.15
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$1.39
|
0
in stock
|
Buy Now |
|
EME
from US$1.48
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.58mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.305/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Cat 3 Mod Jack/Plug 432026101 Buchse Schwarz 1 St. | Conrad |
| MODULAR AND ETHERNET CONNECTORS | Farnell |
| Modjack Ra Lopro Flgls 50Sau 6/6 Rohs Compliant: Yes |Molex 43202-6101 | Newark Electronics |
| MODULAR CONNECTOR, JACK, 6P6C, 1PORT, TH | element14 |
| MODJACK RA LOPRO FLGLS 50 SAU | Heilind Americas |
| Molex 43202-6101 RJ45 Connector | RS |
| Connector: RJ45 | TME |
| MOLEX 432026101 Socket Square RJ 6p THT | Compona |
| MDJCK 6/6 RA LOPRO UNSHLD | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 432026101?
Additional datasheets, footprints and schematics for 432026101 are listed on our Part Details page. You can also find images and similar parts to 432026101 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 432026101 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 432026101 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 432026101 fall under?
The 432026101 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 432026101 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 432026101 you can contact the distributor directly for product support, shipping queries etc.
Is the 432026101 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 432026101 have stock available?
Authorised distributors including Conrad, Farnell, Newark Electronics, element14 and Heilind Americas have stock available or on a lead time for 432026101.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 432026101 often in real-time on the comparison pages.
What if I can't find stock of 432026101?
You can fill out our help required form which you can use to request a quote for 432026101 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
