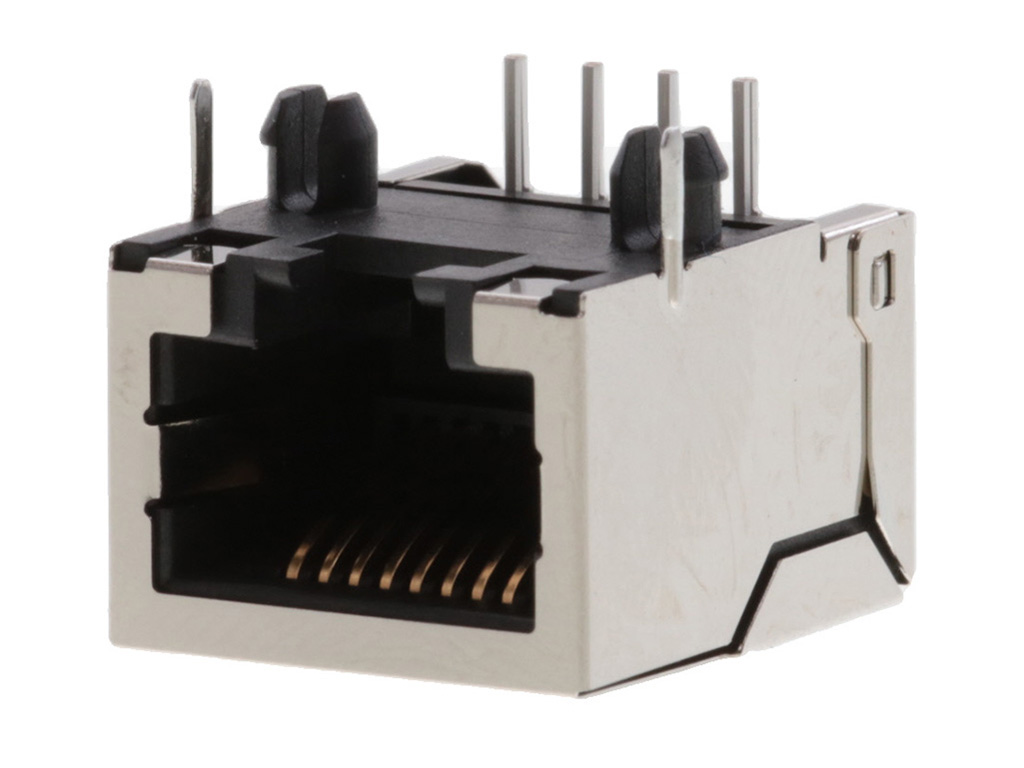

432028816 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, Shielded, No Panel Grounding Tabs, without Bottom Grounding Tab, Front Position PCB Ground Tab, 8/8
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43202-8816,
0432028816 |
Where to Buy
Prices starting from US$2.20
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$5.74
|
103
in stock
|
Buy Now |
|
Offical Electronic
-
|
141
in stock
|
Buy Now |
|
Avnet America
from US$2.27
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.95
|
0
in stock
|
Buy Now |
|
element14
from US$4.82
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.20
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Panel | None |
| Shielded | Yes |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.81mm |
| Light Pipes Leds | None |
| Material Metal | Brass, Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 4.100/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | With Flange |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 43202-8816 RJ45 Connector | RS |
| MODJACK RA LOPRO FLGLS W/SHLD 50AU 8/8 | Avnet America |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, TH | element14 |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 432028816?
Additional datasheets, footprints and schematics for 432028816 are listed on our Part Details page. You can also find images and similar parts to 432028816 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 432028816 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 432028816 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 432028816 fall under?
The 432028816 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 432028816 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 432028816 you can contact the distributor directly for product support, shipping queries etc.
Is the 432028816 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 432028816 have stock available?
Authorised distributors including RS, Offical Electronic, Avnet America, RS Americas and element14 have stock available or on a lead time for 432028816.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 432028816 often in real-time on the comparison pages.
What if I can't find stock of 432028816?
You can fill out our help required form which you can use to request a quote for 432028816 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
