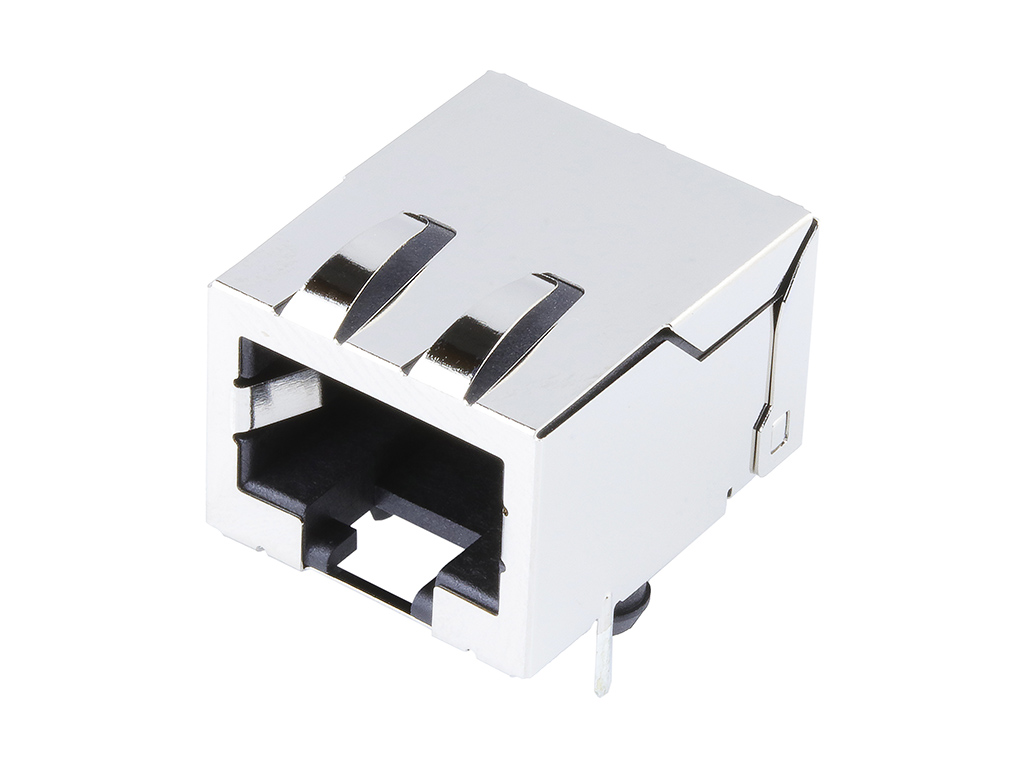

432028917 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, Shielded, Top Panel Grounding Tabs, with Bottom Grounding Tab, Front Position PCB Ground Tab, 8/8
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43202-8917,
0432028917 |
Where to Buy
Prices starting from US$1.82
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Panel | Top Panel Ground Tabs |
| Shielded | Yes |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 12.09mm |
| Light Pipes Leds | None |
| Material Metal | Brass, Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 4.350/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | Without Flange |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cat3 Rj45 Modular Jack, 8 Position, 1 Port | Newark Electronics |
| Connector: RJ45 | TME |
| MODULAR CONN-ETHERNET CONN | Farnell |
| Molex 43202-8917 Modular Jack | RS |
| MODJACK RA LOPRO FLGLS SHLD 5 AU 8/8 | Heilind Americas |
