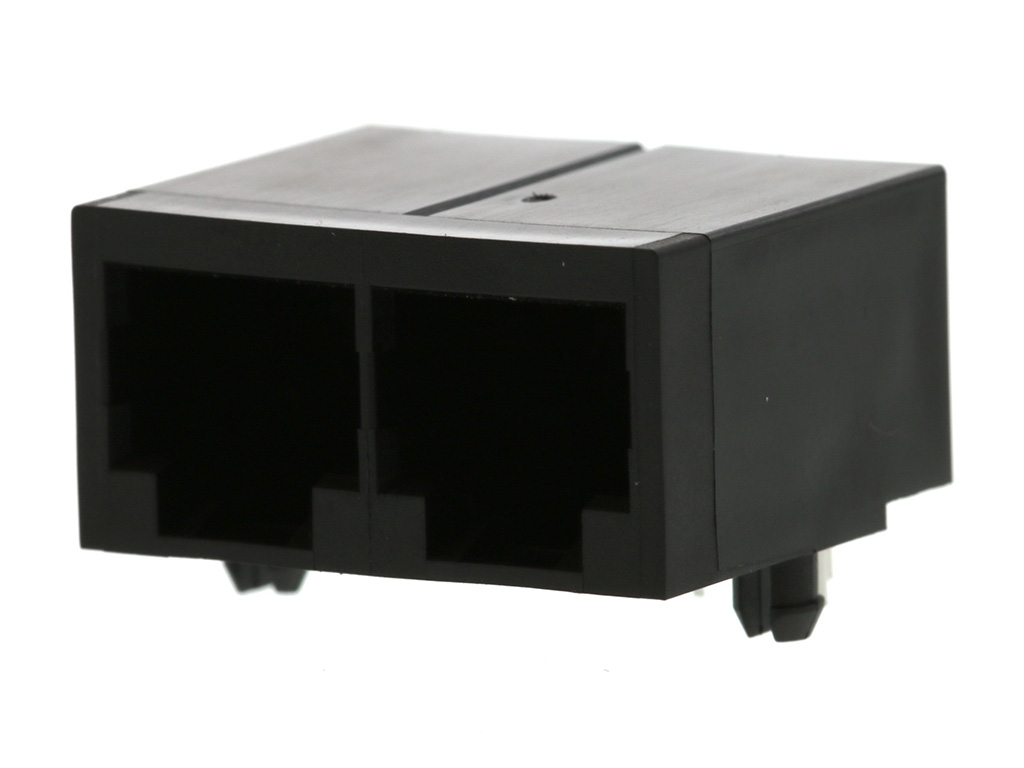

432236101 Modular Jack 6/6 by Molex
Modular Jack, Right-Angle, Low Profile, 6/6, 2 Ports
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43223-6101,
0432236101, A432236101 |
Where to Buy
Prices starting from US$1.79
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$3.38
|
1,112
in stock
|
Buy Now |
|
Conrad
from US$3.11
|
1,112
in stock
|
Buy Now |
|
Farnell
from US$3.48
|
1,001
in stock
|
Buy Now |
|
Newark Electronics
from US$4.12
|
363
in stock
|
Buy Now |
|
element14
from US$2.66
|
363
in stock
|
Buy Now |
|
RS
from US$4.38
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.79
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.67
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$2.24
|
0
in stock
|
Buy Now |
|
EME
from US$3.64
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 12.83mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 4.580/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x2 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 43223-6101 | TME |
| Molex Molex 432236101 GANG JACK EXPANDABLE 432236101 Buchse Polzahl Sensoren 6P6C 1 St. | Conrad |
| MOD CONN, R/A JACK, 6P6C, TH | Farnell |
| Connector, Rj11, Jack, 6P6C, Cat3/Cat4 | Newark Electronics |
| CONNECTOR, RJ11, JACK, 6P6C, CAT3/CAT4 | element14 |
| Molex 43223-6101 Modular Jack | RS |
| MODJACK RA GANGD UNSHL FLH 2P T 6/6 | Heilind Americas |
| MODJACK RA GANGD UNSHL FLH 2PR | TTI Asia |
