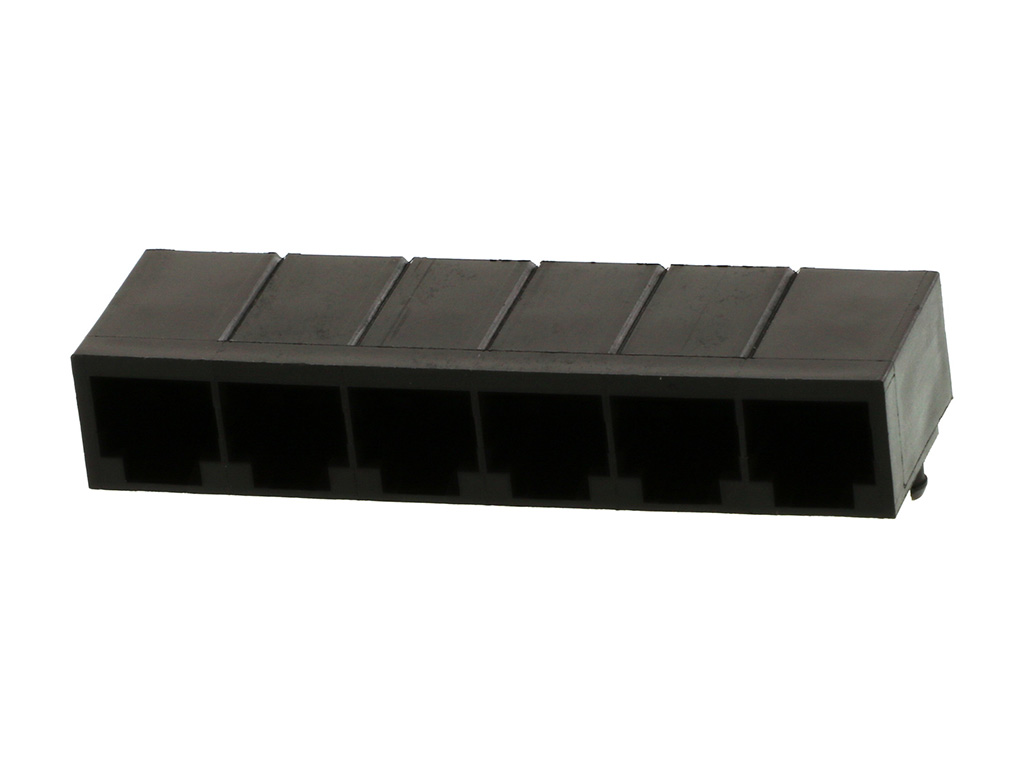

432236113 Modular Jack 6/6 by Molex
Modular Jack, Right-Angle, Low Profile, 6/6, 6 Ports
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43223-6113,
0432236113, A432236113 |
Where to Buy
Prices starting from US$4.99
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$6.30
|
228
in stock
|
Buy Now |
|
Newark Electronics
from US$8.46
|
0
in stock
|
Buy Now |
|
Avnet America
from US$4.99
|
0
in stock
|
Buy Now |
|
RS Americas
from US$8.66
|
0
in stock
|
Buy Now |
|
Sager
from US$5.60
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$5.74
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$14.07
|
0
in stock
|
Buy Now |
|
Farnell
from US$17.25
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$7.69
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 12.83mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 12.200/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x6 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MDJCK 6/6 RA GANG NO FLANGE | TTI Americas |
| Modular Connector | Newark Electronics |
| R/A OPTIONAL SHIELD GANGED PCB MODJACK | Avnet America |
| MODJACK RA GANGD UNSHL FLH 6PRT 6/6 | RS Americas |
| Modular Connectors / Ethernet Connectors MDJCK 6/6 RA GANG NO FLANGE | Sager |
| MODJACK RA GANGD UNSHL FLH 6P T 6/6 | Heilind Americas |
| MODJACK RA GANGD UNSHL FLH 6PR | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 432236113?
Additional datasheets, footprints and schematics for 432236113 are listed on our Part Details page. You can also find images and similar parts to 432236113 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 432236113 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 432236113 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 432236113 fall under?
The 432236113 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 432236113 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 432236113 you can contact the distributor directly for product support, shipping queries etc.
Is the 432236113 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 432236113 have stock available?
Authorised distributors including TTI Americas, Newark Electronics, Avnet America, RS Americas and Sager have stock available or on a lead time for 432236113.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 432236113 often in real-time on the comparison pages.
What if I can't find stock of 432236113?
You can fill out our help required form which you can use to request a quote for 432236113 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
