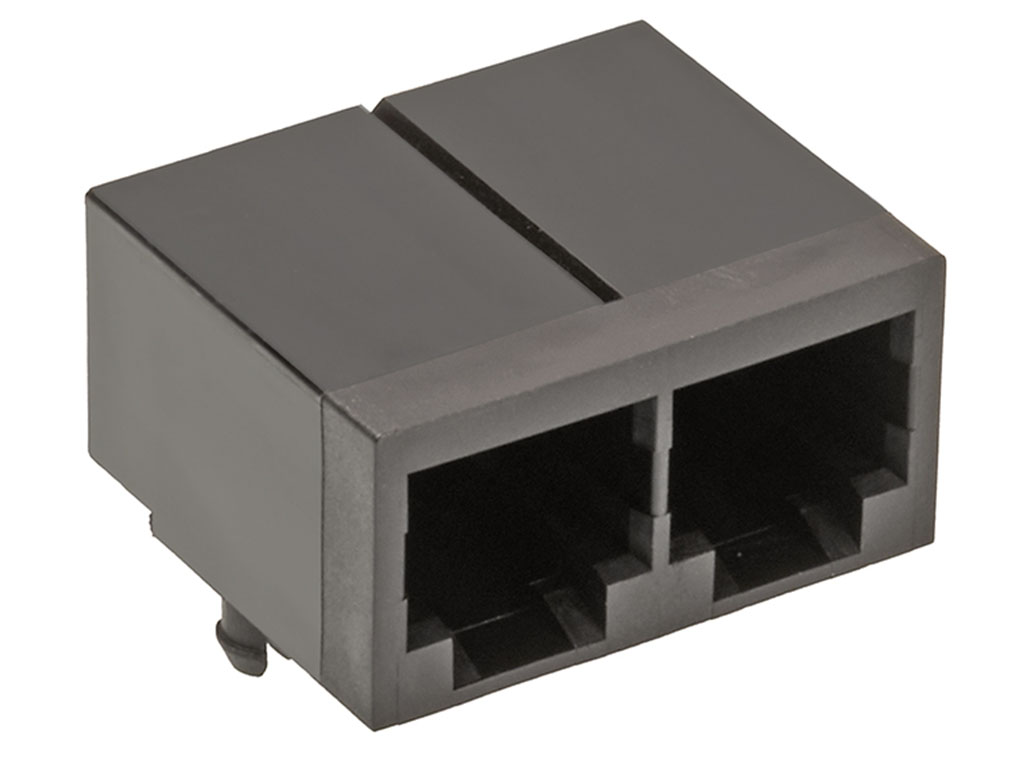

432236122 Modular Jack 6/4 by Molex
Modular Jack, Right-Angle, Low Profile, 6/4, 2 Ports
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43223-6122,
0432236122 |
Where to Buy
Prices starting from US$1.74
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$1.74
|
533
in stock
|
Buy Now |
|
Newark Electronics
from US$1.93
|
347
in stock
|
Buy Now |
|
TME
from US$3.77
|
347
in stock
|
Buy Now |
|
Conrad
from US$3.16
|
347
in stock
|
Buy Now |
|
Farnell
from US$3.13
|
313
in stock
|
Buy Now |
|
RS
from US$4.85
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.08
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.67
|
0
in stock
|
Buy Now |
|
element14
from US$4.13
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.78
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.94
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/4 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 12.83mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 4.400/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x2 |
| Positions Loaded Contacts | 6/4 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MODJACK RA GANGD UNSHL FLH 2P T 6/4 | Heilind Americas |
| Cat3/Cat4 Rj11 Modular Jack, 6 Position, 2Port | Newark Electronics |
| 43223-6122 | TME |
| Molex Molex 432236122 GANG JACK EXPANDABLE 432236122 1 St. | Conrad |
| MODULAR AND ETHERNET CONNECTORS MODULAR | Farnell |
| Molex 43223-6122 Modular Jack | RS |
| Modular Connector, Modular Jack, 1 x 2 (Ganged), 6P4C, Cat3, Through Hole Mount | Avnet America |
| MODJACK RA GANGD UNSHL FLH 2PRT 6/4 | RS Americas |
| MODULAR CONNECTOR, JACK, 6P4C, 2PORT, TH | element14 |
| MDJCK 6/4 RA GANG NO FLANGE | TTI Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 432236122?
Additional datasheets, footprints and schematics for 432236122 are listed on our Part Details page. You can also find images and similar parts to 432236122 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 432236122 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 432236122 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 432236122 fall under?
The 432236122 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 432236122 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 432236122 you can contact the distributor directly for product support, shipping queries etc.
Is the 432236122 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 432236122 have stock available?
Authorised distributors including Heilind Americas, Newark Electronics, TME, Conrad and Farnell have stock available or on a lead time for 432236122.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 432236122 often in real-time on the comparison pages.
What if I can't find stock of 432236122?
You can fill out our help required form which you can use to request a quote for 432236122 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
