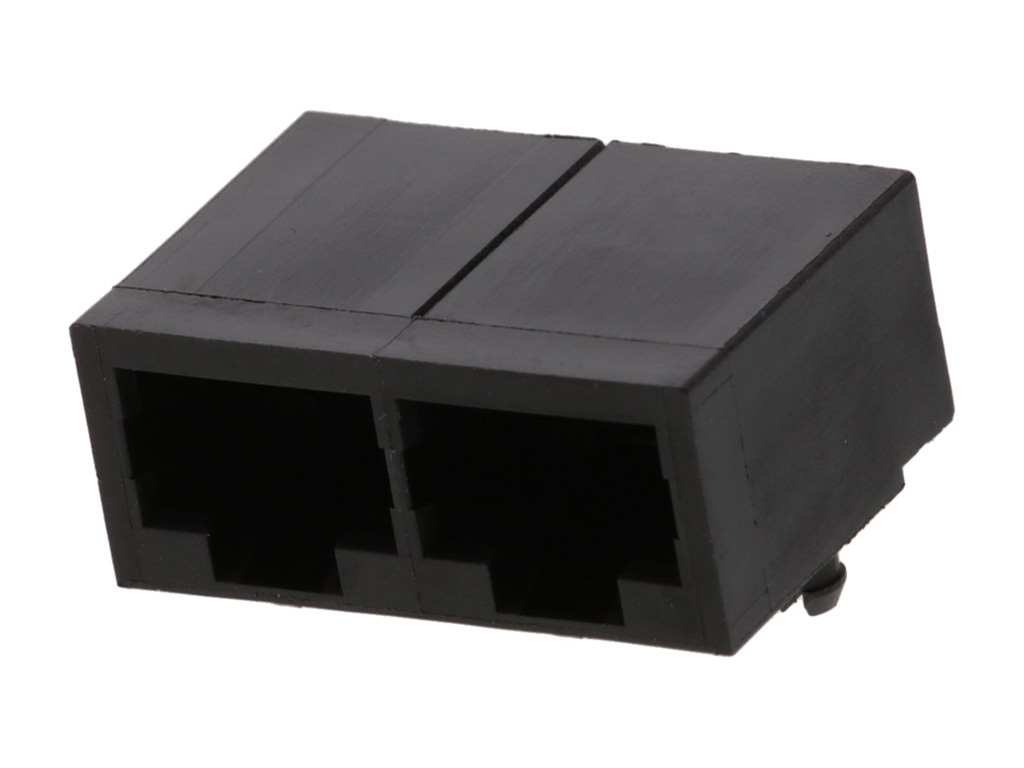

432238122 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, 8/8, 2 Ports
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43223-8122,
0432238122 |
Where to Buy
Prices starting from US$1.73
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$5.04
|
197
in stock
|
Buy Now |
|
Farnell
from US$4.75
|
197
in stock
|
Buy Now |
|
Newark Electronics
from US$3.01
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.73
|
0
in stock
|
Buy Now |
|
RS Americas
from US$3.15
|
0
in stock
|
Buy Now |
|
Conrad
from US$4.08
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$2.02
|
0
in stock
|
Buy Now |
|
Sager
from US$2.05
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.09
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.59
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.05
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 12.83mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 5.900/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x2 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| RJ45 CONNECTOR, JACK, 8P8C, 2 PORT, TH | element14 |
| Rj45 Connector, Jack, 8P8C, 2 Port, Th | Newark Electronics |
| MODJACK RA GANGD UNSHL FLH 2PRT 8/8 | Avnet America |
| Molex Molex 432238122 GANG JACK EXPANDABLE 432238122 1 St. | Conrad |
| MDJCK 8/8 RA GANG NO FLANGE | TTI Americas |
| Modular Connectors / Ethernet Connectors MDJCK 8/8 RA GANG NO FLANGE | Sager |
| MODJACK RA GANGD UNSHL FLH 2P T 8/8 | Heilind Americas |
