436500201 Micro-Fit 3.0 by Molex

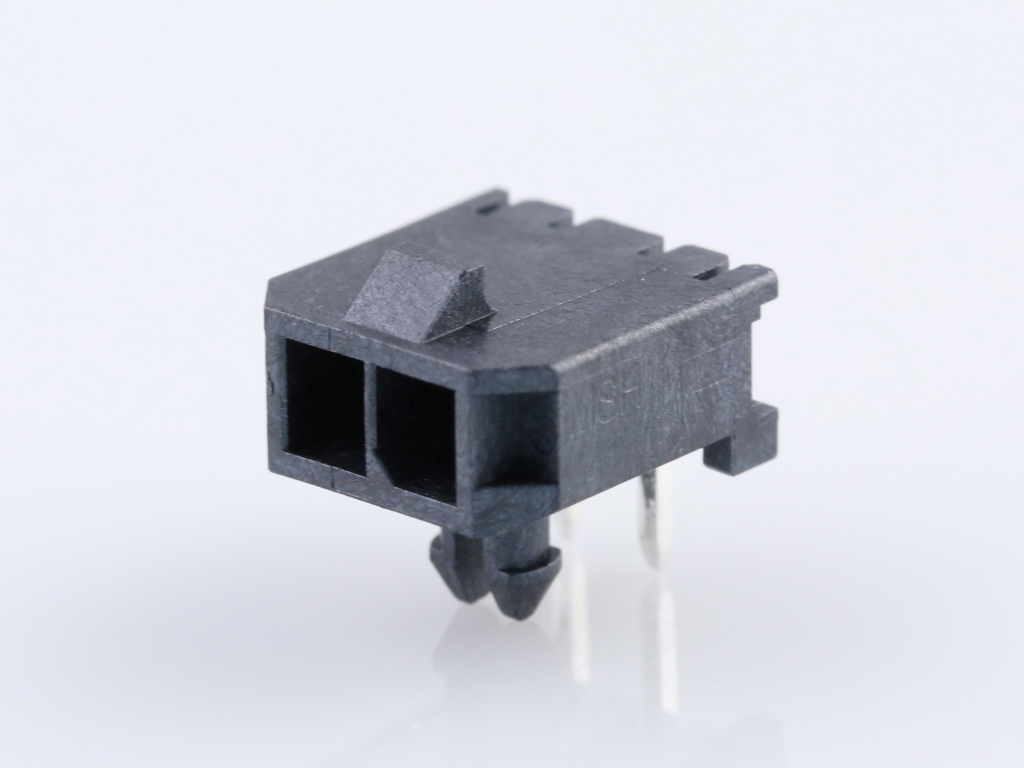

Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 2 Circuits, with Snap-in Plastic Peg PCB Lock, 0.38µm Gold Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43650-0201,
0436500201 |
Where to Buy
Prices starting from US$0.43
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.54
|
25,047
in stock
|
Buy Now |
|
Newark Electronics
from US$0.86
|
10,658
in stock
|
Buy Now |
|
Heilind Americas
from US$0.43
|
8,481
in stock
|
Buy Now |
|
Farnell
from US$0.79
|
7,257
in stock
|
Buy Now |
|
RS Americas
from US$0.78
|
3,175
in stock
|
Buy Now |
|
element14
from US$0.75
|
425
in stock
|
Buy Now |
|
|
RS
from US$0.93
|
392
in stock
|
Buy Now |
|
TME
from US$0.74
|
158
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.86
|
83
in stock
|
Buy Now |
|
Conrad
from US$1.19
|
83
in stock
|
Buy Now |
|
Avnet America
from US$0.49
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.65
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.56
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.71
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Mated Height | 6.98mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 0.503/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HDR 02P RA | TTI Americas |
| Microfit 3.0 Sr Ra Th Peg 15Au 2Ckt Rohs Compliant: Yes |Molex 43650-0201 | Newark Electronics |
| MICROFIT 3.0 SR RA TH PEG 15AU | Heilind Americas |
| CONN, R/A HEADER, 2POS, 1ROW, 3MM, TH | Farnell |
| HEADERS R/A HEADER 2P GOLD SINGLE ROW | RS Americas |
| CONN, HEADER, 2POS, 1ROW, 3MM | element14 |
| Molex 436500201 PCB Header | RS |
| Connector: wire-board | TME |
| Molex 436500201 Micro-fit Header 3mm Pitch 2 Pins Right-angle Gold | Rapid Electronics |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 2 Rastermaß: 3 mm 436500201 1 St. Tray | Conrad |
| Pin Header, Power, Wire-to-Board, 3 mm, 1 Rows, 2 Contacts, Through Hole Right Angle | Avnet America |
| MICROFIT 3.0 SR RA TH PEG | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 436500201?
Additional datasheets, footprints and schematics for 436500201 are listed on our Part Details page. You can also find images and similar parts to 436500201 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 436500201 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 436500201 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 436500201 fall under?
The 436500201 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 436500201 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 436500201 you can contact the distributor directly for product support, shipping queries etc.
Is the 436500201 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 436500201 have stock available?
Authorised distributors including TTI Americas, Newark Electronics, Heilind Americas, Farnell and RS Americas have stock available or on a lead time for 436500201.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 436500201 often in real-time on the comparison pages.
What if I can't find stock of 436500201?
You can fill out our help required form which you can use to request a quote for 436500201 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
