436500215 Micro-Fit 3.0 by Molex

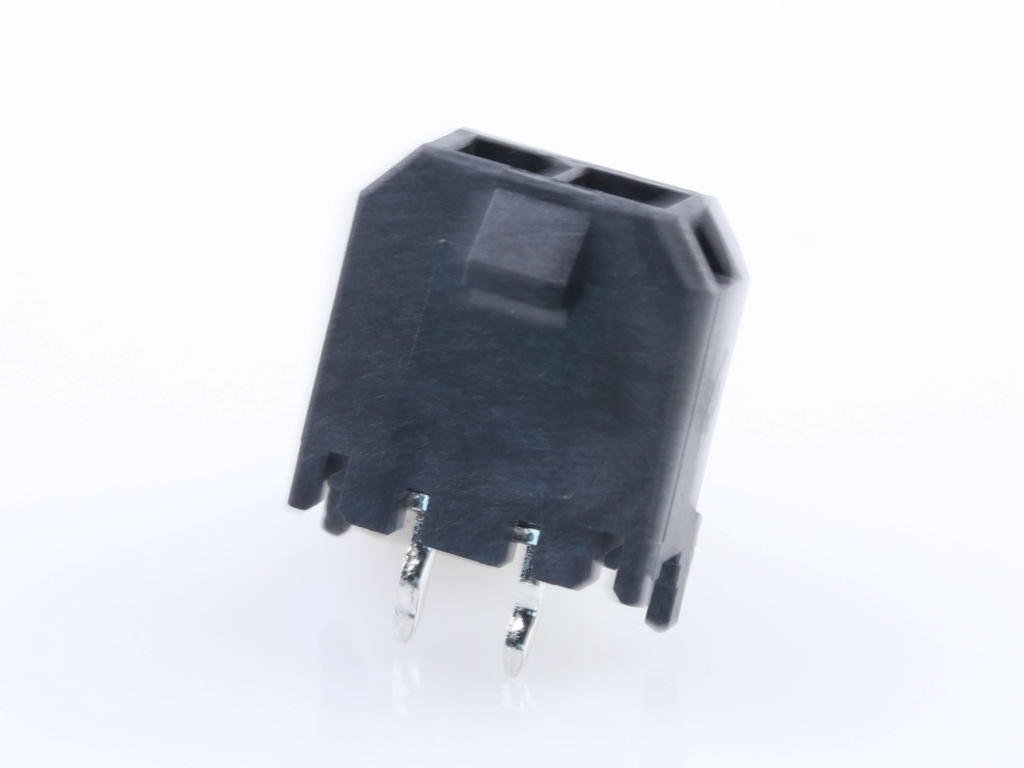

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 2 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43650-0215,
0436500215 |
Where to Buy
Prices starting from US$0.26
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.45
|
198,336
in stock
|
Buy Now |
|
Avnet America
from US$0.35
|
23,529
in stock
|
Buy Now |
|
Heilind Europe
from US$0.32
|
23,458
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.28
|
13,520
in stock
|
Buy Now |
|
element14
from US$0.54
|
11,178
in stock
|
Buy Now |
|
Farnell
from US$0.59
|
9,663
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.37
|
9,024
in stock
|
Buy Now |
|
EME
from US$0.41
|
1,774
in stock
|
Buy Now |
|
TME
from US$0.38
|
1,567
in stock
|
Buy Now |
|
RS
from US$0.70
|
1,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.64
|
348
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.09
|
341
in stock
|
Buy Now |
|
Conrad
from US$0.79
|
341
in stock
|
Buy Now |
|
Avnet Abacus
-
|
40,128
in stock
|
Buy Now |
|
Offical Electronic
-
|
219
in stock
|
Buy Now |
|
Rutronik
from US$0.35
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.71
|
0
in stock
|
Buy Now |
|
Compona
from US$0.33
|
0
in stock
|
Buy Now |
|
Sager
from US$0.26
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.33
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Mated Height | 17.27mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 0.459/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HDR 02P RA | TTI Americas |
| Pin Header, Power, Wire-to-Board, 3 mm, 1 Rows, 2 Contacts, Through Hole Straight | Avnet America |
| MICROFIT 3.0 SR VERT TH PEG TIN | Heilind Europe |
| CONNECTOR, HEADER, 2POS, 1ROW, 3MM | element14 |
| MICRO-FIT 3.0 HEADER | TTI Europe |
| Connector: wire-board | TME |
| Molex 43650-0215 PCB Header | RS |
| Connector, Header, 2Pos, 1Row, 3Mm | Newark Electronics |
| Molex 436500215 Micro-fit Header 2-pin 3mm Pitch Tin Black Vertical | Rapid Electronics |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 2 Rastermaß: 3 mm 436500215 1 St. Tray | Conrad |
| 02P Micro-Fit Header 3,0 | Rutronik |
| HEADER 1 ROW VERTICAL POLARIZING PEG 2 PIN SMT/GLOW WIRE COMPATIBLE TIN PLATE | RS Americas |
| MOLEX 43650-0215 Header Single Row 180° 2p Tin Plating PCB Peg, GW Compatible | Compona |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02P RA | Sager |
