436500216 Micro-Fit 3.0 by Molex

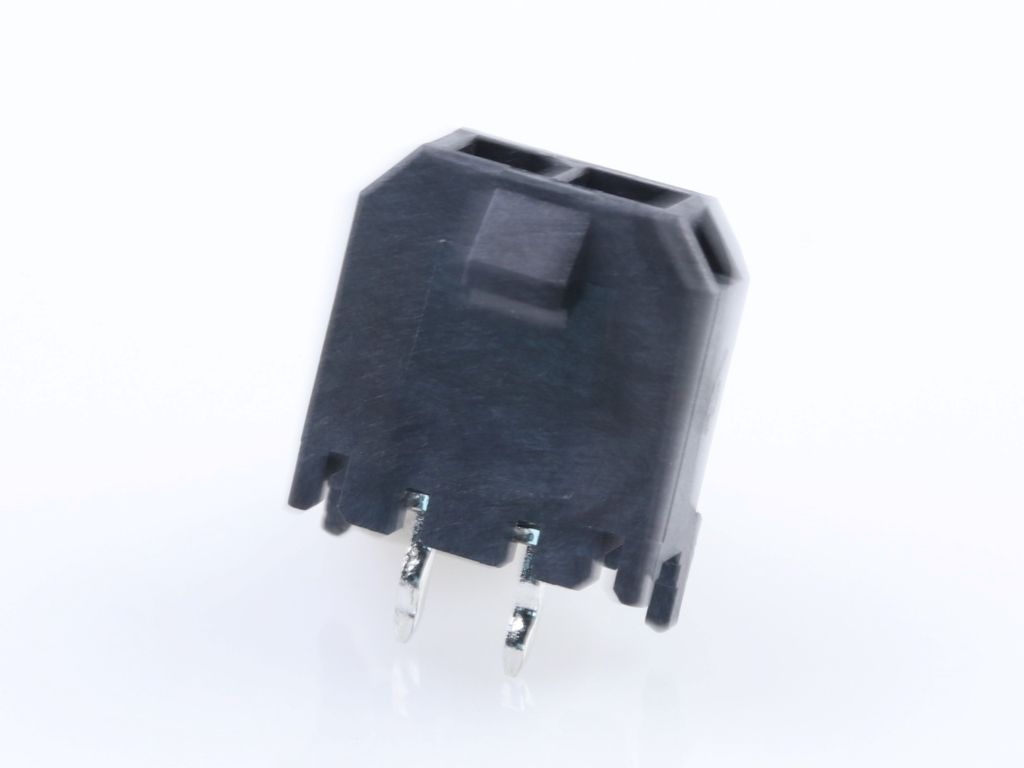

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 2 Circuits, with PCB Polarizing Peg, 0.38µm Gold Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43650-0216,
0436500216 |
Where to Buy
Prices starting from US$0.37
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$0.44
|
278,486
in stock
|
Buy Now |
|
Newark Electronics
from US$0.60
|
59,147
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.37
|
9,750
in stock
|
Buy Now |
|
element14
from US$0.60
|
2,488
in stock
|
Buy Now |
|
Farnell
from US$0.73
|
2,488
in stock
|
Buy Now |
|
TME
from US$0.56
|
186
in stock
|
Buy Now |
|
Rutronik
from US$0.58
|
0
in stock
|
Buy Now |
|
RS
from US$0.97
|
0
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.94
|
0
in stock
|
Buy Now |
|
Compona
from US$0.52
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.47
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.38
|
0
in stock
|
Buy Now |
|
EME
from US$0.60
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Mated Height | 17.27mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 0.459/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICROFIT 3.0 SR VERT TH PEG 15 | Heilind Europe |
| Microfit 3.0 Sr Vert Th Peg 15Au 2Ckt Rohs Compliant: Yes |Molex 43650-0216 | Newark Electronics |
| CONNECTOR, HEADER, 2POS, 1ROW, 3MM | element14 |
| Connector: wire-board | TME |
| 02P Micro-Fit Header GOLD | Rutronik |
| Molex 43650-0216 PCB Header | RS |
| Molex 436500216 Micro-fit 3.0 Vertical Header 3mm Pitch 2 Pins Gold | Rapid Electronics |
| MOLEX 43650-0216 Header Single Row 180° 2p 0.38µm Gold PCB Peg, GW Compatible | Compona |
| 3.00MM MICRO FIT SMT 2CIRCUITS | TTI Europe |
| MICROFIT 3.0 SR VERT TH PEG | TTI Asia |
