436500315 Micro-Fit 3.0 by Molex

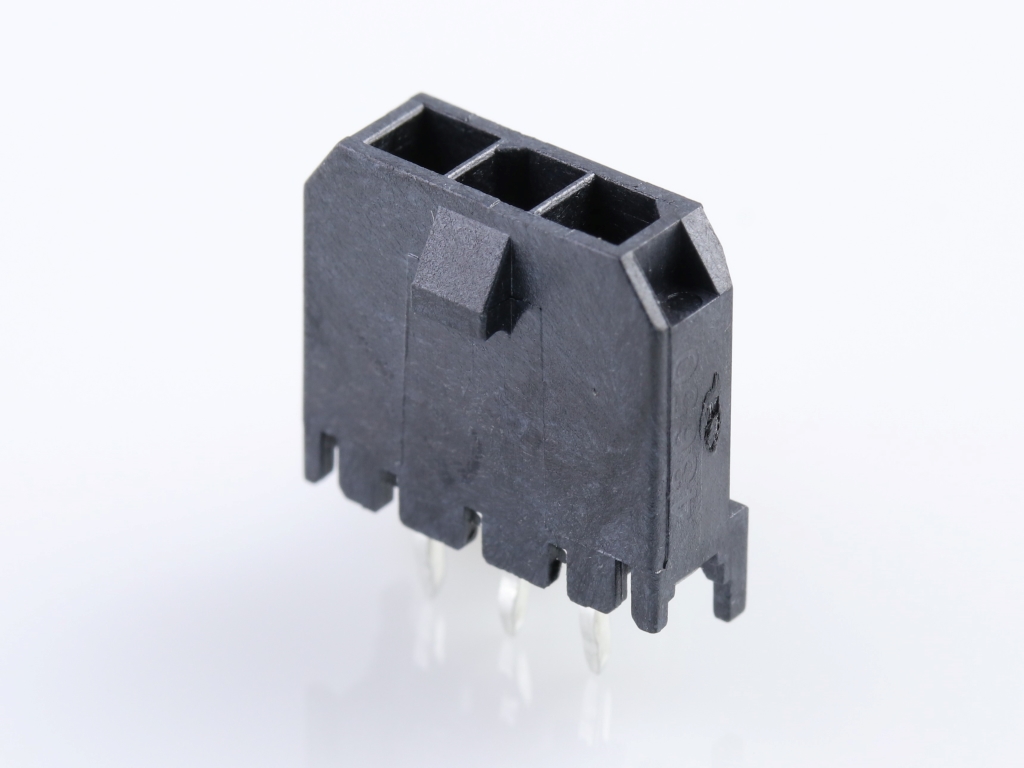

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 3 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43650-0315,
0436500315 |
Where to Buy
Prices starting from US$0.35
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.66
|
106,350
in stock
|
Buy Now |
|
Newark Electronics
from US$0.81
|
39,117
in stock
|
Buy Now |
|
Avnet America
from US$0.50
|
39,117
in stock
|
Buy Now |
|
Farnell
from US$0.76
|
16,370
in stock
|
Buy Now |
|
Heilind Americas
from US$0.37
|
10,656
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.42
|
8,550
in stock
|
Buy Now |
|
Sager
from US$0.35
|
6,213
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.48
|
2,274
in stock
|
Buy Now |
|
RS
from US$0.75
|
711
in stock
|
Buy Now |
|
TME
from US$0.57
|
624
in stock
|
Buy Now |
|
Conrad
from US$1.12
|
373
in stock
|
Buy Now |
|
Avnet Abacus
-
|
24,000
in stock
|
Buy Now |
|
Tongyida Electronic
-
|
7,650
in stock
|
Buy Now |
|
Offical Electronic
-
|
1,750
in stock
|
Buy Now |
|
Rutronik
from US$0.54
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.88
|
0
in stock
|
Buy Now |
|
Compona
from US$0.44
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.39
|
0
in stock
|
Buy Now |
|
EME
from US$0.60
|
0
in stock
|
Buy Now |
|
Walker Component Group
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 17.27mm |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Through Hole |
| Net Weight | 0.595/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Pitch Termination Interface | 3.00mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HDR 03P RA | TTI Americas |
| Microfit 3.0 Sr Vert Th Peg Tin 3 Ckt Rohs Compliant: Yes |Molex 43650-0315 | Newark Electronics |
| Pin Header, Power, 3 mm, 1 Rows, 3 Contacts, Through Hole Straight, Micro-Fit 3.0 43650 | Avnet America |
| CONNECTOR, HEADER, 3POS, 1ROW, 3MM | Farnell |
| MICROFIT 3.0 SR VERT TH PEG TIN | Heilind Americas |
| MICRO-FIT 3.0 HEADER | TTI Europe |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 03P RA | Sager |
| Molex 43650-0315 PCB Header | RS |
| Connector: wire-board | TME |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 3 Rastermaß: 3 mm 436500315 1 St. Tray | Conrad |
| 03P Micro-Fit 3.00MM STRAIGHT | Rutronik |
| CONN | RS Americas |
| MOLEX 43650-0315 Header Single Row 180° 3p Tin Plating PCB Peg, GW Compatible | Compona |
| MICRO-FIT 3.0 HEADERP RA | TTI Asia |
