436500319 Micro-Fit 3.0 by Molex

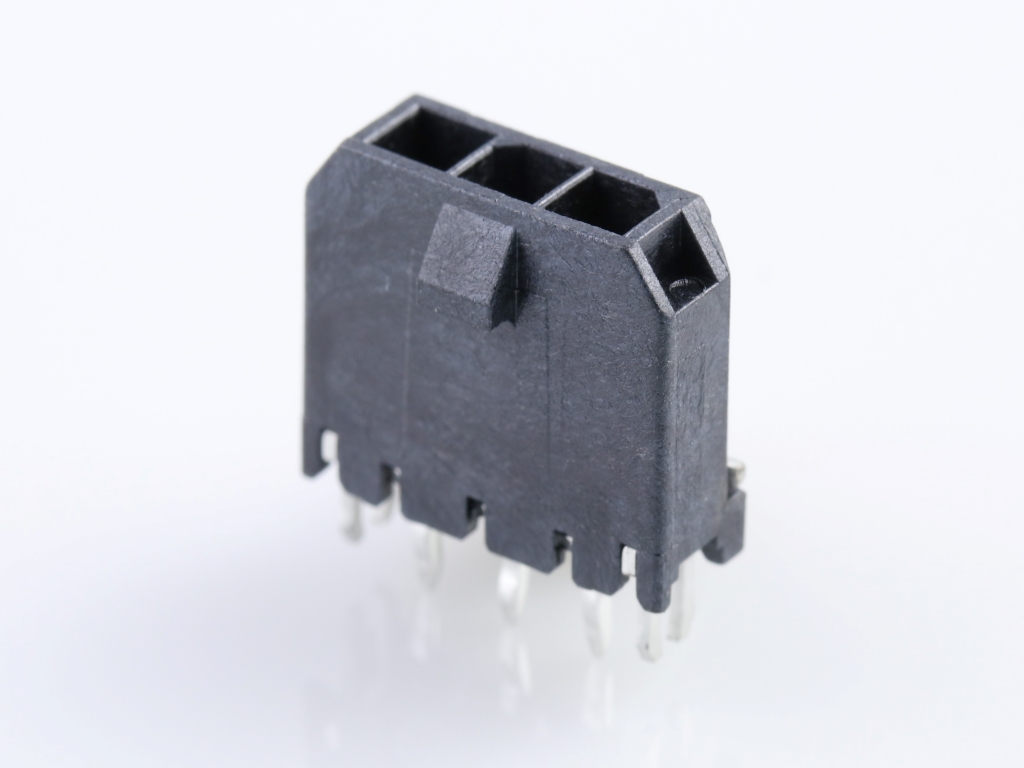

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 3 Circuits, with PCB Press-fit Metal Retention Clip, 0.38µm Gold Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43650-0319,
0436500319 |
Where to Buy
Prices starting from US$0.42
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.98
|
32,500
in stock
|
Buy Now |
|
TME
from US$0.78
|
2,050
in stock
|
Buy Now |
|
Conrad
from US$1.10
|
2,050
in stock
|
Buy Now |
|
Farnell
from US$1.19
|
1,845
in stock
|
Buy Now |
|
RS
from US$1.30
|
1,500
in stock
|
Buy Now |
|
element14
from US$1.04
|
532
in stock
|
Buy Now |
|
Heilind Americas
from US$0.70
|
454
in stock
|
Buy Now |
|
Newark Electronics
from US$1.15
|
82
in stock
|
Buy Now |
|
|
RS Americas
from US$0.42
|
81
in stock
|
Buy Now |
|
Avnet America
from US$0.85
|
0
in stock
|
Buy Now |
|
Compona
from US$0.74
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.79
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.63
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.63
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 17.27mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 0.688/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HDR 03P VT | TTI Americas |
| Connector: wire-board | TME |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 3 Rastermaß: 3.00 mm 436500319 1 St. Tray | Conrad |
| CONN, HEADER, 3POS, 1ROW, 3MM, TH | Farnell |
| Molex 43650-0319 PCB Header | RS |
| CONN, HEADER, 3POS, 1ROW, 3MM | element14 |
| MICROFIT 3.0 SR VERT TH CLIP 5AU 3CKT | Heilind Americas |
| Wtb Conn, Header, 3Pos, 1Row, 3Mm | Newark Electronics |
| MICROFIT 3.0 SR VERT TH CLIP 15AU 3CKT | RS Americas |
| Conn Wire to Board HDR 3 POS 3mm Solder ST SMD Tray | Avnet America |
| MOLEX 436500319 Plug Square MicroFit 3p THT | Compona |
| MICRO-FIT 3.0 HEADER SMT 3CIRC | TTI Europe |
