436500327 Micro-Fit 3.0 by Molex

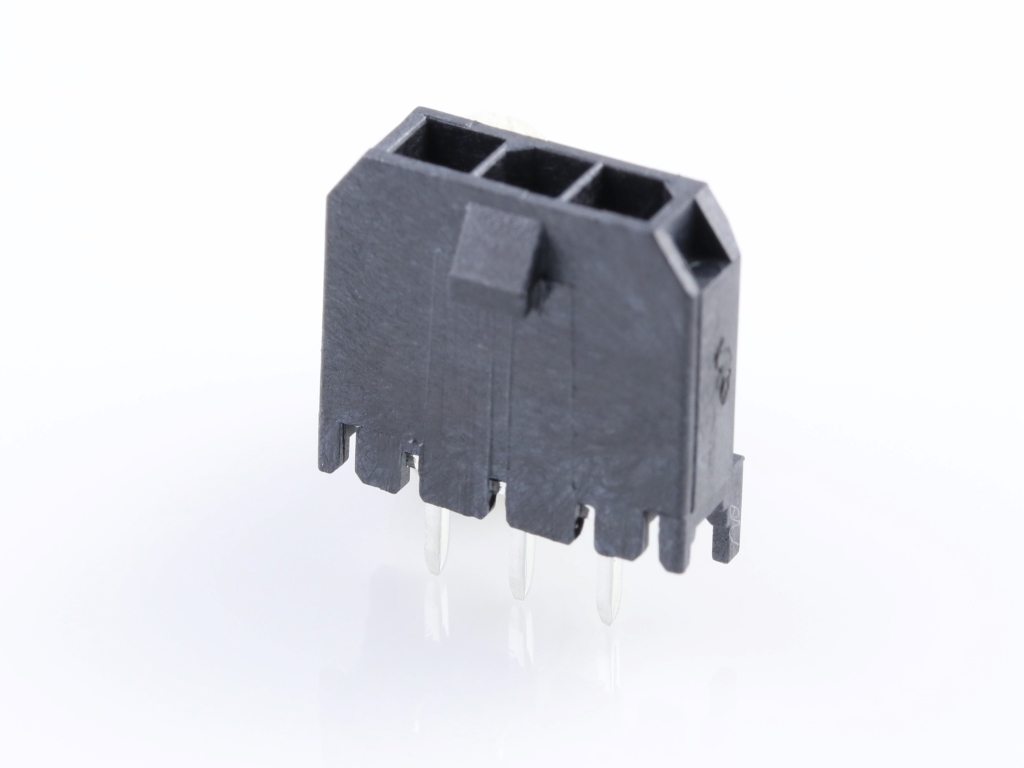

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 3 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43650-0327,
0436500327 |
Where to Buy
Prices starting from US$0.42
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.74
|
12,332
in stock
|
Buy Now |
|
TTI Europe
from US$0.59
|
9,000
in stock
|
Buy Now |
|
Conrad
from US$1.13
|
5,160
in stock
|
Buy Now |
|
Farnell
from US$0.71
|
5,100
in stock
|
Buy Now |
|
Heilind Americas
from US$0.46
|
2,886
in stock
|
Buy Now |
|
element14
from US$0.68
|
1,784
in stock
|
Buy Now |
|
TME
from US$0.55
|
158
in stock
|
Buy Now |
|
RS
from US$0.81
|
85
in stock
|
Buy Now |
|
Rutronik
from US$0.50
|
0
in stock
|
Buy Now |
|
Compona
from US$0.48
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.42
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.47
|
0
in stock
|
Buy Now |
|
EME
from US$0.52
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Length | 12.65mm |
| Lock To Mating Part | Yes |
| Mated Height | 17.27mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Through Hole |
| Net Weight | 0.598/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.18mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Microfit 3.0 Sr Vert Th Peg Tin 3Ckt Rohs Compliant: Yes |Molex 43650-0327 | Newark Electronics |
| MICRO-FIT 3.0 HEADER 3CIRCUITS | TTI Europe |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 3 Rastermaß: 3 mm 436500327 1 St. Tray | Conrad |
| CONN, HEADER, 3POS, 1ROW, 3MM, TH | Farnell |
| MICROFIT 3.0 SR VERT TH PEG T N 3CKT | Heilind Americas |
| CONNECTOR, HEADER, 3POS, 1ROW, 3MM | element14 |
| Connector: wire-board | TME |
| Molex 43650-0327 PCB Header | RS |
| 03P Micro-Fit GLOWWIRE W PEG E | Rutronik |
| MOLEX 43650-0327 Header Single Row 180° 3p Tin Plating PCB Peg, GW Compatible | Compona |
| MICROFIT 3.0 SR VERT TH PEG TI | TTI Asia |
