436500403 Micro-Fit 3.0 by Molex

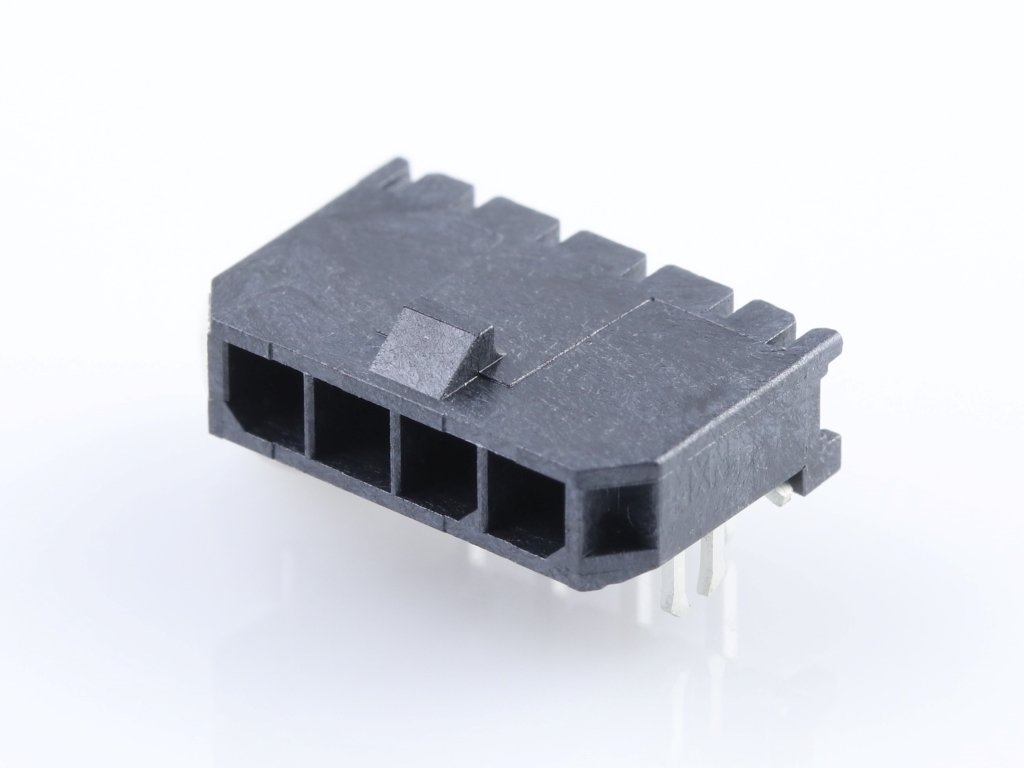

Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 4 Circuits, with PCB Press-fit Metal Retention Clip, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43650-0403,
0436500403 |
Where to Buy
Prices starting from US$0.60
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.94
|
10,920
in stock
|
Buy Now |
|
Newark Electronics
from US$1.10
|
3,181
in stock
|
Buy Now |
|
Avnet America
from US$0.75
|
2,380
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.85
|
560
in stock
|
Buy Now |
|
TME
from US$0.85
|
40
in stock
|
Buy Now |
|
Rutronik
from US$0.82
|
0
in stock
|
Buy Now |
|
RS
from US$1.31
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.44
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.43
|
0
in stock
|
Buy Now |
|
Sager
from US$0.83
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.94
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.60
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.18
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.87
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 6.98mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Through Hole |
| Net Weight | 0.918/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HDR 04P RA | TTI Americas |
| Plug & Socket Connector, Header, 4Pos, 3Mm | Newark Electronics |
| Conn Wire to Board HDR 4 POS 3mm Solder RA Thru-Hole Tray | Avnet America |
| MICROFIT 3.0 SR RA SMT 4CKT | TTI Europe |
| Connector: wire-board | TME |
| 04P Micro-Fit Header R/A SMT Black | Rutronik |
| Molex 43650-0403 PCB Header | RS |
| HEADERS, HDR R/A SINGLE SMT 4 PCB RETENTION CLIPS | RS Americas |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 4 Rastermaß: 3 mm 436500403 1 St. Tray | Conrad |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 04P RA | Sager |
| MICROFIT 3.0 SR RA TH CLIP TI 4CKT | Heilind Americas |
| CONN, R/A HEADER, 4POS, 1ROW, 3MM, TH | Farnell |
