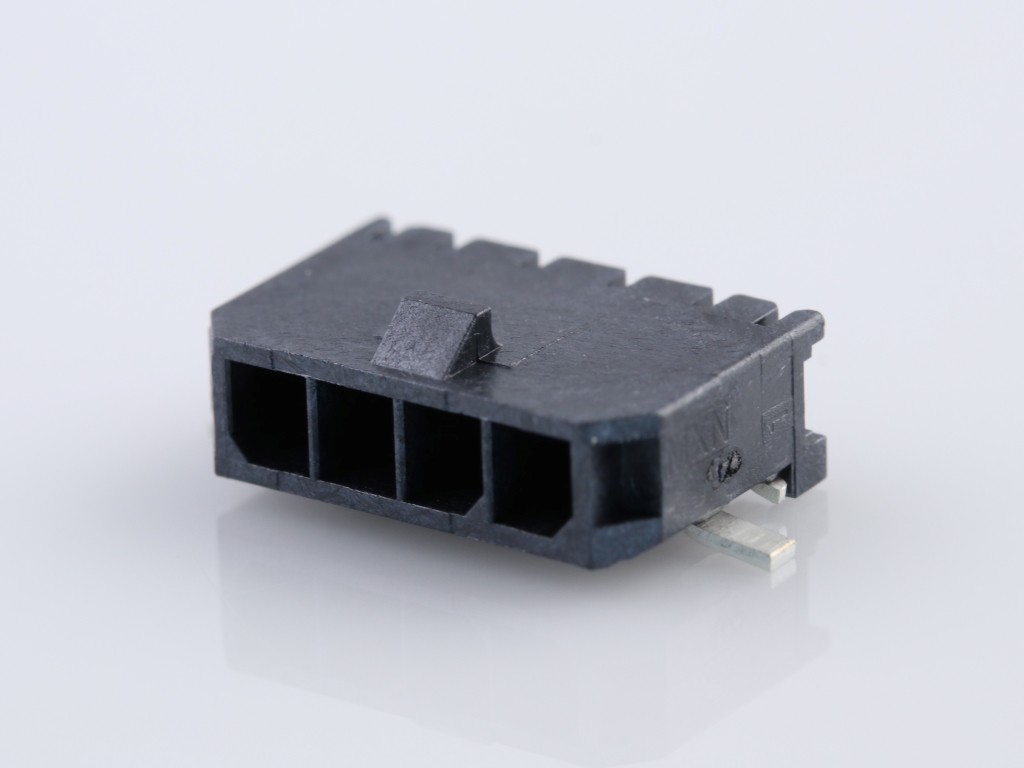

436500412 Micro-Fit 3.0 by Molex
Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 4 Circuits, with Solder Tab, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43650-0412,
0436500412 |
Where to Buy
Prices starting from US$1.03
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.07
|
40,000
in stock
|
Buy Now |
|
Rutronik
from US$1.12
|
7,680
in stock
|
Buy Now |
|
TTI Americas
from US$1.04
|
7,360
in stock
|
Buy Now |
|
RS
from US$1.90
|
2,300
in stock
|
Buy Now |
|
TME
from US$1.52
|
1,742
in stock
|
Buy Now |
|
element14
from US$2.41
|
1,089
in stock
|
Buy Now |
|
Farnell
from US$2.92
|
1,089
in stock
|
Buy Now |
|
Heilind Americas
from US$2.00
|
5
in stock
|
Buy Now |
|
Tongyida Electronic
-
|
13,440
in stock
|
Buy Now |
|
Offical Electronic
-
|
18
in stock
|
Buy Now |
|
Avnet America
from US$1.16
|
0
in stock
|
Buy Now |
|
Rapid Electronics
from US$2.81
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.78
|
0
in stock
|
Buy Now |
|
Compona
from US$1.09
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.03
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.16
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.07
|
0
in stock
|
Buy Now |
|
Walker Component Group
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Mated Height | 6.98mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 0.823/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Microfit 3.0 Sr Ra Smt Nail Tin 4Ckt Rohs Compliant: Yes |Molex 43650-0412 | Newark Electronics |
| 04P Micro-Fit 3.00MM 90° SMT | Rutronik |
| MICRO-FIT 3.0 HDR 04P RA | TTI Americas |
| Molex 43650-0412 PCB Header | RS |
| Connector: wire-board | TME |
| CONNECTOR, HEADER, 4POS, 1ROW, 3MM | element14 |
| CUT TAPE - MICROFIT 3.0 SR RA SMT NAIL TI | Heilind Americas |
| Pin Header, Power, Wire-to-Board, 3 mm, 1 Rows, 4 Contacts, Surface Mount Right Angle | Avnet America |
| Molex 436500412 Micro-fit 3.0 Right-angle Header 4 Pins 3mm Pitch Black | Rapid Electronics |
| CONN, RECT, HEADER, 4 CIR, PCB, MICROFIT 3.0, RT ANGLE, SINGLE, SMT, W/TAB, TIN | RS Americas |
| MOLEX 43650-0412 Header Single Row 90° 4p Tin Plating Solder Tab, GW Compatible | Compona |
| MICROFIT 3.0 SR RA SMT NAIL T | TTI Europe |
| MICROFIT 3.0 SR RA SMT NAIL TI | Heilind Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 436500412?
Additional datasheets, footprints and schematics for 436500412 are listed on our Part Details page. You can also find images and similar parts to 436500412 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 436500412 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 436500412 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 436500412 fall under?
The 436500412 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 436500412 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 436500412 you can contact the distributor directly for product support, shipping queries etc.
Is the 436500412 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 436500412 have stock available?
Authorised distributors including Newark Electronics, Rutronik, TTI Americas, RS and TME have stock available or on a lead time for 436500412.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 436500412 often in real-time on the comparison pages.
What if I can't find stock of 436500412?
You can fill out our help required form which you can use to request a quote for 436500412 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
