436500413 Micro-Fit 3.0 by Molex

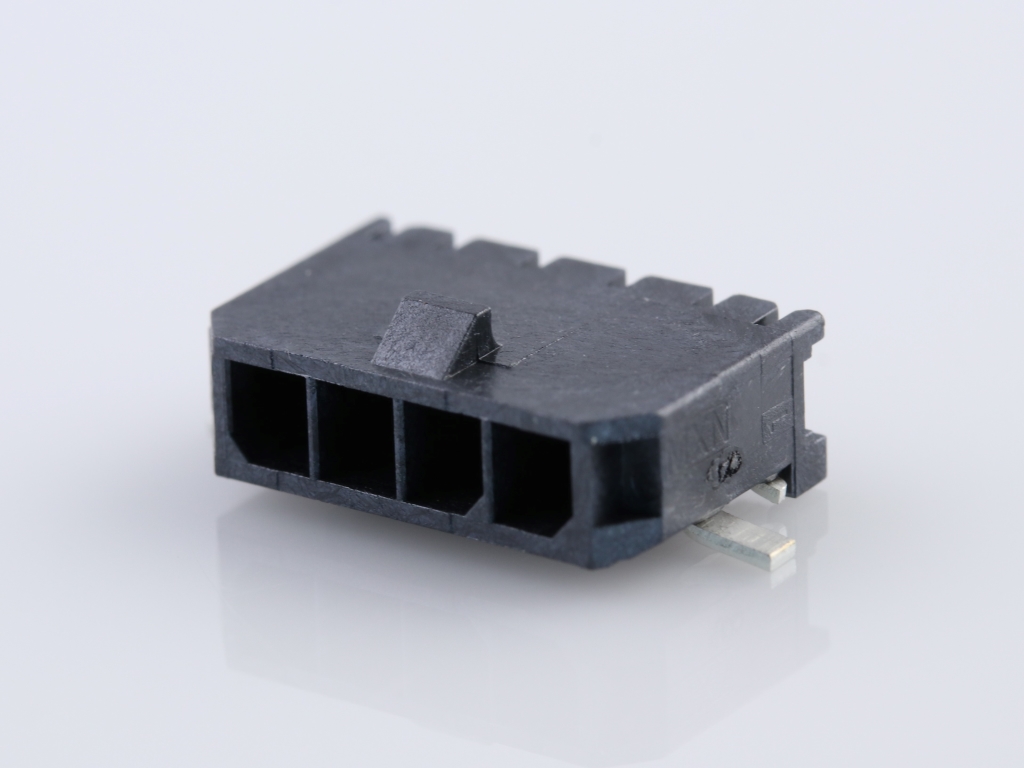

Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 4 Circuits, with Solder Tab, 0.38µm Gold Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43650-0413,
0436500413 |
Where to Buy
Prices starting from US$1.38
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.38
|
10,560
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.84
|
8,320
in stock
|
Buy Now |
|
Farnell
from US$2.25
|
2,880
in stock
|
Buy Now |
|
Newark Electronics
from US$2.12
|
960
in stock
|
Buy Now |
|
element14
from US$2.41
|
935
in stock
|
Buy Now |
|
RS
from US$3.21
|
285
in stock
|
Buy Now |
|
TME
from US$1.83
|
1
in stock
|
Buy Now |
|
Avnet America
from US$1.99
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.74
|
0
in stock
|
Buy Now |
|
Compona
from US$1.45
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.81
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.46
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.45
|
0
in stock
|
Buy Now |
|
EME
from US$1.92
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Mated Height | 6.98mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 0.826/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HEADER | TTI Europe |
| MICRO-FIT 3.0 HDR 04P RA | TTI Americas |
| CONN, R/A HEADER, 4POS, 1ROW, 3MM, SMT | Farnell |
| Microfit 3.0 Sr Ra Smt Nail 15Au 4Ckt |Molex 43650-0413 | Newark Electronics |
| CONNECTOR, HEADER, 4POS, 1ROW, 3MM | element14 |
| Molex 436500413 PCB Header | RS |
| Connector: wire-board | TME |
| Conn Shrouded Header 4 POS 3mm Solder Right Angle Surface Mount | Avnet America |
| HEADERS, R/A HDR SMT 4P GOLD W/SOLDER LUG | RS Americas |
| MOLEX 43650-0413 Header Single Row 90° 4p 0.38µm Gold Solder Tab, GW Compatible | Compona |
| MICROFIT 3.0 SR RA SMT NAIL 1 AU 4CKT | Heilind Americas |
