436500418 Micro-Fit 3.0 by Molex

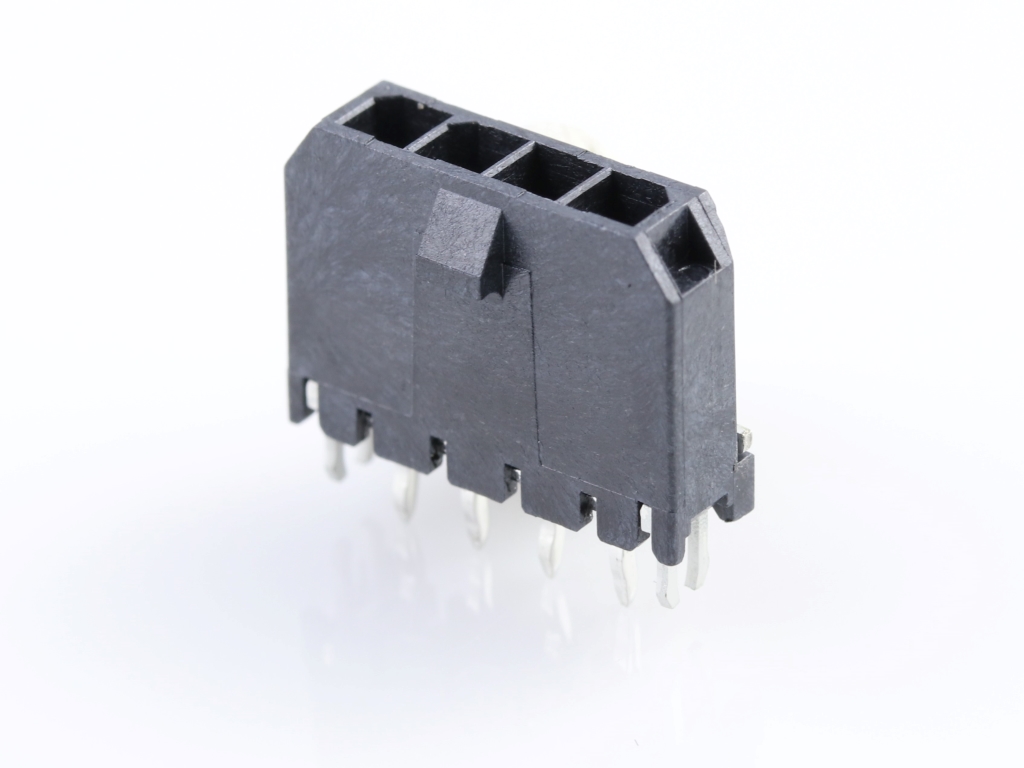

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 4 Circuits, with PCB Press-fit Metal Retention Clip, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43650-0418,
0436500418 |
Where to Buy
Prices starting from US$0.54
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.62
|
4,072
in stock
|
Buy Now |
|
Newark Electronics
from US$0.94
|
765
in stock
|
Buy Now |
|
Conrad
from US$1.32
|
765
in stock
|
Buy Now |
|
TME
from US$0.66
|
306
in stock
|
Buy Now |
|
TTI Europe
from US$0.71
|
120
in stock
|
Buy Now |
|
RS
from US$0.62
|
90
in stock
|
Buy Now |
|
Offical Electronic
-
|
540
in stock
|
Buy Now |
|
Avnet America
from US$0.87
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.12
|
0
in stock
|
Buy Now |
|
element14
from US$0.66
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.61
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.54
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.76
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.63
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 17.27mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 0.830/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICROFIT 3.0 SR VERT TH CLIP IN 4CKT | Heilind Americas |
| Header Connector, pcb Mount, recept,4 Contacts, pin,0.118 Pitch, pc Tail W/Retnn Terminal Rohs Compliant: Yes |Molex 43650-0418 | Newark Electronics |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 4 Rastermaß: 3.00 mm 436500418 1 St. Tray | Conrad |
| Connector: wire-board | TME |
| 3.00MM MICRO FIT HEADER 4CIRCU | TTI Europe |
| Molex 43650-0418 PCB Header | RS |
| Conn Shrouded Header 4 POS 3mm Solder ST Through Hole | Avnet America |
| HEADER 3.00MM, WTB, SINGLE ROW, VERT, 4W | RS Americas |
| CONNECTOR, HEADER, 4POS, 1ROW, 3MM | element14 |
| MICRO-FIT 3.0 HDR 04P VT | TTI Americas |
| MICROFIT 3.0 SR VERT TH CLIP T | TTI Asia |
