436500521 Micro-Fit 3.0 by Molex

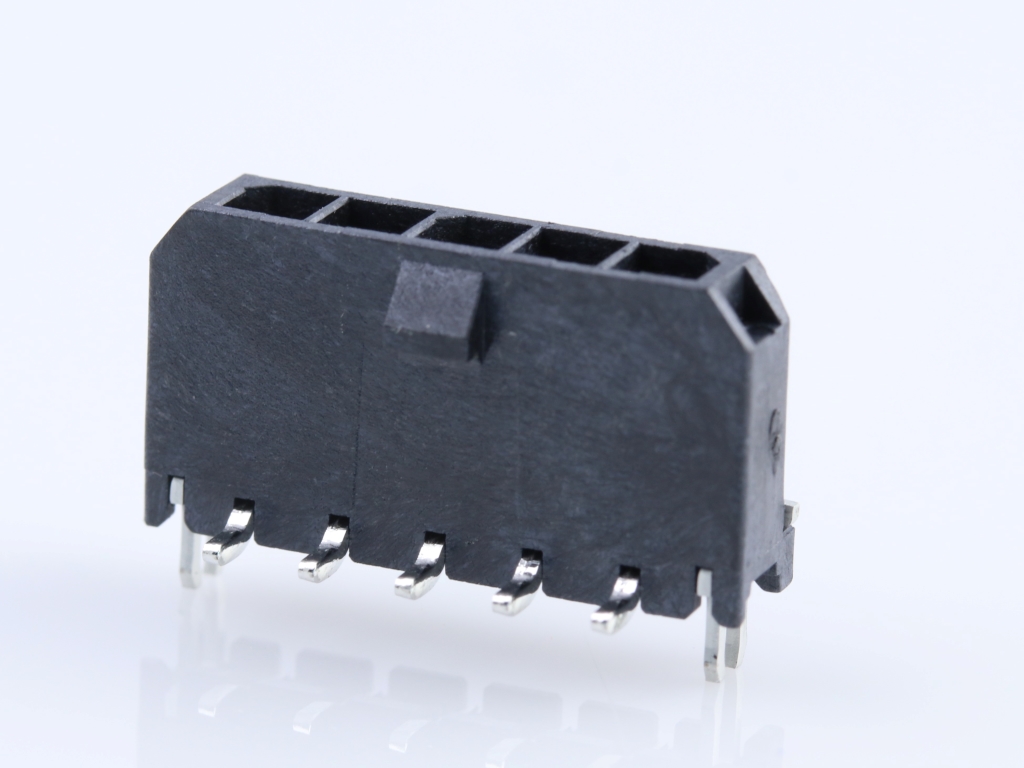

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 5 Circuits, with PCB Press-fit Metal Retention Clip, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43650-0521,
0436500521 |
Where to Buy
Prices starting from US$1.12
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$2.02
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$1.65
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.60
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.61
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.12
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.40
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$1.93
|
0
in stock
|
Buy Now |
|
EME
from US$1.49
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Mated Height | 17.27mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.080/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 43650-0521 PCB Header | RS |
| Header Connector, pcb Mount, recept,5 Contacts, pin,0.118 Pitch, surface Mount Terminal |Molex 43650-0521 | Newark Electronics |
| HEADER 3.00MM, SMT, SINGLE ROW, VERT, 5W | RS Americas |
| MICROFIT 3.0 SR VERT SMT CLIP TIN 5CKT | Heilind Americas |
| HEADER, 3.0MM, 5WAY | Farnell |
| MICROFIT 3.0 SR VERT SMT CLIP | TTI Asia |
| Conn Power HDR 5 POS 3mm Solder ST SMD 5 Terminal 1 Port Embossed T/R | Avnet Abacus |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 436500521?
Additional datasheets, footprints and schematics for 436500521 are listed on our Part Details page. You can also find images and similar parts to 436500521 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 436500521 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 436500521 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 436500521 fall under?
The 436500521 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 436500521 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 436500521 you can contact the distributor directly for product support, shipping queries etc.
Is the 436500521 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 436500521 have stock available?
Authorised distributors including RS, Newark Electronics, RS Americas, Heilind Americas and Heilind Europe have stock available or on a lead time for 436500521.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 436500521 often in real-time on the comparison pages.
What if I can't find stock of 436500521?
You can fill out our help required form which you can use to request a quote for 436500521 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
