436500615 Micro-Fit 3.0 by Molex

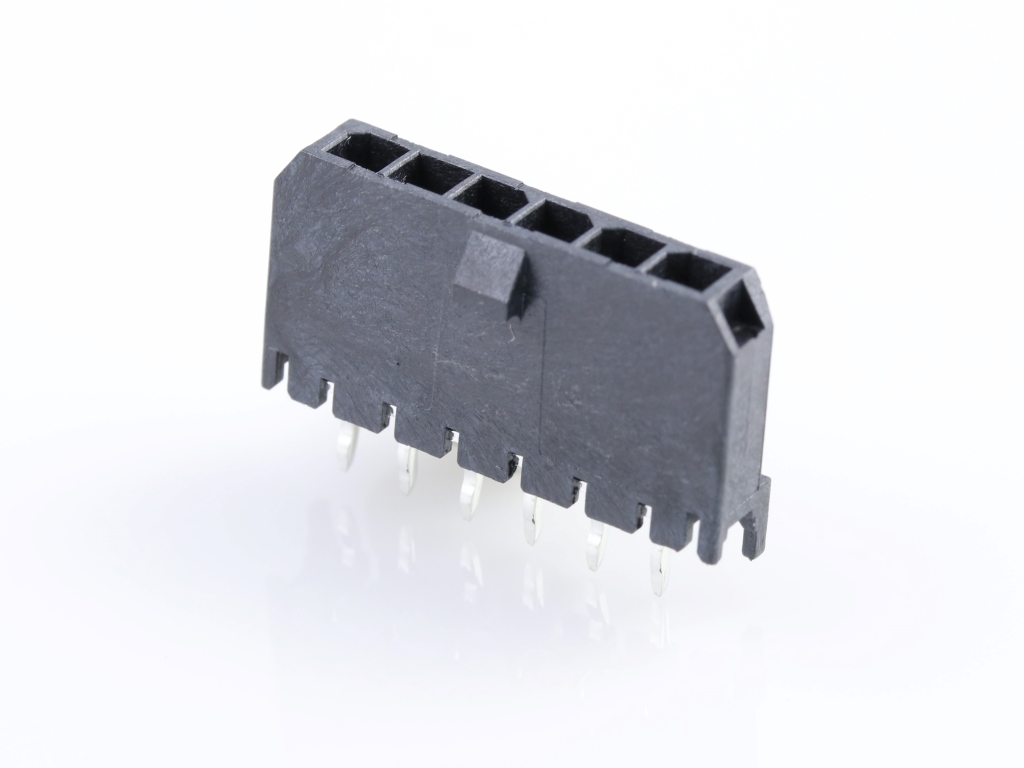

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 6 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43650-0615,
0436500615 |
Where to Buy
Prices starting from US$0.53
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.53
|
11,807
in stock
|
Buy Now |
|
Farnell
from US$0.79
|
10,710
in stock
|
Buy Now |
|
Heilind Americas
from US$0.53
|
6,700
in stock
|
Buy Now |
|
TTI Europe
from US$0.61
|
1,710
in stock
|
Buy Now |
|
TME
from US$0.95
|
136
in stock
|
Buy Now |
|
RS Americas
from US$0.59
|
90
in stock
|
Buy Now |
|
|
RS
from US$0.77
|
8
in stock
|
Buy Now |
|
Tongyida Electronic
-
|
1,530
in stock
|
Buy Now |
|
Rutronik
from US$0.84
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$0.76
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.61
|
0
in stock
|
Buy Now |
|
Compona
from US$0.72
|
0
in stock
|
Buy Now |
|
element14
from US$0.81
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.68
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.66
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.70
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
|
Walker Component Group
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Mated Height | 17.27mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.016/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 6 Rastermaß: 3.00 mm 436500615 1 St. Tray | Conrad |
| PIN HEADERS | Farnell |
| MICROFIT 3.0 SR VERT TH PEG TIN 6CKT | Heilind Americas |
| MICRO-FIT 3.0 HEADER | TTI Europe |
| Connector: wire-board | TME |
| 6WAY VERTICAL THROUGH HOLE PLATED HEADER | RS Americas |
| Molex 43650-0615 PCB Header | RS |
| 06P Micro-Fit 3.00MM WHIT PEG | Rutronik |
| Microfit 3.0 Sr Vert Th Peg Tin 6 Ckt Rohs Compliant: Yes |Molex 43650-0615 | Newark Electronics |
| Conn Shrouded Header 6 POS 3mm Solder Straight Through Hole | Avnet America |
| MOLEX 43650-0615 Header Single Row 180° 6p Tin Plating PCB Peg, GW Compatible | Compona |
| CONNECTOR, HEADER, 6POS, 1ROW, 3MM | element14 |
| MICRO-FIT 3.0 HDR 06P VT | TTI Americas |
