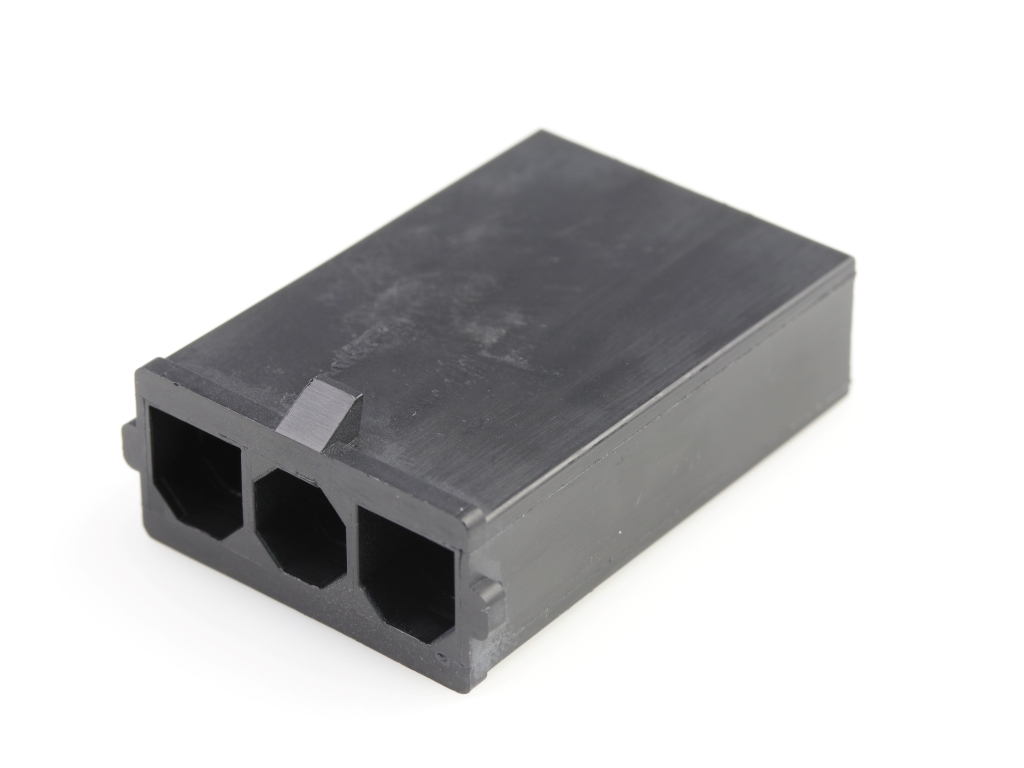

436802003 Sabre by Molex
Sabre Plug Housing, 7.50mm Pitch, UL 94V-0, 3 Circuits, Black, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43680-2003,
0436802003 |
Where to Buy
Prices starting from US$0.34
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.40
|
44,419
in stock
|
Buy Now |
|
Conrad
from US$1.20
|
27,343
in stock
|
Buy Now |
|
element14
from US$0.87
|
586
in stock
|
Buy Now |
|
RS Americas
from US$0.76
|
94
in stock
|
Buy Now |
|
|
RS
from US$1.52
|
25
in stock
|
Buy Now |
|
Avnet America
from US$0.34
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Sabre |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 3 |
| Color Resin | Black |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 4.621/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 7.50mm |
| Pitch Termination Interface | 7.50mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +75°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SABRE PLUG WTW SR V-0 3CKT | Heilind Americas |
| Molex Stiftgehäuse-Kabel Polzahl Gesamt 3 Rastermaß: 7.50 mm 436802003 1 St. Bulk | Conrad |
| CONNECTOR HOUSING, PLUG, 3POS, 7.5MM | element14 |
| SABRE SERIES 7.49MM PITCH 3 WAY 1 ROW MALE STRAIGHT PCB HOUSING 43680 | RS Americas |
| Molex 43680-2003 Connector Housing | RS |
