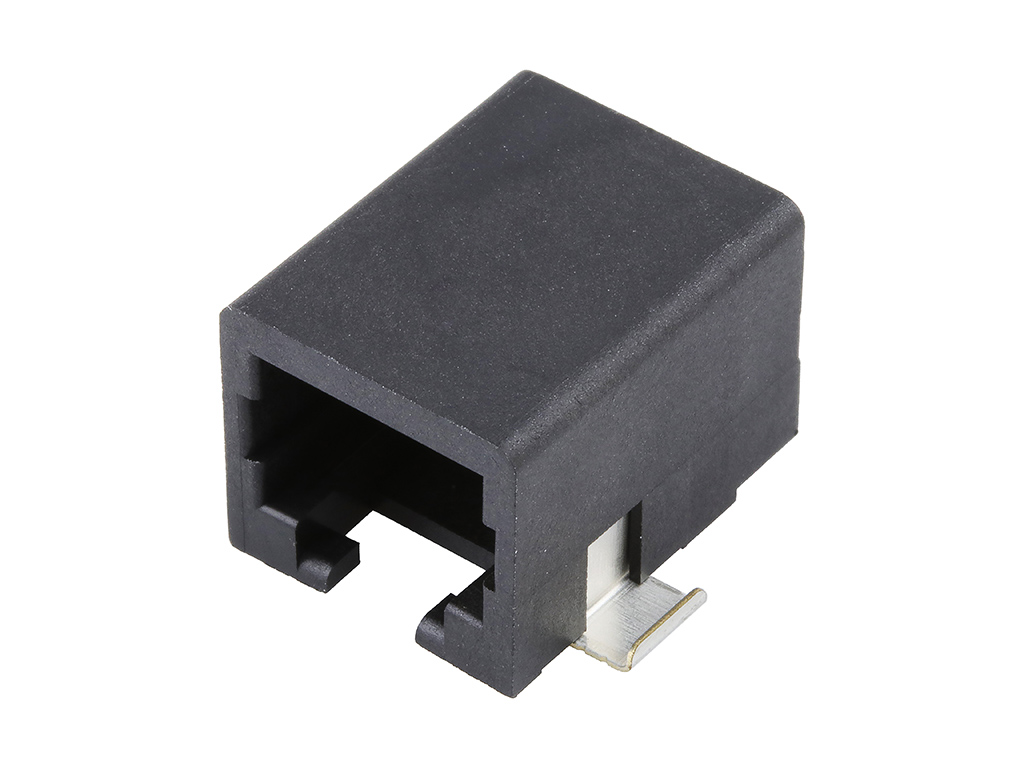

437436001 Modular Jack 6/6 by Molex
Modular Jack, Right-Angle, Low Profile, Surface Mount, 6/6
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43743-6001,
0437436001 |
Where to Buy
Prices starting from US$1.24
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.24
|
4,650
in stock
|
Buy Now |
|
Newark Electronics
from US$2.01
|
3,450
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.57
|
1,200
in stock
|
Buy Now |
|
Farnell
from US$2.02
|
945
in stock
|
Buy Now |
|
Heilind Americas
from US$1.26
|
787
in stock
|
Buy Now |
|
RS
from US$2.10
|
81
in stock
|
Buy Now |
|
Rutronik
from US$1.63
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.72
|
0
in stock
|
Buy Now |
|
TME
from US$1.94
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.84
|
0
in stock
|
Buy Now |
|
element14
from US$2.95
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.49
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.74mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.430/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Surface Mount |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MDJCK 6/6 RA SMT LOPRO | TTI Americas |
| Phone Connector, pcb Mount,6 Contacts, pin, surface Mount Terminal, locking Mech |Molex 43743-6001 | Newark Electronics |
| MOD CONN, R/A JACK, 6P6C, 1PORT, SMT | Farnell |
| 6/6 CKT R/A SMT MODJACK 595PLT | Heilind Americas |
| Molex 43743-6001 RJ45 Connector | RS |
| 6/6 Modular_Jack 90° SMT | Rutronik |
| Connector: RJ11 | TME |
| 6/6 CKT R/A SMT MODJACK 595PLT 437436001 | RS Americas |
| RJ11 CONNECTOR, JACK, 6P6C, 1PORT, SMD | element14 |
