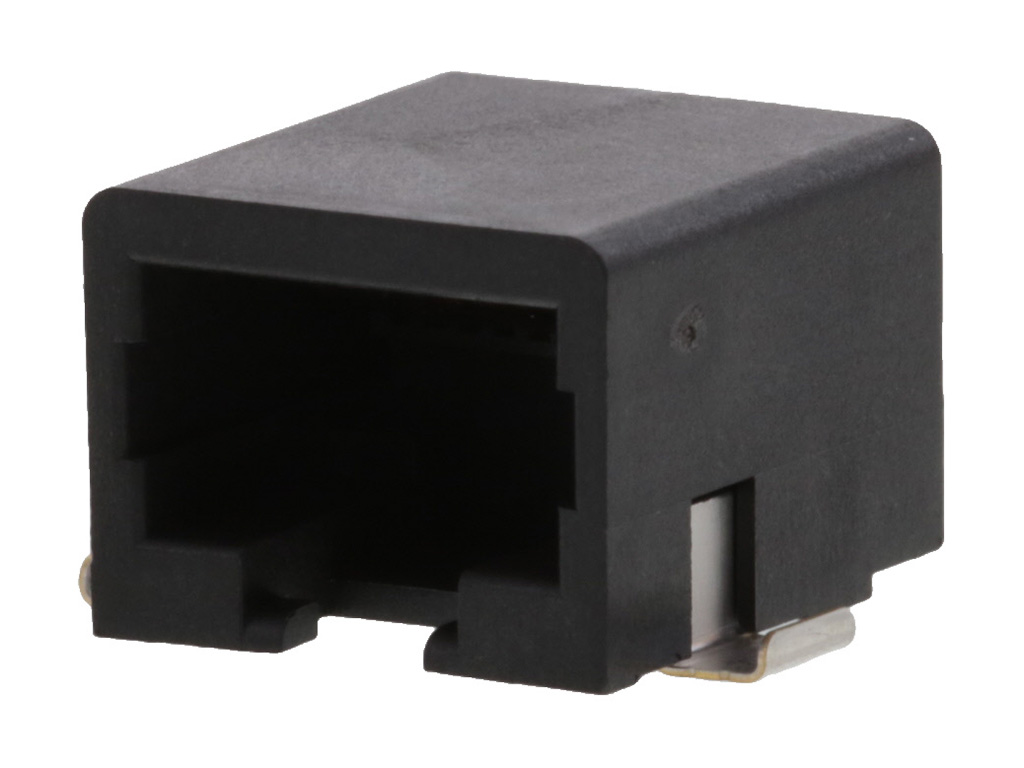

437438101 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, Surface Mount, 8/8
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43743-8101,
0437438101 |
Where to Buy
Prices starting from US$1.16
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.19
|
8,850
in stock
|
Buy Now |
|
Farnell
from US$1.90
|
7,965
in stock
|
Buy Now |
|
TTI Europe
from US$1.36
|
1,200
in stock
|
Buy Now |
|
Newark Electronics
from US$2.35
|
150
in stock
|
Buy Now |
|
element14
from US$1.97
|
150
in stock
|
Buy Now |
|
RS
from US$2.72
|
0
in stock
|
Buy Now |
|
TME
from US$2.33
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.26
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.73
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.16
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.74mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.772/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Surface Mount |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex R/A SURF MNT W/FITNL 437438101 437438101 1 St. | Conrad |
| MOD CONN, R/A RJ45 JACK, 8P8C, 1PORT/SMT | Farnell |
| 8/8 MOD JACK RIGHT LOW PRO | TTI Europe |
| Rj45 Connector, Jack, 8P8C, 1Port, Smt | Newark Electronics |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, SMT | element14 |
| Molex 43743-8101 RJ45 Connector | RS |
| Connector: RJ45 | TME |
| 8/8 CKT R/A SMT MODJACK 595PL 437438101 | Heilind Americas |
| MDJCK 8/8 RA SMT LOPRO | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 437438101?
Additional datasheets, footprints and schematics for 437438101 are listed on our Part Details page. You can also find images and similar parts to 437438101 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 437438101 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 437438101 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 437438101 fall under?
The 437438101 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 437438101 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 437438101 you can contact the distributor directly for product support, shipping queries etc.
Is the 437438101 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 437438101 have stock available?
Authorised distributors including Conrad, Farnell, TTI Europe, Newark Electronics and element14 have stock available or on a lead time for 437438101.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 437438101 often in real-time on the comparison pages.
What if I can't find stock of 437438101?
You can fill out our help required form which you can use to request a quote for 437438101 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
