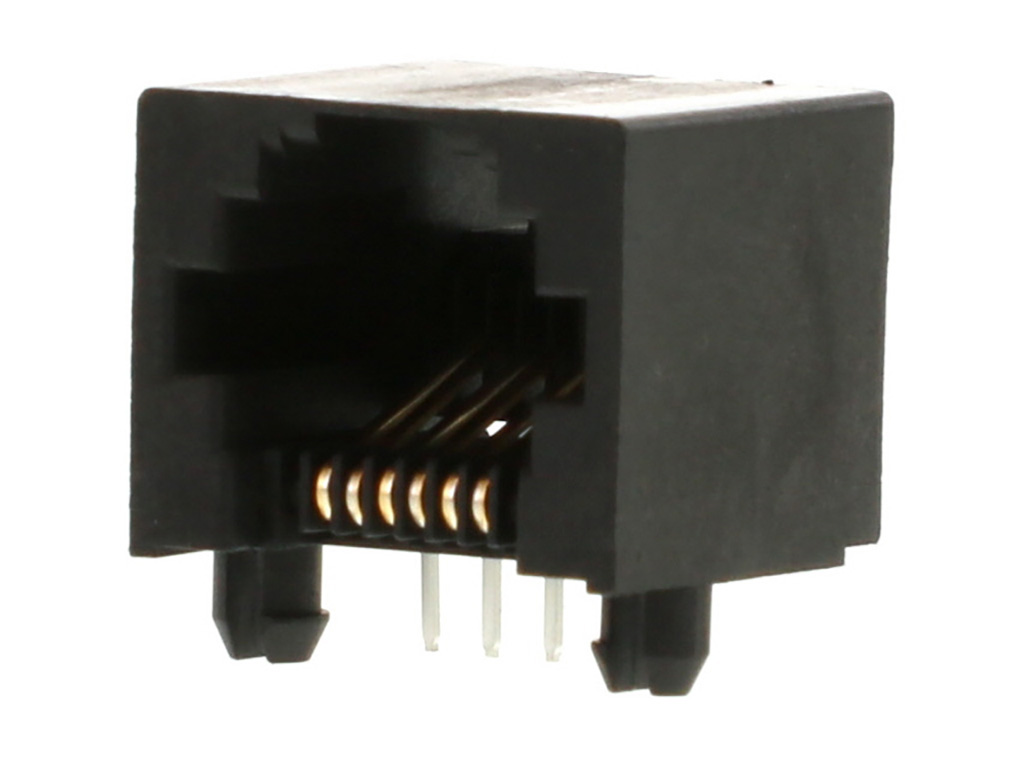

438600002 Modular Jack 6/6 by Molex
Modular Jack, Right-Angle, Low Profile, Inverted, 6/6
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43860-0002,
0438600002 |
Where to Buy
Prices starting from US$0.51
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.10
|
14,315
in stock
|
Buy Now |
|
Conrad
from US$0.84
|
8,820
in stock
|
Buy Now |
|
Farnell
from US$1.06
|
8,820
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.99
|
3,255
in stock
|
Buy Now |
|
RS
from US$1.54
|
851
in stock
|
Buy Now |
|
TME
from US$0.67
|
745
in stock
|
Buy Now |
|
Heilind Americas
from US$0.71
|
531
in stock
|
Buy Now |
|
Newark Electronics
from US$1.28
|
460
in stock
|
Buy Now |
|
element14
from US$1.00
|
460
in stock
|
Buy Now |
|
Avnet Abacus
-
|
14,328
in stock
|
Buy Now |
|
Rutronik
from US$0.60
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.87
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.44
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.51
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.95
|
0
in stock
|
Buy Now |
|
EME
from US$0.60
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | Yes |
| Jack Height | 13.21mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.300/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.02mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MDJCK 6/6 RA LOPRO INVERTED | TTI Americas |
| Molex Cat 3 Mod Jack/Plug 438600002 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, R/A JACK, 6P6C, 1PORT, TH | Farnell |
| 6/6 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| Molex 43860-0002 RJ11 Connector | RS |
| Connector: RJ12 | TME |
| MODJACK RA LOPRO 50AU INV W/O SHIELD 6/6 | Heilind Americas |
| Modular Connector | Newark Electronics |
| MODULAR CONNECTOR | element14 |
| Conn Modular Jack Receptacle 6 POS 1.02mm Solder RA Through Hole 6 Terminal Single Port | Avnet Abacus |
| 6/6 Modular_Jack LowProfile INVERT | Rutronik |
| JACK, 6, BLACK GLASS-FILLED, HIGH-TEMPERATURE NYLON, GOLD, 0.62 IN., 0.52 IN. | RS Americas |
