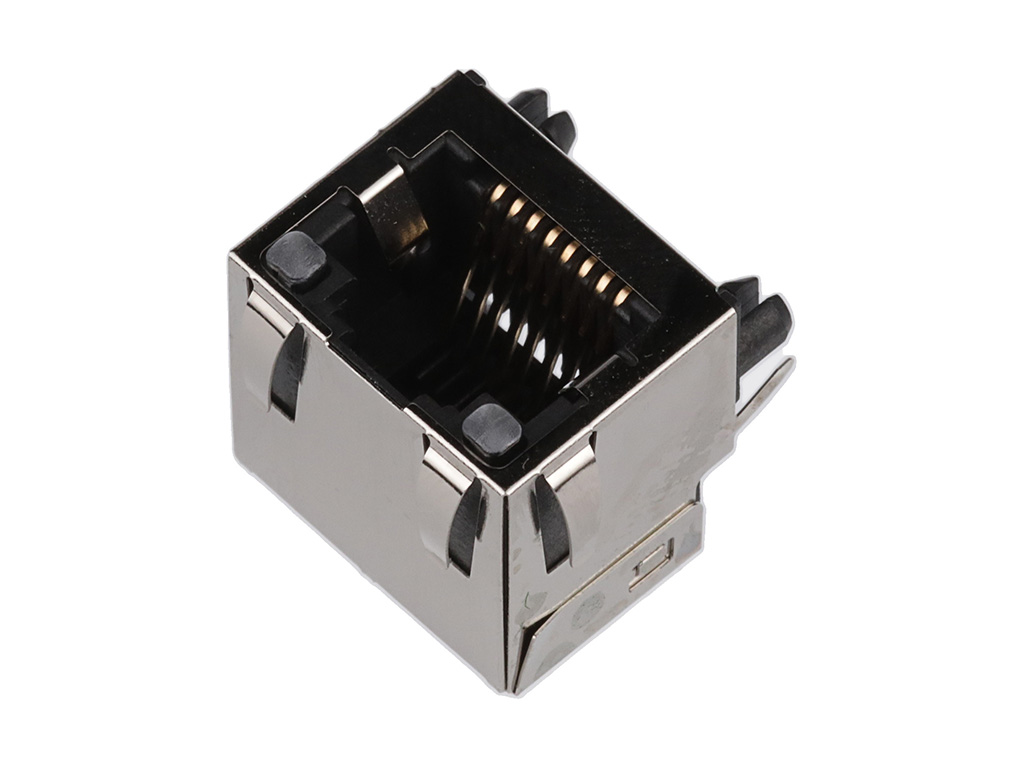

438600016 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, Inverted, Shielded, Offset Panel Grounding Tabs, Lightpipes, 8/8
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43860-0016,
0438600016 |
Where to Buy
Prices starting from US$1.76
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.24
|
5,592
in stock
|
Buy Now |
|
Farnell
from US$3.12
|
5,034
in stock
|
Buy Now |
|
Newark Electronics
from US$2.58
|
97
in stock
|
Buy Now |
|
element14
from US$2.41
|
97
in stock
|
Buy Now |
|
TME
from US$2.49
|
64
in stock
|
Buy Now |
|
RS
from US$3.71
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.24
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.57
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$2.18
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.24
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.76
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.46
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Panel | Offset Panel Ground Tabs |
| Shielded | Yes |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black, Clear |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | Yes |
| Jack Height | 13.54mm |
| Light Pipes Leds | Lightpipes |
| Material Metal | Brass, Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic, Polycarbonate |
| Net Weight | 3.920/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | With Flange |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.02mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Molex 438600016 LED JACK PREPRDOUCTI 438600016 Buchse Polzahl Sensoren 8P8C 1 St. | Conrad |
| MODULAR AND ETHERNET CONNECTORS | Farnell |
| Socket, Rj45, R/A, Led | Newark Electronics |
| SOCKET, RJ45, R/A, LED | element14 |
| Connector: RJ45 | TME |
| Molex 43860-0016 RJ45 Connector | RS |
| Conn RJ-45 F 8 POS 2.04mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat | Avnet America |
| R/A INV MDJK W/LTPIPES SHLD W/O2TABS 8/8 | RS Americas |
| 8/8 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| R/A INV MDJK W/LTPIPES SHLD W O2TABS 8/8 | Heilind Americas |
| MDJCK 8/8 RA LOPRO INVERTED | TTI Asia |
