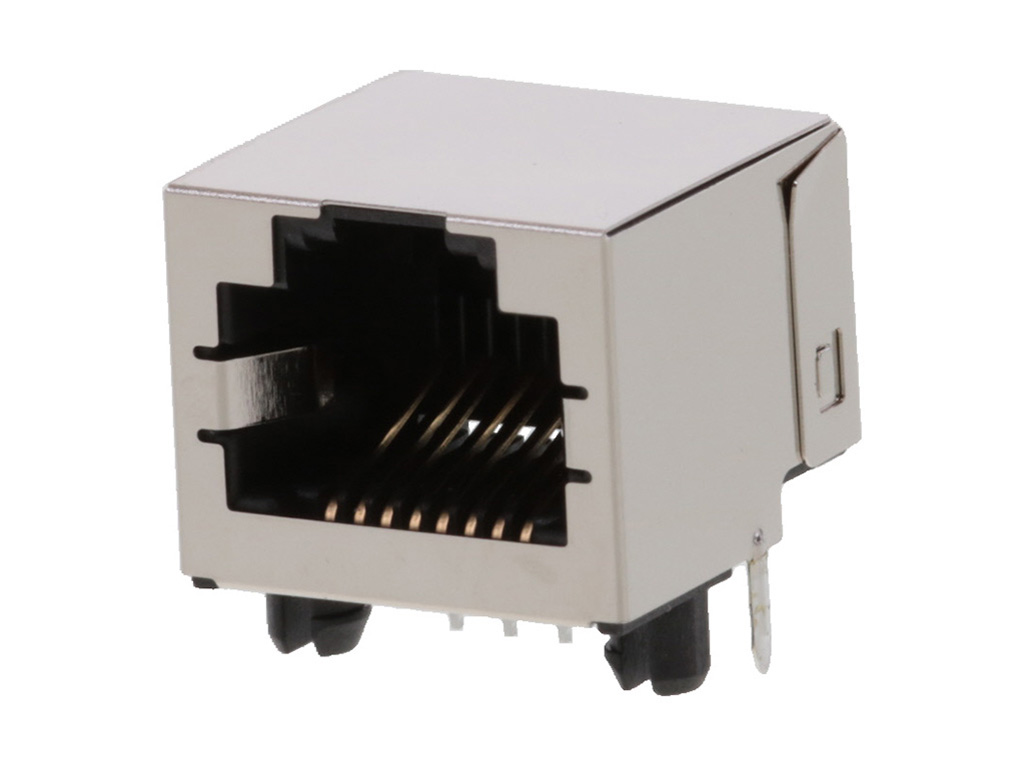

438600025 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, Inverted, Shielded, No Panel Grounding Tabs, 8/8, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43860-0025,
0438600025 |
Where to Buy
Prices starting from US$0.91
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.99
|
9,520
in stock
|
Buy Now |
|
Avnet America
from US$1.38
|
9,340
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.97
|
3,520
in stock
|
Buy Now |
|
Conrad
from US$2.78
|
2,399
in stock
|
Buy Now |
|
Farnell
from US$2.10
|
2,160
in stock
|
Buy Now |
|
Heilind Americas
from US$1.54
|
1,276
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.53
|
720
in stock
|
Buy Now |
|
Sager
from US$2.00
|
577
in stock
|
Buy Now |
|
RS
from US$3.33
|
471
in stock
|
Buy Now |
|
Newark Electronics
from US$1.83
|
323
in stock
|
Buy Now |
|
element14
from US$2.22
|
323
in stock
|
Buy Now |
|
TME
from US$2.05
|
84
in stock
|
Buy Now |
|
|
RS Americas
from US$0.91
|
3
in stock
|
Buy Now |
|
Avnet Abacus
-
|
18,720
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.63
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Panel | None |
| Shielded | Yes |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | Yes |
| Jack Height | 13.53mm |
| Light Pipes Leds | None |
| Material Metal | Brass, Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 3.780/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | With Flange |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.02mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MDJCK 8/8 RA LOPRO INVERTED | TTI Americas |
| Conn RJ45 Receptacle 8 POS 1.02mm Solder Right Angle Through Hole 8 Terminal Single Port | Avnet America |
| 8/8 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| Molex Cat 3 Mod Jack/Plug 438600025 Buchse Schwarz 1 St. | Conrad |
| MODULAR AND ETHERNET CONNECTORS | Farnell |
| MODJACK RA LOPRO 50AU INV W/S IELD 8/8 | Heilind Americas |
| Modular Connectors / Ethernet Connectors MDJCK 8/8 RA LOPRO INVERTED | Sager |
| Molex 43860-0025 RJ45 Connector | RS |
| Conn, Rj45, Jack, 1Port, 8P8C, Cat3 | Newark Electronics |
| CONN, RJ45, JACK, 1PORT, 8P8C, CAT3 | element14 |
| Connector: RJ45 | TME |
| JACK, MODULAR, RIGHT ANGLE, THROUGH HOLE, INVERTED, RJ45, 8 POS, 8 CNTS, NO GRND | RS Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 438600025?
Additional datasheets, footprints and schematics for 438600025 are listed on our Part Details page. You can also find images and similar parts to 438600025 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 438600025 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 438600025 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 438600025 fall under?
The 438600025 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 438600025 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 438600025 you can contact the distributor directly for product support, shipping queries etc.
Is the 438600025 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 438600025 have stock available?
Authorised distributors including TTI Americas, Avnet America, TTI Europe, Conrad and Farnell have stock available or on a lead time for 438600025.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 438600025 often in real-time on the comparison pages.
What if I can't find stock of 438600025?
You can fill out our help required form which you can use to request a quote for 438600025 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
