439151201 Mini-Fit Sr. by Molex

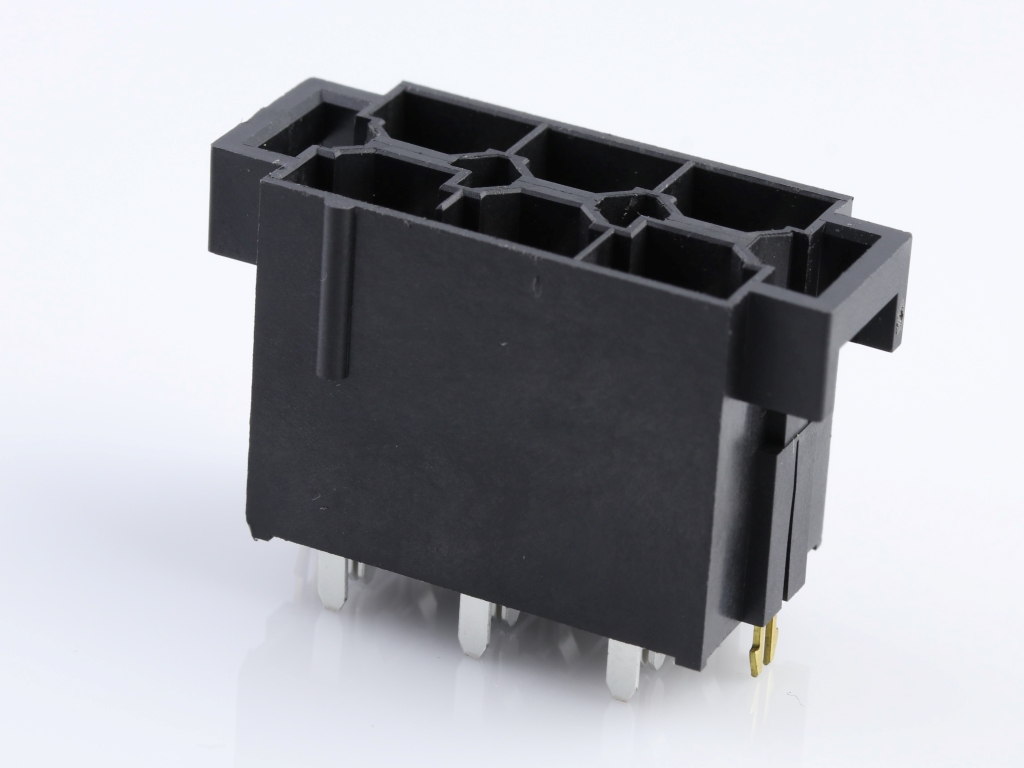

10.00mm Pitch Mini-Fit Sr. Header, Dual Row, Vertical, 1.57mm PCB Thickness, 0.76µm Gold (Au) Selective Plating, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43915-1201,
0439151201 |
Where to Buy
Prices starting from US$16.11
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$20.53
|
240
in stock
|
Buy Now |
|
TME
from US$20.52
|
240
in stock
|
Buy Now |
|
Conrad
from US$20.82
|
240
in stock
|
Buy Now |
|
Farnell
from US$27.63
|
217
in stock
|
Buy Now |
|
RS
from US$29.66
|
0
in stock
|
Buy Now |
|
Avnet America
from US$16.11
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$23.60
|
0
in stock
|
Buy Now |
|
Sager
from US$19.78
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$19.47
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$17.83
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Sr. |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 50.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 100 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 14.148/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 10.00mm |
| Pitch Termination Interface | 10.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Header Connector, pcb Mount, recept,6 Contacts, pin,0.394 Pitch, pc Tail Terminal, locking |Molex 43915-1201 | Newark Electronics |
| Connector: wire-board | TME |
| Molex Stiftgehäuse-Platine Polzahl Gesamt 6 Rastermaß: 10.00 mm 439151201 1 St. Tray | Conrad |
| CONN, HEADER, 6POS, 2ROW, 10MM, TH | Farnell |
| Molex 43915-1201 PCB Header | RS |
| Conn Wire to Board HDR 6 POS 10mm Solder ST Thru-Hole Tray | Avnet America |
| POWER CONN | RS Americas |
| Headers & Wire Housings MF Sr Hdr Assy DR 062 Vt 06 Ckt SGold | Sager |
| MF SR HDR ASSY DR 062 VT T SGOLD | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 439151201?
Additional datasheets, footprints and schematics for 439151201 are listed on our Part Details page. You can also find images and similar parts to 439151201 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 439151201 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 439151201 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 439151201 fall under?
The 439151201 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 439151201 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 439151201 you can contact the distributor directly for product support, shipping queries etc.
Is the 439151201 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 439151201 have stock available?
Authorised distributors including Newark Electronics, TME, Conrad, Farnell and RS have stock available or on a lead time for 439151201.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 439151201 often in real-time on the comparison pages.
What if I can't find stock of 439151201?
You can fill out our help required form which you can use to request a quote for 439151201 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
