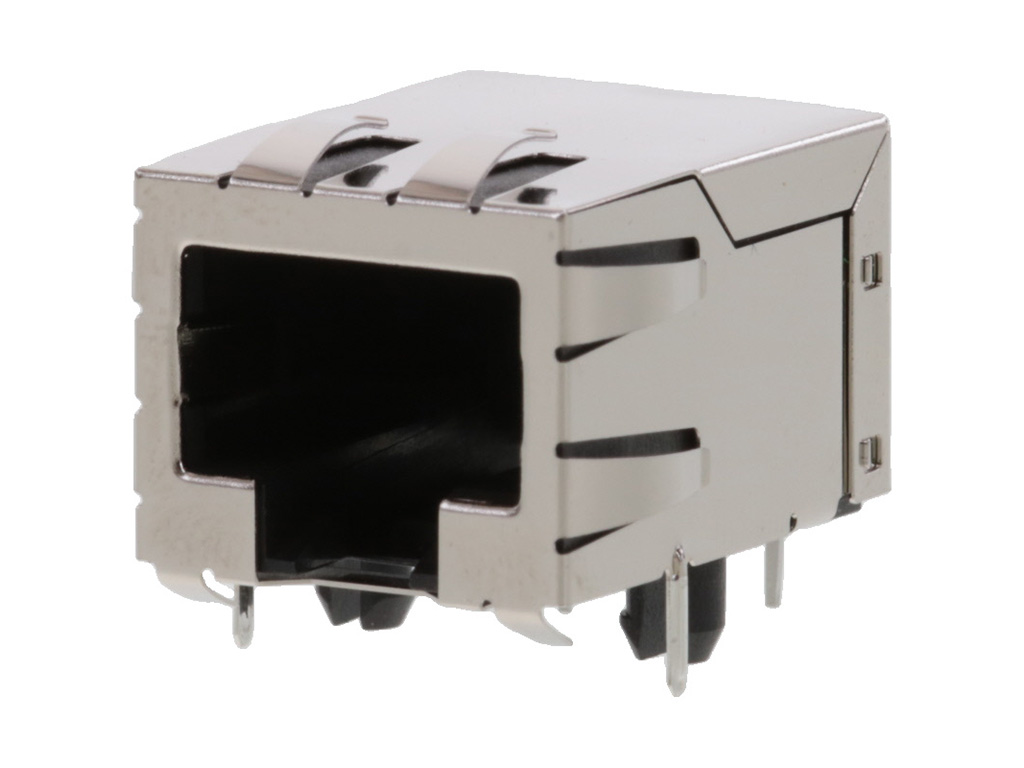

440500002 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, 8/8
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44050-0002,
0440500002 |
Where to Buy
Prices starting from US$4.24
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$6.28
|
19
in stock
|
Buy Now |
|
TME
from US$8.93
|
19
in stock
|
Buy Now |
|
Conrad
from US$7.19
|
19
in stock
|
Buy Now |
|
Farnell
from US$8.08
|
18
in stock
|
Buy Now |
|
Compona
from US$8.70
|
0
in stock
|
Buy Now |
|
element14
from US$8.38
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.24
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$6.70
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$10.42
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Panel | Location E, With All Panel Grounding Tab |
| Shielded | Yes |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 13.06mm |
| Light Pipes Leds | None |
| Material Metal | Brass, Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 5.267/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Phone Connector, pcb Mount,8 Contacts, pin, pc Tail Terminal, locking Mech |Molex 44050-0002 | Newark Electronics |
| Connector: RJ45 | TME |
| Molex Molex 440500002 CAT 5 SNGL JACK 440500002 Buchse Polzahl Sensoren 8P8C 1 St. | Conrad |
| MOD CONN, R/A RJ45 JACK, 8P8C, 1PORT, TH | Farnell |
| MOLEX 440500002 Socket Square RJ45 8p THT Modular Jack 90° | Compona |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, TH | element14 |
| MODJACK RA FLGLS CAT 5 THRHOL SHLD | Heilind Americas |
| MODJACK RA FLGLS CAT 5 THRHOLE | TTI Asia |
