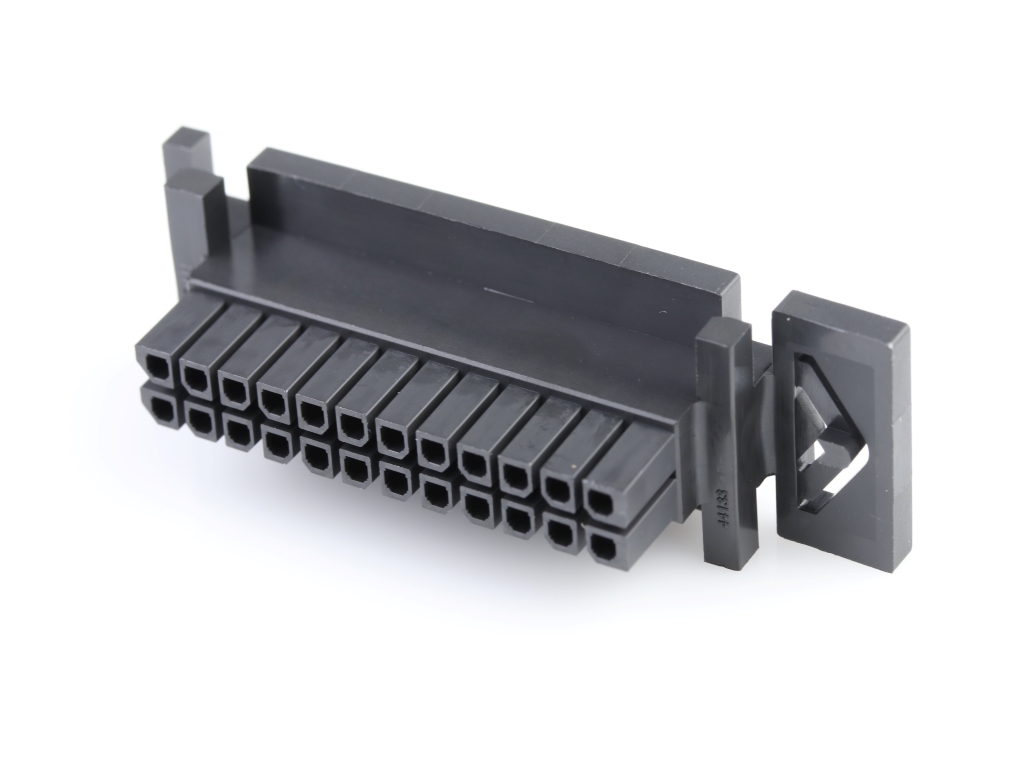

441332400 Micro-Fit BMI by Molex
Micro-Fit BMI Receptacle Housing, Dual Row, Panel Mount, 24 Circuits, Polyester, UL 94V-0
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44133-2400,
0441332400 |
Where to Buy
Prices starting from US$1.02
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.28
|
1,162
in stock
|
Buy Now |
|
Farnell
from US$1.88
|
1,046
in stock
|
Buy Now |
|
element14
from US$1.54
|
798
in stock
|
Buy Now |
|
Heilind Americas
from US$1.02
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.02
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$1.12
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit BMI |
|---|---|
| Application | Power, Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 24 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Resin | Polyester |
| Net Weight | 4.380/g |
| Number Of Rows | 2 |
| Panel Mount | Yes |
| Pitch Mating Interface | 3.00mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Plug & Socket Housing, Rcpt, Polyester | Newark Electronics |
| CONNECTORS | Farnell |
| CONN HOUSING, RECEPTACLE, 24POS, 3MM | element14 |
| MICROFIT 3.0 FLOATING RECEPTA LE 24 CKT | Heilind Americas |
| MICRO-FIT 3.0 BMI REC 02X12P | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 441332400?
Additional datasheets, footprints and schematics for 441332400 are listed on our Part Details page. You can also find images and similar parts to 441332400 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 441332400 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 441332400 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 441332400 fall under?
The 441332400 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 441332400 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 441332400 you can contact the distributor directly for product support, shipping queries etc.
Is the 441332400 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 441332400 have stock available?
Authorised distributors including Newark Electronics, Farnell, element14, Heilind Americas and Heilind Europe have stock available or on a lead time for 441332400.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 441332400 often in real-time on the comparison pages.
What if I can't find stock of 441332400?
You can fill out our help required form which you can use to request a quote for 441332400 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
