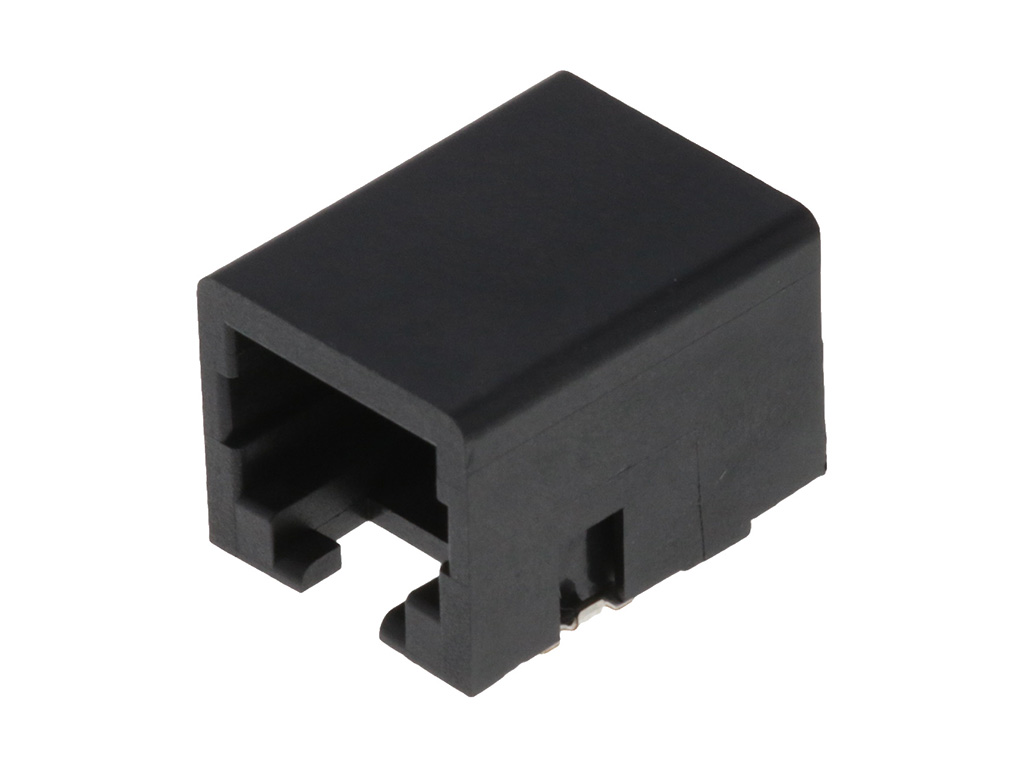

441440004 Modular Jack 6/4 by Molex
Modular Jack, Right-Angle, Low Profile, Surface Mount, 6/4, 1.27µm Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44144-0004,
0441440004 |
Where to Buy
Prices starting from US$0.87
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.60
|
3,030
in stock
|
Buy Now |
|
Conrad
from US$1.78
|
3,030
in stock
|
Buy Now |
|
TME
from US$1.70
|
3,000
in stock
|
Buy Now |
|
Farnell
from US$1.72
|
2,727
in stock
|
Buy Now |
|
RS
from US$2.41
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.87
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.54
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.65
|
0
in stock
|
Buy Now |
|
Sager
from US$1.02
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.04
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.39
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/4 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.73mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.253/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/4 |
| Temperature Range Operating | -40° to +70°C |
| Termination Interface Style | Surface Mount |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cat3 Rj11 Modular Jack, 6 Position, 1 Port | Newark Electronics |
| Molex Molex 441440004 SURF MNT W/FIT NAILS 441440004 Buchse Polzahl Sensoren 6P4C 1 St. | Conrad |
| 44144-0004 | TME |
| MOD CONN, R/A JACK, 6P4C, 1PORT, SMT | Farnell |
| Molex 44144-0004 Modular Jack | RS |
| 6/4CKT FLUSH SMT MOD JK 595PLT 441440004 | Avnet America |
| JACK, 4, PA POLYAMIDE (NYLON), HIGH TEMPERATURE, GLASS-FILLED, PHOSPHOR BRONZE | RS Americas |
| MOD JACK RT ANGLE LOW PRO | TTI Europe |
| Modular Connectors / Ethernet Connectors 6/4CKT FLUSH SMT MOD JK 595PLT 441440004 | Sager |
| 6/4CKT FLUSH SMT MOD JK 595PL 441440004 | Heilind Americas |
