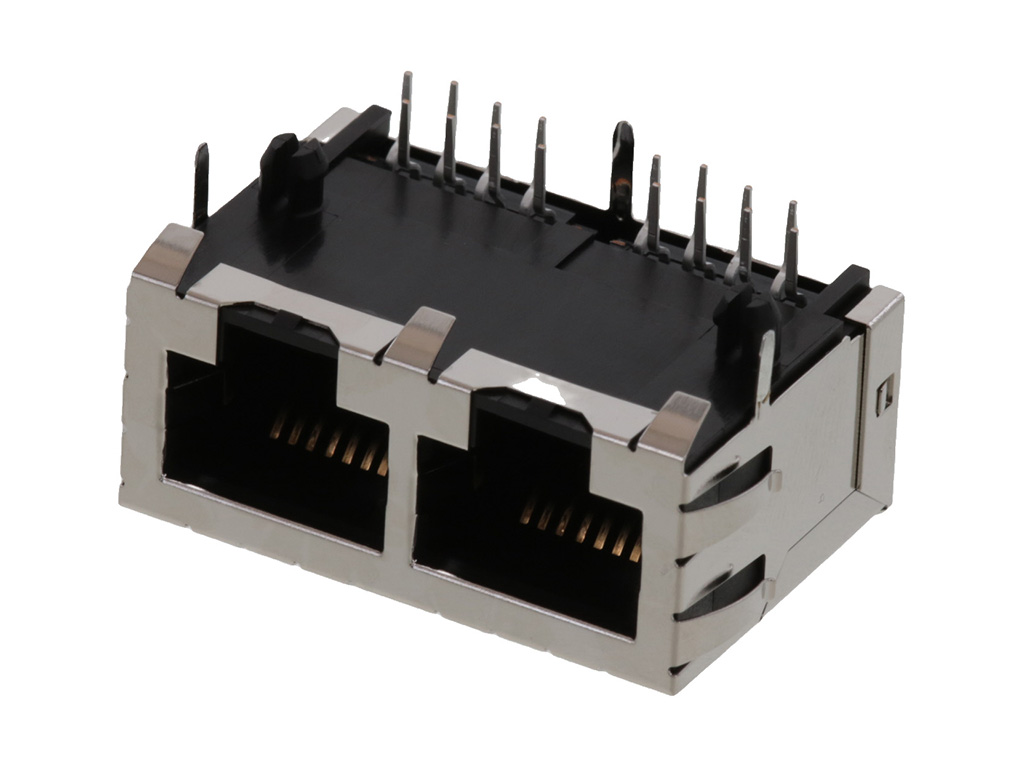

441500005 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, 8/8, 2 Ports
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44150-0005,
0441500005 |
Where to Buy
Prices starting from US$7.14
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$8.10
|
8
in stock
|
Buy Now |
|
Newark Electronics
from US$10.15
|
0
in stock
|
Buy Now |
|
RS Americas
from US$9.81
|
0
in stock
|
Buy Now |
|
Conrad
from US$17.30
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$7.14
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$15.89
|
0
in stock
|
Buy Now |
|
Farnell
from US$20.40
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | Yes |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 13.31mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 9.200/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x2 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MDJCK 8/8 RA LOPRO GANGED | TTI Americas |
| Rj45 Connector, Jack, 2Port, Cat5E | Newark Electronics |
| JACK, 8, PA POLYAMIDE (NYLON), GLASS-FILLED, PHOSPHOR BRONZE, 1.2 IN. | RS Americas |
| Molex Molex 441500005 CAT 5 GANGED JACK 441500005 1 St. | Conrad |
| MODJACK RA FLGLS CAT5 PTH 2PO T SHIELD | Heilind Americas |
| RJ45 CONNECTOR, JACK, 2PORT, CAT5E | Farnell |
